Kubota L4760GST vs Mahindra 5010

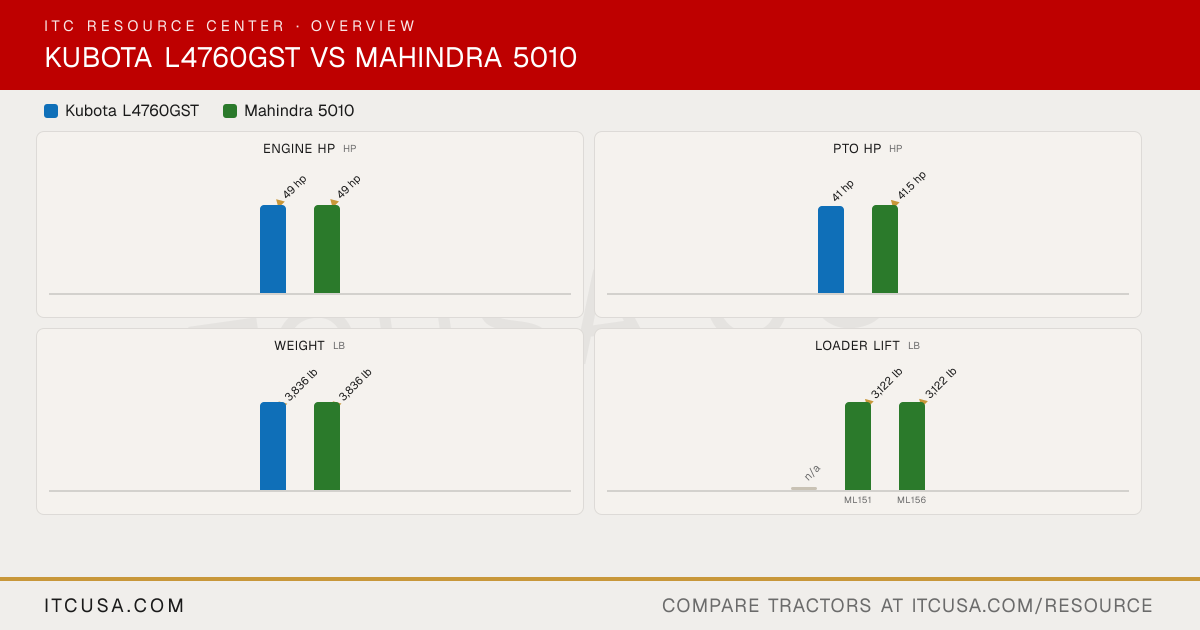

Across 6 measurable specs, this matchup is a dead heat: 2 categories to the Kubota L4760GST, 2 to the Mahindra 5010, 2 tied. Machine pages: Kubota L4760GST and Mahindra 5010.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4760GST	Mahindra5010

▶Engine
Engine Manufacturer	Kubota	Daedong
Engine Model	V2403-CR-E4-GL4	4B243LW
Engine Type	Naturally aspirated, multi-valve, liquid-cooled diesel	Indirect injection diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.6 in³
Rated Engine Speed	2700 rpm	2500 rpm
Engine Power (Gross)	49 hp	49 hp
PTO Power	41 hp	41.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry paper, dual element	Not Published
Fuel System	Electronic CRS (Common Rail System)	Indirect injection
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Tandem pump - gear type	Not Published
Implement Flow	9.8 gpm	9.5 gpm
Steering Flow	4.9 gpm	5 gpm
Total Hydraulic Flow	14.7 gpm	14.5 gpm (9.5 + 5, computed)
Overall Hydraulic Pump Flow	14.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	1
No. of Optional Remote Valves	Optional, up to 3: double-acting valve or float detent valve, any position	3
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	16 gal
Coolant Capacity	8.7 qt	Not Published
Crankcase Capacity	8.7 qt	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	8.9 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Independent
PTO Rear	540 rpm @ 2550 engine rpm	540 rpm @ 2600 rpm
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category I	CAT I with check chains (5010 4WD Gear); CAT I with check chains (5010 Gear Cab); CAT I with telescopic check chains (5010 HST Cab)
Hitch Lift Capacity	3,858 lb	3,314 lb
Hitch Lift Capacity (at 24”)	2,756 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Glide Shift	Constant mesh (5010 4WD Gear); constant mesh (5010 Gear Cab); HST, 3 ranges (5010 HST Cab)
No. of Speeds	12Fx8R	9F/3R (5010 4WD Gear); 9F/3R (5010 Gear Cab); infinite, 3 ranges (5010 HST Cab)
Max Travel Speed (Forward)	16.0 mph	15.3 mph (5010 4WD Gear); 15.3 mph (5010 Gear Cab); 17.7 mph (5010 HST Cab)
Max Travel Speed (Reverse)	15.2 mph	9.2 mph (5010 4WD Gear); 9.2 mph (5010 Gear Cab); 17.7 mph (5010 HST Cab)
Clutch	Not Published	Single plate, dry (5010 4WD Gear); single plate, dry (5010 Gear Cab); n/a (5010 HST Cab)
Differential Lock & Limited Slip Options	Rear differential lock, standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering, tilt
Brakes	Wet disc type, mechanically activated	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat with swivel; Air-Ride seat (optional)	Adjustable suspension seat
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	66.5 in	71.1 in (5010 4WD Gear); 71.5 in (5010 Gear Cab); 71.5 in (5010 HST Cab)
Wheelbase	74.6 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	11 ft
Height to Top of ROPS	97.6 in	101 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	98.4 in
Overall Length	129.5 in (with 3-point hitch)	134 in (with industrial tires)
▶Weight
Tractor Weight (Base)	3,836 lb	3,836 lb (5010 4WD Gear, operating weight); 4,078 lb (5010 Gear Cab, operating weight); 4,078 lb (5010 HST Cab, operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial	Ag, Industrial, Golf (turf)
R1 Agricultural - Front	8.3-16	9.5x16
R1 Agricultural - Rear	14.9-24	14.9x24
R3 Turf - Front	29x12.50-15	LSW305-521
R3 Turf - Rear	44x18-20	LSW570-648
R4 Industrial - Front	10-16.5	12x16.5
R4 Industrial - Rear	17.5L-24	16.9x24
▶Loader & Attachments
Quick Attach Loader System	2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional)	Not Published
Loader Model	Not Published	ML151 (5010 4WD Gear); ML156 (5010 Gear Cab, 5010 HST Cab)
Loader Lift Height	Not Published	ML151: 115.4 in; ML156: 115.4 in
Loader Lift Capacity (Full Height)	Not Published	ML151: 3,122 lb; ML156: 3,122 lb
Loader Breakout Force	Not Published	ML151: 5,225 lb; ML156: 5,225 lb
▶Warranty
Warranty Length & Coverage	Not Published	5-year limited warranty
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	None tagged yet

Find a Kubota dealer near you→Find a Mahindra dealer near you→

Kubota L4760GST vs Mahindra 5010: Quick Answers

Which has more horsepower, the Kubota L4760GST or the Mahindra 5010?

They are effectively tied: both machines are rated at 49 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L4760GST or the Mahindra 5010?

The Mahindra 5010 leads on pto hp at 41.5 hp hp, compared to 41 hp hp for the Kubota L4760GST.

Which is heavier, the Kubota L4760GST or the Mahindra 5010?

They are effectively tied: both machines are rated at 3,836 lb lb for weight.

Which has more three-point hitch lift capacity, the Kubota L4760GST or the Mahindra 5010?

The Mahindra 5010 leads on 3-pt lift (24 in) at 3,314 lb lb, compared to 2,756 lb lb for the Kubota L4760GST.
