Kubota L48 vs TYM T474C

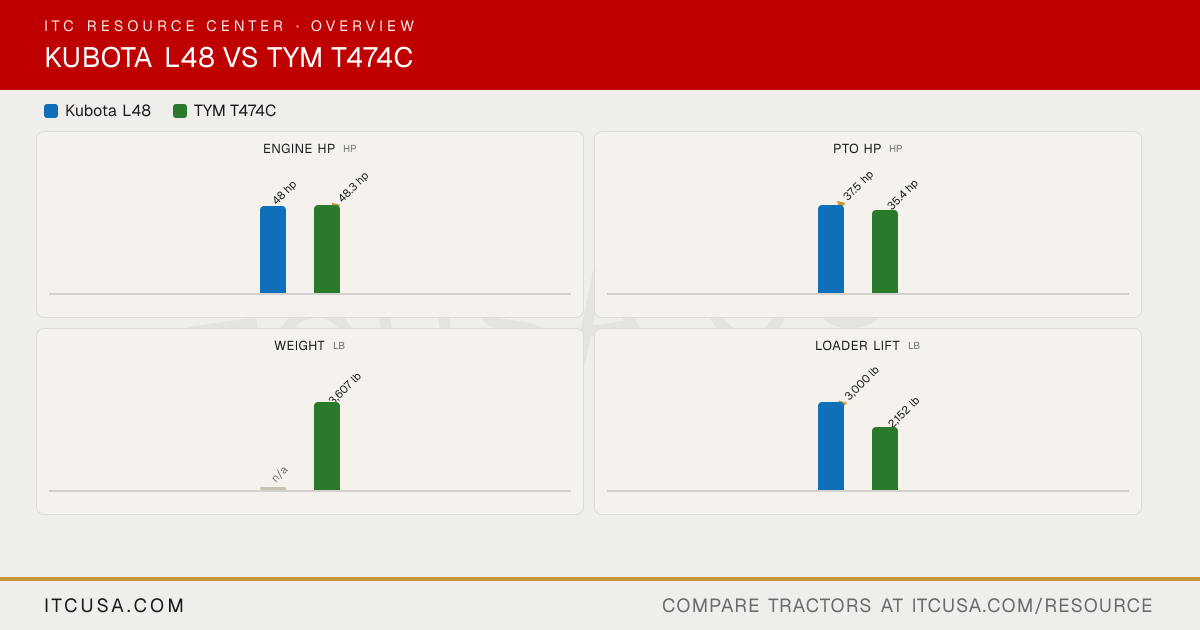

Across 8 measurable specs, the Kubota L48 leads 7 categories to 1. Machine pages: Kubota L48 and TYM T474C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL48	TYMT474C

▶Engine
Engine Manufacturer	Kubota	TYM
Engine Model	Not Published	T2300N2
Engine Type	4-cylinder, indirect injection, liquid-cooled diesel	4-cylinder, naturally aspirated diesel
No. of Cylinders	4	4
Displacement	148.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	48.3 hp
PTO Power	37.5 hp	35.4 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Single dry
Fuel System	Not Published	IDI
Alternator	Not Published	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	Not Published	7.7 gpm
Steering Flow	Not Published	4.2 gpm
Total Hydraulic Flow	25.9 gpm	11.9 gpm
Overall Hydraulic Pump Flow	25.9 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Not Published	Double rear remote with detent (accessory)
▶Fluid Capacity
Fuel Tank Capacity	13.2 gal	9.0 gal
Coolant Capacity	Not Published	6.9 qt
Crankcase Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	8.7 qt
▶PTO & Hitch
PTO Type	Live-continuous running	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (Mid-PTO kit accessory)
Category, 3-Point Hitch	Category I (standard)	Category I
Hitch Lift Capacity	Not Published	2,690 lb
Hitch Lift Capacity (at 24”)	3,310 lb	1,764 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	"Feather Step" hydrostatic transmission, 3-range	Mechanical
No. of Speeds	3-range (infinite)	12 forward / 12 reverse
Max Travel Speed (Forward)	15.3 mph	14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry, single	Dry single plate
Differential Lock & Limited Slip Options	Not Published	Differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Four-post ROPS/FOPS standard	Transmission case, clutch, clutch housing, engine and front axle support bolted together to form a rigid unit
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Movable seat, spins in place; tilt steering standard	Fore and aft sliding seat with cushion strength adjustment
Front Axle Type	Not Published	4WD center-pivot, reverse Elliott type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	74.5 in	54.5 in
Wheelbase	74.0 in	69.7 in
Ground Clearance	Not Published	12.8 in
Min. Turn Radius without Brakes	10.5 ft	117.5 in
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
Overall Length	Not Published	131 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	Not Published	3,607 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4,628 lb (3,607 + 1,021, computed; TX47 loader with bucket)
▶Tire Options
Tire Size & Options	Industrial (R4): 10-16.5 R4 front, 17.5L-24 R4 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Farm Specialist 8.0-16 NHS TL 6PR (standard); Farm Specialist 7-16 NHS TL 6PR (option)
R1 Agricultural - Rear	Not Published	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.5-15 NHS TL 4PR (standard); Multi-Trac CS 27x8.50-15 NHS TL 4PR (option)
R3 Turf - Rear	Not Published	12.5x20 (standard); Multi-Trac CS 41x14.00-20 NHS TL 4PR (option)
R4 Industrial - Front	10-16.5 R4	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	17.5L-24 R4	Xtra Grip 43x16.00-20 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	TX47: Quick attach mechanism
Loader Model	TL1150	TX47
Loader Lift Height	TL1150: 116.1 in (at pivot pin)	TX47: 105.6 in
Loader Lift Capacity (Full Height)	TL1150: 3,000 lb (at pivot pin)	TX47: 2,152 lb (at pivot pin)
Loader Breakout Force	TL1150: 4,375 lbf (at pivot pin)	TX47: 3,198 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Not Published	Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush.

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota L48 vs TYM T474C: Quick Answers

Which has more horsepower, the Kubota L48 or the TYM T474C?

The TYM T474C leads on engine hp at 48.3 hp hp, compared to 48 hp hp for the Kubota L48.

Which has more PTO horsepower, the Kubota L48 or the TYM T474C?

The Kubota L48 leads on pto hp at 37.5 hp hp, compared to 35.4 hp hp for the TYM T474C.

Which has more loader lift capacity, the Kubota L48 or the TYM T474C?

The Kubota L48 leads on loader lift at 3,000 lb lb, compared to 2,152 lb lb for the TYM T474C.

Which has more three-point hitch lift capacity, the Kubota L48 or the TYM T474C?

The Kubota L48 leads on 3-pt lift (24 in) at 3,310 lb lb, compared to 1,764 lb lb for the TYM T474C.
