Which has more horsepower, the Kubota L4802 or the TYM 4820C?

The Kubota L4802 leads on engine hp at 48.4 hp hp, compared to 48 hp hp for the TYM 4820C.

Which has more PTO horsepower, the Kubota L4802 or the TYM 4820C?

The Kubota L4802 leads on pto hp at 40.5 hp hp, compared to 38.4 hp hp for the TYM 4820C.

Which has more loader lift capacity, the Kubota L4802 or the TYM 4820C?

The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 1,675 lb lb for the Kubota L4802.

Which has more three-point hitch lift capacity, the Kubota L4802 or the TYM 4820C?

The TYM 4820C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,320 lb lb for the Kubota L4802.

Kubota L4802 vs TYM 4820C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM 4820C leads 5 categories to 2. Machine pages: Kubota L4802 and TYM 4820C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L4802	TYM 4820C
Engine HP (hp)	▲ 48.4 hp	48 hp
PTO HP (hp)	▲ 40.5 hp	38.4 hp
Loader Lift (lb)	1,675 lb	▲ 2,701 lb
3-Pt Lift (24 in) (lb)	2,320 lb	▲ 2,425 lb
Lift Height (in)	105.2 in	▲ 106.6 in
Breakout Force (lbf)	—	3,660 lbf
Hydraulic Flow (gpm)	12.5 gpm	▲ 16.5 gpm
Travel Speed (mph)	14.9 mph	▲ 19.5 mph

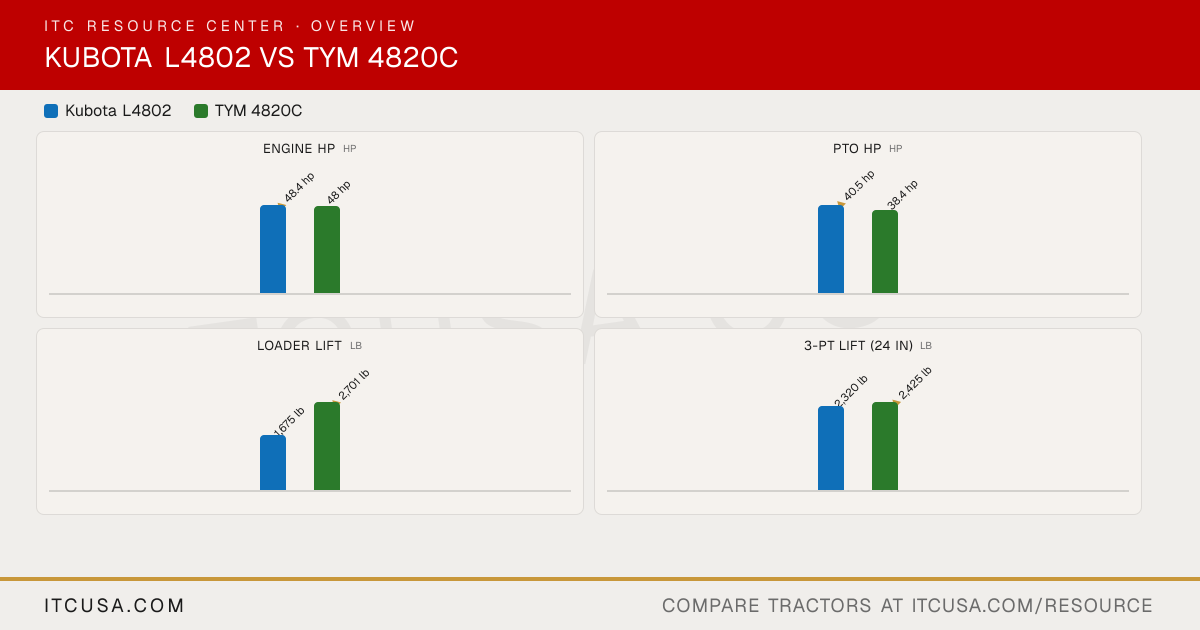

The headline numbers at a glance.

Kubota L4802TYM 4820C

Engine HPhp

▲48.4 hp

48 hp

PTO HPhp

▲40.5 hp

38.4 hp

Weightlb

—

Loader Liftlb

1,675 lb

▲2,701 lb

3-Pt Lift (24 in)lb

2,320 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802	TYM4820C


PTO Power	40.5 hp	38.4 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	4-cylinder, naturally aspirated diesel
Fuel System	Direct injection	IDI
Displacement	148.5 in³	139.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Kubota	TYM
Engine Power (Gross)	48.4 hp	48 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	4.7 gpm	5.2 gpm
Implement Flow	7.8 gpm	11.4 gpm
Total Hydraulic Flow	12.5 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.5 gpm	16.5 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	4 Port

PTO Rear	540 rpm	540/750 rpm
PTO Type	Live independent PTO with hydraulic clutch	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	2870 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity (at 24”)	2320 lb	2,425 lb

R3 Turf - Rear	DT (2WD/4WD), HST (4WD): 44X18-20; DTN (4WD): Not Applicable	41x14-20 / 44x18-20
R3 Turf - Front	DT (2WD): 27X8.50-15; DT (4WD), HST (4WD): 27X10.5-15; DTN (4WD): Not Applicable	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	DT (2WD), DTN (4WD): Not Applicable; DT (4WD), HST (4WD): 4.6 gal-24	17.5Lx24
R4 Industrial - Front	DT (2WD), DTN (4WD): Not Applicable; DT (4WD), HST (4WD): 10.0-16.5	12-16.5
R1 Agricultural - Rear	DT (2WD/4WD), HST (4WD): 14.9-24; DTN (4WD): 11.2-24	13.6-26
R1 Agricultural - Front	DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 8.3-16; DTN (4WD): 7.2-16	9.5-16

Coolant Capacity	Not Published	8.3 qt
Crankcase Capacity	Not Published	4.8 qt
Fuel Tank Capacity	13.5 gal	11.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	DT (2WD/4WD), HST (4WD): 105.2 in; DTN (4WD): Not Applicable	106.6 in
Loader Breakout Force	Not Published	3,660 lb
Quick Attach Loader System	DT (2WD/4WD), HST (4WD): LA766 2-Lever Quick Coupler; DTN (4WD): Not Applicable	BL200C: Quick attach mechanism
Loader Lift Capacity (Full Height)	DT (2WD/4WD), HST (4WD): 1675 lb; DTN (4WD): Not Applicable	2,701 lb

Clutch	DT (2WD/4WD), DTN (4WD): Dry type single stage; HST (4WD): Not Applicable	HST: Not Applicable; Gear: Dry single plate
No. of Speeds	DT (2WD/4WD), DTN (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	DT (2WD/4WD), DTN (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	DT (2WD/4WD): 14.9 mph; DTN (4WD): 12.9 mph; HST (4WD): 15.8 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	DT (2WD/4WD): 14.3 mph; DTN (4WD): 12.4 mph; HST (4WD): 14.2 mph	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock system

Brakes	Mechanical, wet disc type	Wet, multi disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Suspension seat

Wheelbase	72.6 in	71.1 in
Overall Width	DT (2WD/4WD), HST: 62.2 in; DTN (4WD): 53.7 in	64.9 in
Ground Clearance	DT (2WD/4WD), HST: 15.2 in; DTN (4WD): 11.6 in	15.5 in
Height to Top of ROPS	DTN (4WD): 94.9 in; DT (2WD/4WD), HST (4WD): 91.7 in	Not Applicable
Height to Top of Cab Model	Not Applicable	97.0 in
Height to Top of ROPS (folded)	DTN (4WD): 61.2 in	Not Applicable
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	DT (2WD): 122.8 in; DT (4WD), HST (4WD): 120.3 in; DTN (4WD): 117.7 in	127.4 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Kubota L4802 vs TYM 4820C: Quick Answers

Which has more horsepower, the Kubota L4802 or the TYM 4820C?: The Kubota L4802 leads on engine hp at 48.4 hp hp, compared to 48 hp hp for the TYM 4820C.
Which has more PTO horsepower, the Kubota L4802 or the TYM 4820C?: The Kubota L4802 leads on pto hp at 40.5 hp hp, compared to 38.4 hp hp for the TYM 4820C.
Which has more loader lift capacity, the Kubota L4802 or the TYM 4820C?: The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 1,675 lb lb for the Kubota L4802.
Which has more three-point hitch lift capacity, the Kubota L4802 or the TYM 4820C?: The TYM 4820C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,320 lb lb for the Kubota L4802.
