Kubota L4802DTN vs TYM T474C

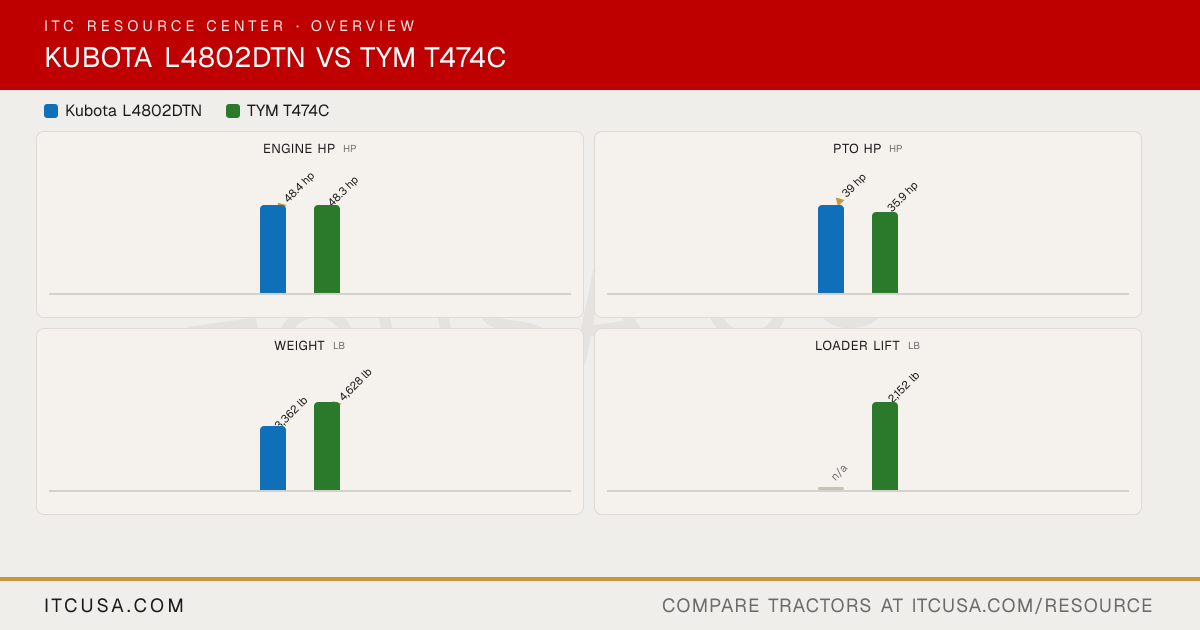

Across 6 measurable specs, the Kubota L4802DTN leads 4 categories to 2. Machine pages: Kubota L4802DTN and TYM T474C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802DTN	TYMT474C

▶Engine
Engine Manufacturer	Kubota	TYM
Engine Model	V2403-CR-E5	n/a
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	4-cylinder, naturally aspirated diesel
No. of Cylinders	4	4
Displacement	148.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.4 hp	48.3 hp
PTO Power	39 hp	35.9 hp
Engine Emissions Constraints	Not Published	Stage V
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry type, primary and secondary element	Single dry
Fuel System	Direct injection	IDI
Alternator	45 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	7.8 gpm	7.7 gpm
Steering Flow	4.7 gpm	4.2 gpm
Total Hydraulic Flow	12.5 gpm (7.8 + 4.7, computed)	11.9 gpm
Overall Hydraulic Pump Flow	12.5 gpm (7.8 + 4.7, computed)	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	9.0 gal
Coolant Capacity	6.9 qt	6.9 qt
Crankcase Capacity	8.7 qt	6.8 qt
Transmission / Hydraulic System Capacity	10.6 gal	8.5 gal
Front Axle Fluid Capacity	6.9 qt	8.7 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	2870 lb	2,689.6 lb
Hitch Lift Capacity (at 24”)	2320 lb	1,764 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Constant mesh with synchronized shuttle	Mechanical
No. of Speeds	8 forward, 8 reverse	F12 x R12
Max Travel Speed (Forward)	12.9 mph	14.9 mph
Max Travel Speed (Reverse)	12.4 mph	Not Published
Clutch	Dry type single stage	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Mechanical, wet disc type	Wet disc
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Not Published
Front Axle Type	Cast-iron front axle	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1430 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	117.7 in (without 3-point hitch)	131 in
Overall Width	53.7 in	54.5 in
Wheelbase	72.6 in	69.7 in
Ground Clearance	11.6 in	12.8 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	117.5 in
Height to Top of ROPS	91.7 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Applicable
Height to Top of Cab Model	Not Published	92.5 in
▶Weight
Tractor Weight (Base)	3362 lb	n/a
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	4,628 lb
▶Tire Options
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7.2-16	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 12.4-24 NHS TL 6PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.5-15 NHS TL 4PR
R3 Turf - Rear	Not Published	12.5x20
R4 Industrial - Front	Not Published	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	Not Published	Xtra Grip 43x16.00-20 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	TX47: Quick attachment (Skid/Euro type)
Loader Model	Not Published	n/a
Loader Lift Height	Not Published	105.6 in
Loader Lift Capacity (Full Height)	Not Published	2,152 lb
Loader Breakout Force	Not Published	3,198 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush.

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota L4802DTN vs TYM T474C: Quick Answers

Which has more horsepower, the Kubota L4802DTN or the TYM T474C?

The Kubota L4802DTN leads on engine hp at 48.4 hp hp, compared to 48.3 hp hp for the TYM T474C.

Which has more PTO horsepower, the Kubota L4802DTN or the TYM T474C?

The Kubota L4802DTN leads on pto hp at 39 hp hp, compared to 35.9 hp hp for the TYM T474C.

Which is heavier, the Kubota L4802DTN or the TYM T474C?

The TYM T474C leads on weight at 4,628 lb lb, compared to 3,362 lb lb for the Kubota L4802DTN.

Which has more three-point hitch lift capacity, the Kubota L4802DTN or the TYM T474C?

The Kubota L4802DTN leads on 3-pt lift (24 in) at 2,320 lb lb, compared to 1,764 lb lb for the TYM T474C.
