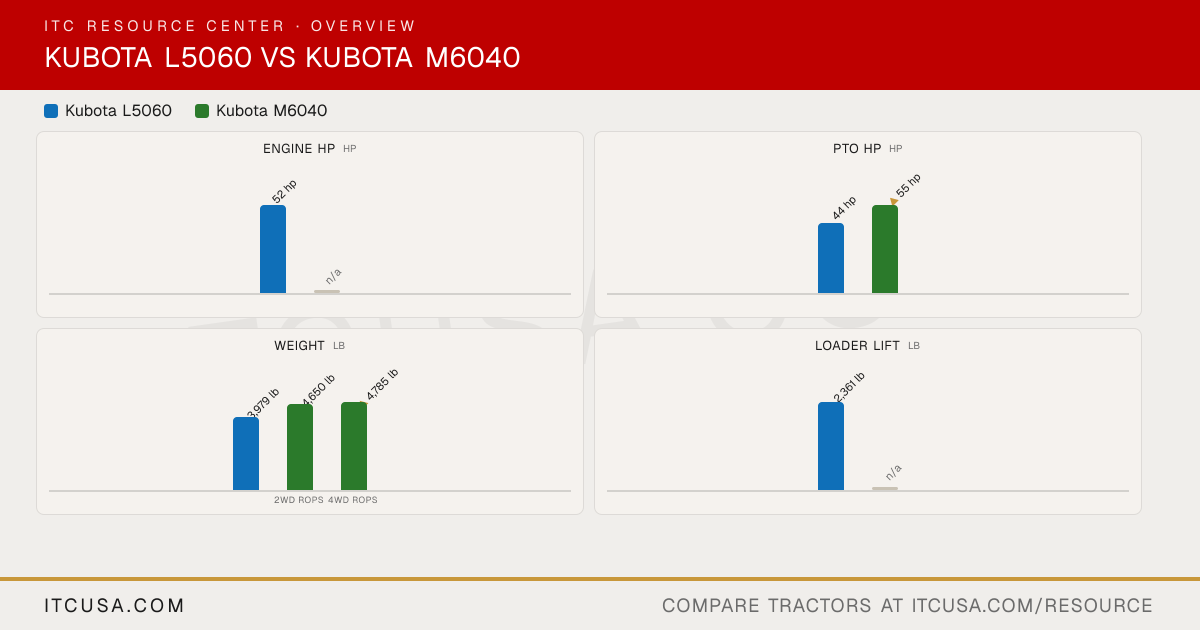

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V2403-CR-TE4-GL1 V3307-DI Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged 4-cylinder inline, direct injected diesel No. of Cylinders 4 4 Displacement 148.5 in³ 203 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 52 hp Not Published PTO Power 44 hp 55 hp Engine Emissions Constraints Tier 4 Tier 2 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element 8 in dry, dual element Fuel System Electronic Common Rail System (CRS) Direct injection Alternator 45 A, 12 V ROPS: 45 A, 12 V; Cab: 60 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Not Published Implement Flow 9.8 gpm 11.0 gpm Steering Flow 4.9 gpm 6.1 gpm Total Hydraulic Flow 14.7 gpm 17.1 gpm (11.0 + 6.1, computed) Overall Hydraulic Pump Flow 14.7 gpm 17 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.0 gpm No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) 2nd and 3rd optional ▶ Fluid CapacityFuel Tank Capacity 13.5 gal ROPS: 18.5 gal; Cab: 29.1 gal Coolant Capacity 8.7 qt 8.5 qt Crankcase Capacity 9.9 qt 11.6 qt Transmission / Hydraulic System Capacity 11.9 gal 10.6 gal Front Axle Fluid Capacity 8.9 qt 8.5 qt ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Live independent PTO, hydraulically operated wet clutch with PTO brake PTO Rear 540 rpm @ 2550 engine rpm 540 rpm Mid-PTO Availability Optional Not Published Category, 3-Point Hitch SAE Category I & II Category II Hitch Lift Capacity 3,858 lb 4189 lb Hitch Lift Capacity (at 24”) 2,976 lb 3307 lb Lift Control Type Position control Position, draft (top link sensing) and mix control ▶ Transmission & DrivetrainTransmission Type Glide Shift Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models No. of Speeds 12Fx8R 8F/8R (12F/12R with optional creep) Max Travel Speed (Forward) 16.5 mph 18 mph Max Travel Speed (Reverse) 15.8 mph 18.0 mph Clutch Dry type single stage Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle) Differential Lock & Limited Slip Options Rear differential lock, standard Rear differential lock (bevel gears) ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc type, mechanically activated Multiple wet disc, mechanical Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab) Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing 4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb 2200 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 135.0 in 2WD: 140.4 in; 4WD: 135.6 in Overall Width 67.3 in 73.2 in Wheelbase 75.4 in 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in Ground Clearance 15.4 in 15.4 in Min. Turn Radius without Brakes 9.2 ft (with brake applied) 2WD: 11.2 ft; 4WD: 11.8 ft Height to Top of ROPS 98.0 in 96.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 99.8 in ▶ WeightTractor Weight (Base) 3,979 lb 2WD ROPS: 4650 lb; 4WD ROPS: 4785 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear R1 Agricultural - Front 9.5-16 2WD: 7.50-16; 4WD: 9.5-24 R1 Agricultural - Rear 14.9-26; 13.6-28 16.9-28 R3 Turf - Front 29X12.50-15 2WD: 29x12.5-15 or 27x9.5-15 R3 Turf - Rear 44X18-20 2WD: 21.5L-16.1 or 16.9-24 R4 Industrial - Front 10-16.5 12.5/80-18 (4WD) R4 Industrial - Rear 17.5L-24 16.9-24 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) LA1153: two-lever quick coupler Loader Model LA1055 LA1153 Loader Lift Height 112.7 in LA1153 height position: 132.7 in; LA1153 power position: 117.2 in Loader Lift Capacity (Full Height) 2361 lb Not Published Loader Breakout Force 3171 lbf (19.7 in forward of pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Not Published
