Which has more horsepower, the Kubota L5460 or the Kubota M6060?

The Kubota M6060 leads on engine hp at 66.4 hp hp, compared to 56 hp hp for the Kubota L5460.

Which has more PTO horsepower, the Kubota L5460 or the Kubota M6060?

The Kubota M6060 leads on pto hp at 56 hp hp, compared to 46.5 hp hp for the Kubota L5460.

Which has more loader lift capacity, the Kubota L5460 or the Kubota M6060?

The Kubota M6060 leads on loader lift at 2,928 lb lb, compared to 2,361 lb lb for the Kubota L5460.

Which has more three-point hitch lift capacity, the Kubota L5460 or the Kubota M6060?

The Kubota M6060 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,976 lb lb for the Kubota L5460.

Kubota L5460 vs Kubota M6060

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Kubota M6060 leads 6 categories to 0. Machine pages: Kubota L5460 and Kubota M6060.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L5460	Kubota M6060
Engine HP (hp)	56 hp	▲ 66.4 hp
PTO HP (hp)	46.5 hp	▲ 56 hp
Loader Lift (lb)	2,361 lb	▲ 2,928 lb
3-Pt Lift (24 in) (lb)	2,976 lb	▲ 3,307 lb
Lift Height (in)	112.7 in	▲ 132.7 in
Breakout Force (lbf)	3,171 lbf	—
Hydraulic Flow (gpm)	14.1 gpm	▲ 17.1 gpm
Travel Speed (mph)	16.8 mph	—

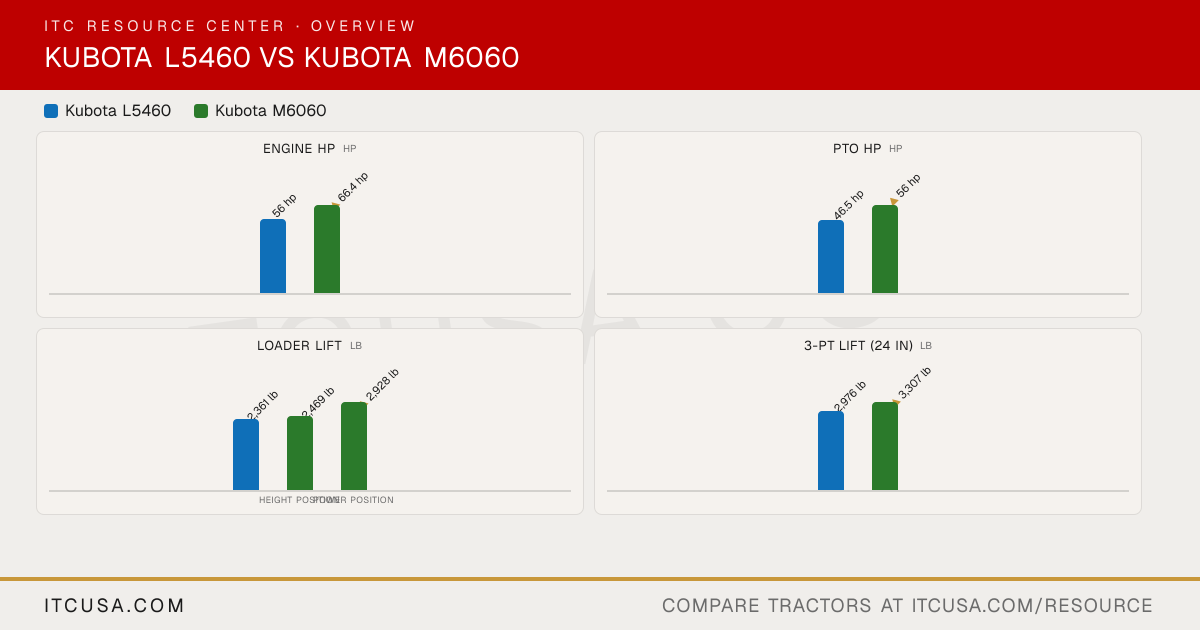

The headline numbers at a glance.

Kubota L5460Kubota M6060

Engine HPhp

56 hp

▲66.4 hp

PTO HPhp

46.5 hp

▲56 hp

Weightlb

—

Loader Liftlb

2,361 lb

2,469 lb

▲2,928 lb

Height positionPower position

3-Pt Lift (24 in)lb

2,976 lb

▲3,307 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL5460	KubotaM6060


PTO Power	46.5 hp	56 hp
Alternator	45 A, 12 V	45 A, 12 V
Air Cleaner	Dry paper, dual element	Not Published
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged	Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System	Electronic Common Rail System (CRS)	Common Rail System (CRS)
Displacement	148.5 in³	203.3 (3331)
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2400 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	56 hp	66.4 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Tandem pump - gear type	Gear
Steering Flow	4.7 gpm	6.1 gpm
Implement Flow	9.4 gpm	11.0 gpm
Total Hydraulic Flow	14.1 gpm	17.1 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	17.1 gpm
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	2nd, 3rd (optional)
No. of Standard Remote Valves	Not Published	1 (SCD)

PTO Rear	540 rpm @ 2400 engine rpm	540 rpm (540/540E optional)
PTO Type	Live independent (hydraulic clutch)	Live-independent PTO, electro-hydraulic clutch with brake
Lift Control Type	Position control	Position, Draft (Top Link Sensing) & Mixed Control
Hitch Lift Capacity	3,858 lb	Not Published
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category 1 & 2	I / II
Hitch Lift Capacity (at 24”)	2,976 lb	3307 lbs

R3 Turf - Rear	44X18-20	Not Published
R3 Turf - Front	29X12.50-15	Not Published
Tire Size & Options	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)	Standard tire size
R4 Industrial - Rear	4.6 gal-24	Not Published
R4 Industrial - Front	10-16.5	Not Published
R1 Agricultural - Rear	14.9-26; 13.6-28	16.9-28/14.9-28
R1 Agricultural - Front	9.5-16	HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24

Coolant Capacity	8.7 qt	Not Published
Crankcase Capacity	9.9 qt	Not Published
Fuel Tank Capacity	13.5 gal	ROPS: 18.5 gal; CAB: 23.8 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	11.9 gal	Not Published

Loader Lift Height	112.7 in	Height position: 132.7 in; Power position: 117.2 in
Loader Breakout Force	3171 lb (14107 N)	Not Published
Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	LA1154A: 2-Lever Quick Coupler
Loader Lift Capacity (Full Height)	2361 lb	Height position: 2469 lb; Power position: 2928 lb

Clutch	N/A	Multiple wet disc
No. of Speeds	3-range, 6 speeds (H-DS), infinitely variable in each	F8/R8
Transmission Type	Hydrostatic transmission	Hydraulic-shuttle transmission (fully synchronized)
Max Travel Speed (Forward)	16.8 mph	Not Published
Max Travel Speed (Reverse)	15.2 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, standard	HD/HDC (4WD): Rear differential lock standard (mechanical)

Brakes	Wet disc type, mechanically activated	Mechanical wet disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Drawbar Capacity	1,433 lbs.	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	75.4 in	HFC (2WD): 84.4 in; HD/HDC (4WD): 83.1 in
Overall Width	67.3 in	73.0 in
Ground Clearance	15.4 in	18.1 in
Height to Top of ROPS	HST (4WD): 98.0 in; HSTC (4WD, CAB): Not Applicable	HD (4WD): 96.9 in
Height to Top of Cab Model	HST (4WD): Not Applicable; HSTC (4WD, CAB): 92.5 in	HFC (2WD), HDC (4WD): 100.6 in
Height to Top of ROPS (folded)	HST (4WD): 92.5 in; HSTC (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	9.2 ft (2.8 m)	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD): 11.8 ft (3.6 m)
Overall Length with 3-Point Hitch	135.0 in	HFC (2WD): 142.7 in; HD/HDC (4WD): 138.0 in
