| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V2403-CR-E4-GL5 | V2403-CR-TE4 |
|---|
| Engine Type | Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged | 4-cylinder, turbocharged, common-rail diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.5 in³ | 148.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

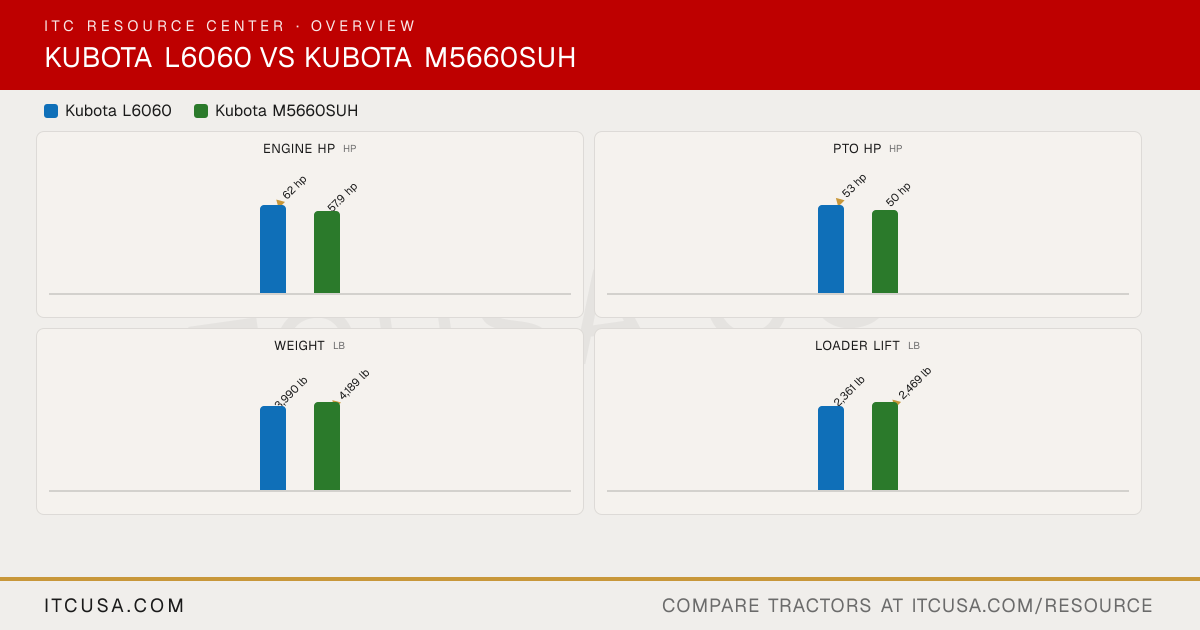

| Engine Power (Gross) | 62 hp | 58.7 hp |
|---|
| PTO Power | 53 hp | 50 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled, pressurized radiator with recovery tank |
|---|
| Air Cleaner | Dry paper, dual element | Dry paper dual element, 8 in diameter, pre-cleaner standard |
|---|
| Fuel System | Electronic Common Rail System (CRS) | Common rail direct injection |
|---|
| Alternator | 45 A, 12 V | 45 A |
|---|
|
|---|
| Pump Type | Tandem pump - gear type | Gear pump |
|---|
| Implement Flow | 9.4 gpm | 10.6 gpm |
|---|
| Steering Flow | 4.7 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 14.1 gpm | 16.5 gpm |
|---|
| Overall Hydraulic Pump Flow | 14.1 gpm | 16.5 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 (SCD) |
|---|
| No. of Optional Remote Valves | Optional, up to 3: double-acting valve or float detent valve, any position | 2 optional (3 maximum) |
|---|
|
|---|
| Fuel Tank Capacity | 13.5 gal | 17.2 gal |
|---|
| Coolant Capacity | 8.7 qt | 8.5 qt |
|---|
| Crankcase Capacity | 9.9 qt | 7.6 qt |
|---|
| Transmission / Hydraulic System Capacity | 11.9 gal | 50.7 qt |
|---|
| Front Axle Fluid Capacity | Not Published | No front axle oil, 2WD (M5660SUH); 6.9 qt front differential case plus 3.2 qt per bevel gear case (M5660SUHD) |
|---|
|
|---|
| PTO Type | Live independent (hydraulic clutch) | Hydraulic, independent PTO, self-modulating multi-plate wet clutch with brake |
|---|
| PTO Rear | 540 rpm @ 2400 engine rpm | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Optional | Not Published |
|---|
| Category, 3-Point Hitch | SAE Category I & II | Category I and II |
|---|
| Hitch Lift Capacity | 3,858 lb | 4,189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,976 lb | 3,307 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission | Fully synchronized 4-speed main gear shift with hi-lo range and hydraulic shuttle, 8F/8R |
|---|
| No. of Speeds | 3-range, 6 speeds (H-DS), infinitely variable in each | 8F/8R |
|---|
| Max Travel Speed (Forward) | 16.8 mph | 18.2 mph |
|---|
| Max Travel Speed (Reverse) | 15.2 mph | 18.6 mph |
|---|
| Clutch | Not Published | Multiple wet disc |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock, standard | Rear differential lock standard (mechanical) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc type, mechanically activated | Mechanical wet disc |
|---|
| Seat Suspension & Adjustability | Suspension seat with swivel function | Fully adjustable suspension seat with retractable seat belt |
|---|
| Front Axle Type | 4WD: Bevel gear front axle, non-adjustable tread spacing | M5660SUH: adjustable tubular-steel 2WD axle; M5660SUHD: cast-iron bevel-pinion drive, 55-degree turning angle, 4WD |
|---|
| Front Axle Rating | Not Published | 4,410 lb at 55.9 in tread spacing (M5660SUH); 5,290 lb at 55.9 in tread spacing (M5660SUHD) |
|---|
| Drawbar Capacity | 1,433 lb | 3,300 lb (maximum tongue weight) |
|---|
|
|---|
| Overall Width | 67.3 in | 72.8 in |
|---|
| Wheelbase | 75.4 in | 82 in (M5660SUH); 80.7 in (M5660SUHD) |
|---|
| Ground Clearance | 15.4 in | 16.3 in |
|---|
| Min. Turn Radius without Brakes | 9.2 ft (with brake applied) | 11.1 ft (M5660SUH); 12.8 ft (M5660SUHD) |
|---|
| Height to Top of ROPS | 98.0 in | 95.3 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | Not Published |
|---|
| Overall Length | 135.0 in (with 3-point hitch) | 138.7 in (M5660SUH); 136 in (M5660SUHD) |
|---|
|
|---|
| Tractor Weight (Base) | 3,990 lb | 4,189 lb (M5660SUH); 4,387 lb (M5660SUHD) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) | 2WD: 6.50-16, 7.5-16, 9.5L-15 fronts with 14.9-28 or 16.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1 and LSW; 4WD: 9.5-22 or 280/85R20 fronts with 14.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1; R4 12.5/80-18 / 16.9-24 |
|---|
| R1 Agricultural - Front | 9.5-16 | 9.5L-15 (M5660SUH); 9.5-22 (M5660SUHD) |
|---|
| R1 Agricultural - Rear | 14.9-26; 13.6-28 | 14.9-28 |
|---|
| R3 Turf - Front | 29X12.50-15 | 29x12.50-15 |
|---|
| R3 Turf - Rear | 44X18-20 | 21.5L-16.1 |
|---|
| R4 Industrial - Front | 10-16.5 | 12.5/80-18 (M5660SUHD) |
|---|
| R4 Industrial - Rear | 17.5L-24 | 16.9-24 (M5660SUHD) |
|---|
|
|---|
| Quick Attach Loader System | 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) | LA1154SU: 2-lever quick attach coupler standard |
|---|
| Loader Model | LA1055 | LA1154SU |
|---|
| Loader Lift Height | 112.7 in (at pivot pin) | LA1154SU: 130.9 in (height position); 115.7 in (power position) |
|---|
| Loader Lift Capacity (Full Height) | 2,361 lb (at pivot pin) | LA1154SU: 2,469 lb (height position); 2,928 lb (power position) |
|---|
| Loader Breakout Force | 3,171 lbf | LA1154SU: 4,230 lbf (height position); 5,354 lbf (power position) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage |
|---|
|
|---|
