Kubota L6060 vs Kubota M5700
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota L6060, 4 to the Kubota M5700. Machine pages: Kubota L6060 and Kubota M5700.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

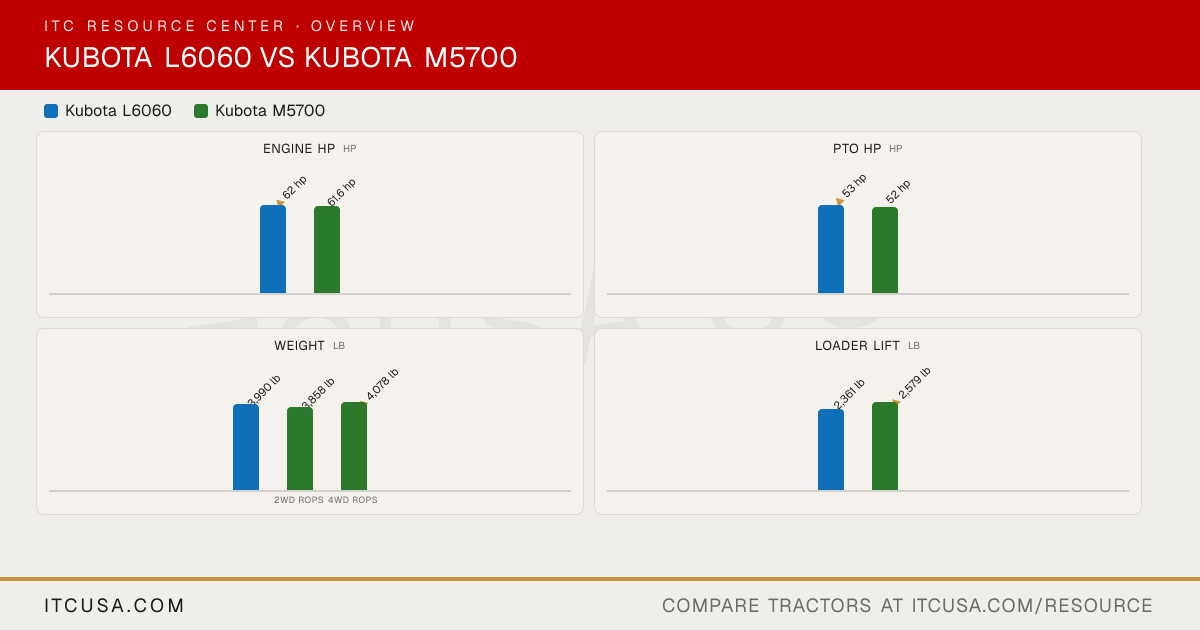

Category Verdict
| Spec | Kubota L6060 | Kubota M5700 |
|---|---|---|
| Engine HP (hp) | ▲ 62 hp | 61.6 hp |
| PTO HP (hp) | ▲ 53 hp | 52 hp |
| Weight (lb) | 3,990 lb | ▲ 4,078 lb |
| Loader Lift (lb) | 2,361 lb | ▲ 2,579 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,976 lb | 2,840 lb |
| Lift Height (in) | 112.7 in | ▲ 115.6 in |
| Breakout Force (lbf) | 3,171 lbf | ▲ 3,330 lbf |
| Hydraulic Flow (gpm) | ▲ 14.1 gpm | 11 gpm |
| Travel Speed (mph) | 16.8 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL6060 | KubotaM5700 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403-CR-E4-GL5 | F2803 |
| Engine Type | Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged | Diesel, 5-cylinder, liquid-cooled |
| No. of Cylinders | 4 | 5 |
| Displacement | 148.5 in³ | 167.5 in³ |
| Rated Engine Speed | 2600 rpm | 2800 rpm |
| Engine Power (Gross) | 62 hp | 61.6 hp |
| PTO Power | 53 hp | 52 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry paper, dual element | Two paper elements |
| Fuel System | Electronic Common Rail System (CRS) | Indirect injection |
| Alternator | 45 A, 12 V | Not Published |
Kubota L6060 vs Kubota M5700: Quick Answers
- Which has more horsepower, the Kubota L6060 or the Kubota M5700?
- The Kubota L6060 leads on engine hp at 62 hp hp, compared to 61.6 hp hp for the Kubota M5700.
- Which has more PTO horsepower, the Kubota L6060 or the Kubota M5700?
- The Kubota L6060 leads on pto hp at 53 hp hp, compared to 52 hp hp for the Kubota M5700.
- Which is heavier, the Kubota L6060 or the Kubota M5700?
- The Kubota M5700 leads on weight at 4,078 lb lb, compared to 3,990 lb lb for the Kubota L6060.
- Which has more loader lift capacity, the Kubota L6060 or the Kubota M5700?
- The Kubota M5700 leads on loader lift at 2,579 lb lb, compared to 2,361 lb lb for the Kubota L6060.
- Which has more three-point hitch lift capacity, the Kubota L6060 or the Kubota M5700?
- The Kubota L6060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,840 lb lb for the Kubota M5700.
