Kubota L6060HSTC vs Kubota M5660SUH

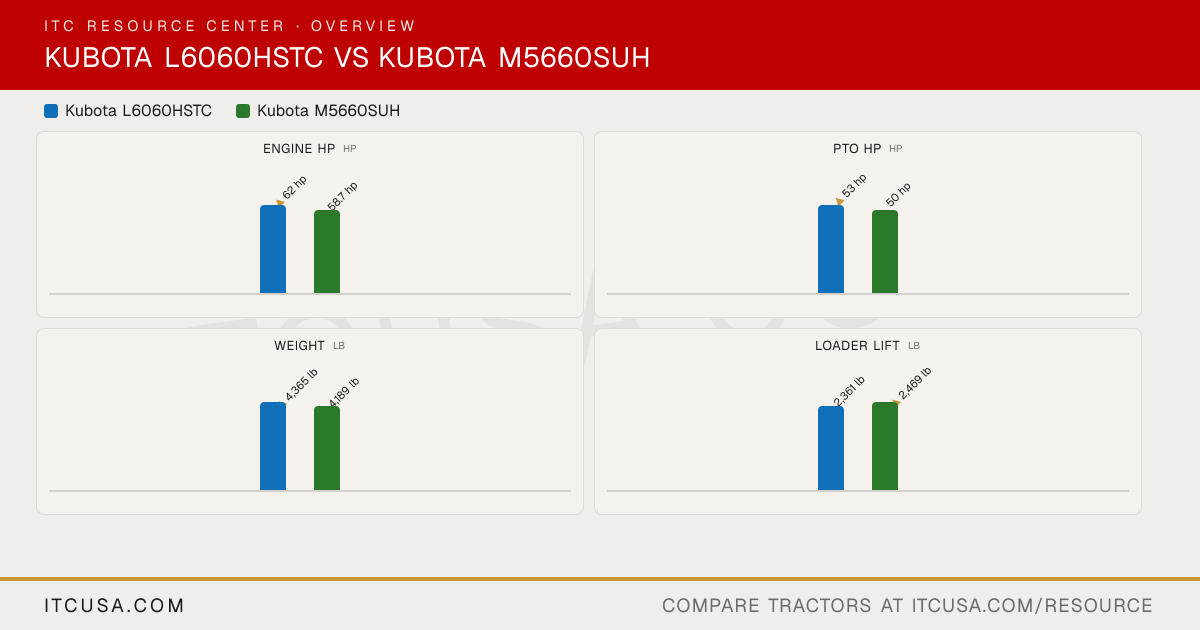

Across 9 measurable specs, the Kubota M5660SUH leads 6 categories to 3. Machine pages: Kubota L6060HSTC and Kubota M5660SUH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL6060HSTC	KubotaM5660SUH

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-GL6	V2403-CR-TE4
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged	4-cylinder, turbocharged, common-rail diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	62 hp	58.7 hp
PTO Power	53 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled, pressurized radiator with recovery tank
Air Cleaner	Dry paper, dual element	Dry paper dual element, 8 in diameter, pre-cleaner standard
Fuel System	Electronic Common Rail System (CRS)	Common rail direct injection
Alternator	60 A, 12 V	45 A
▶Hydraulics
Pump Type	Tandem pump - gear type	Gear pump
Implement Flow	9.4 gpm	10.6 gpm
Steering Flow	4.7 gpm	6.1 gpm
Total Hydraulic Flow	14.1 gpm	16.5 gpm
Overall Hydraulic Pump Flow	14.1 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1 (SCD)
No. of Optional Remote Valves	Optional, up to 3: double-acting valve or float detent valve, any position	2 optional (3 maximum)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	17.2 gal
Coolant Capacity	8.7 qt	8.5 qt
Crankcase Capacity	9.9 qt	7.6 qt
Transmission / Hydraulic System Capacity	11.9 gal	50.7 qt
Front Axle Fluid Capacity	Not Published	No front axle oil, 2WD (M5660SUH); 6.9 qt front differential case plus 3.2 qt per bevel gear case (M5660SUHD)
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Hydraulic, independent PTO, self-modulating multi-plate wet clutch with brake
PTO Rear	540 rpm @ 2400 engine rpm	540 rpm (540/540E optional)
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category I & II	Category I and II
Hitch Lift Capacity	3,858 lb	4,189 lb
Hitch Lift Capacity (at 24”)	2,976 lb	3,307 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Fully synchronized 4-speed main gear shift with hi-lo range and hydraulic shuttle, 8F/8R
No. of Speeds	3-range, 6 speeds (H-DS), infinitely variable in each	8F/8R
Max Travel Speed (Forward)	16.8 mph	18.2 mph
Max Travel Speed (Reverse)	15.2 mph	18.6 mph
Clutch	Not Published	Multiple wet disc
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Mechanical wet disc
Seat Suspension & Adjustability	Suspension seat with swivel function	Fully adjustable suspension seat with retractable seat belt
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	M5660SUH: adjustable tubular-steel 2WD axle; M5660SUHD: cast-iron bevel-pinion drive, 55-degree turning angle, 4WD
Front Axle Rating	Not Published	4,410 lb at 55.9 in tread spacing (M5660SUH); 5,290 lb at 55.9 in tread spacing (M5660SUHD)
Drawbar Capacity	1,433 lb	3,300 lb (maximum tongue weight)
▶Dimensions & Maneuverability
Overall Width	67.3 in	72.8 in
Wheelbase	75.4 in	82 in (M5660SUH); 80.7 in (M5660SUHD)
Ground Clearance	15.4 in	16.3 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	11.1 ft (M5660SUH); 12.8 ft (M5660SUHD)
Height to Top of ROPS	Not Applicable	95.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92.5 in	Not Published
Overall Length	135.0 in (with 3-point hitch)	138.7 in (M5660SUH); 136 in (M5660SUHD)
▶Weight
Tractor Weight (Base)	4,365 lb	4,189 lb (M5660SUH); 4,387 lb (M5660SUHD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)	2WD: 6.50-16, 7.5-16, 9.5L-15 fronts with 14.9-28 or 16.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1 and LSW; 4WD: 9.5-22 or 280/85R20 fronts with 14.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1; R4 12.5/80-18 / 16.9-24
R1 Agricultural - Front	9.5-16	9.5L-15 (M5660SUH); 9.5-22 (M5660SUHD)
R1 Agricultural - Rear	14.9-26; 13.6-28	14.9-28
R3 Turf - Front	29X12.50-15	29x12.50-15
R3 Turf - Rear	44X18-20	21.5L-16.1
R4 Industrial - Front	10-16.5	12.5/80-18 (M5660SUHD)
R4 Industrial - Rear	17.5L-24	16.9-24 (M5660SUHD)
▶Loader & Attachments
Quick Attach Loader System	2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional)	LA1154SU: 2-lever quick attach coupler standard
Loader Model	LA1055	LA1154SU
Loader Lift Height	112.7 in (at pivot pin)	LA1154SU: 130.9 in (height position); 115.7 in (power position)
Loader Lift Capacity (Full Height)	2,361 lb (at pivot pin)	LA1154SU: 2,469 lb (height position); 2,928 lb (power position)
Loader Breakout Force	3,171 lbf	LA1154SU: 4,230 lbf (height position); 5,354 lbf (power position)
▶Warranty
Warranty Length & Coverage	Not Published	Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	None tagged yet

Find a Kubota dealer near you→

Kubota L6060HSTC vs Kubota M5660SUH: Quick Answers

Which has more horsepower, the Kubota L6060HSTC or the Kubota M5660SUH?

The Kubota L6060HSTC leads on engine hp at 62 hp hp, compared to 58.7 hp hp for the Kubota M5660SUH.

Which has more PTO horsepower, the Kubota L6060HSTC or the Kubota M5660SUH?

The Kubota L6060HSTC leads on pto hp at 53 hp hp, compared to 50 hp hp for the Kubota M5660SUH.

Which is heavier, the Kubota L6060HSTC or the Kubota M5660SUH?

The Kubota L6060HSTC leads on weight at 4,365 lb lb, compared to 4,189 lb lb for the Kubota M5660SUH.

Which has more loader lift capacity, the Kubota L6060HSTC or the Kubota M5660SUH?

The Kubota M5660SUH leads on loader lift at 2,469 lb lb, compared to 2,361 lb lb for the Kubota L6060HSTC.

Which has more three-point hitch lift capacity, the Kubota L6060HSTC or the Kubota M5660SUH?

The Kubota M5660SUH leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,976 lb lb for the Kubota L6060HSTC.
