| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V2403-CR-E4-GL6 | V3307-DI |
|---|
| Engine Type | Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged | 4-cylinder inline, direct injected diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.5 in³ | 203 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

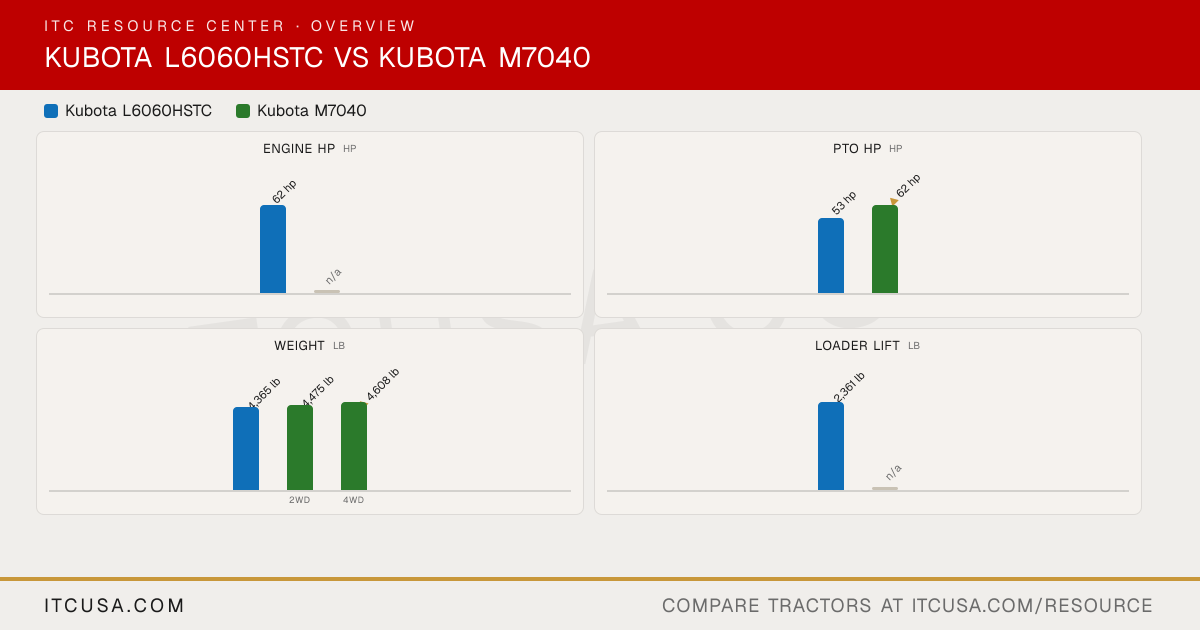

| Engine Power (Gross) | 62 hp | Not Published |
|---|
| PTO Power | 53 hp | 62 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 2 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry paper, dual element | 8 in dry, dual element |
|---|
| Fuel System | Electronic Common Rail System (CRS) | Direct injection |
|---|
| Alternator | 60 A, 12 V | ROPS: 45 A, 12 V; Cab: 60 A, 12 V |
|---|
|
|---|
| Pump Type | Tandem pump - gear type | Not Published |
|---|
| Implement Flow | 9.4 gpm | 11.0 gpm |
|---|
| Steering Flow | 4.7 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 14.1 gpm | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Overall Hydraulic Pump Flow | 14.1 gpm | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 11.0 gpm |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
| No. of Optional Remote Valves | Optional, up to 3: double-acting valve or float detent valve, any position | 2nd and 3rd optional |
|---|
|
|---|
| Fuel Tank Capacity | 13.5 gal | ROPS: 18.5 gal; Cab: 29.1 gal |
|---|
| Coolant Capacity | 8.7 qt | 8.5 qt |
|---|
| Crankcase Capacity | 9.9 qt | 11.6 qt |
|---|
| Transmission / Hydraulic System Capacity | 11.9 gal | 59.2 qt |
|---|
| Front Axle Fluid Capacity | Not Published | Front differential case: 5.8 qt; front axle gear case: 3.7 qt |
|---|
|
|---|
| PTO Type | Live independent (hydraulic clutch) | Live, independent PTO, hydraulically operated wet clutch with PTO brake |
|---|
| PTO Rear | 540 rpm @ 2400 engine rpm | 540 rpm |
|---|
| Mid-PTO Availability | Optional | Not Published |
|---|
| Category, 3-Point Hitch | SAE Category I & II | Category I and II |
|---|
| Hitch Lift Capacity | 3,858 lb | 4,189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,976 lb | 3,307 lb |
|---|
| Lift Control Type | Position control | Position, draft (top link sensing) and mix control |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models |
|---|
| No. of Speeds | 3-range, 6 speeds (H-DS), infinitely variable in each | 8F/8R (12F/12R with optional creep) |
|---|
| Max Travel Speed (Forward) | 16.8 mph | 18.5 mph |
|---|
| Max Travel Speed (Reverse) | 15.2 mph | Not Published |
|---|
| Clutch | Not Published | Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle) |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock, standard | Rear differential lock (bevel gears) |
|---|
|
|---|
| Frame Type | Not Published | Two-post ROPS (canopy optional); Ultra Grand Cab optional |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc type, mechanically activated | Mechanically operated wet disc brakes |
|---|
| Seat Suspension & Adjustability | Suspension seat with swivel function | Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab) |
|---|
| Front Axle Type | 4WD: Bevel gear front axle, non-adjustable tread spacing | 4WD: bevel-gear type, on-the-go engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 1,433 lb | 2,200 lb |
|---|
|
|---|
| Overall Width | 67.3 in | 73.2 in |
|---|
| Wheelbase | 75.4 in | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in |
|---|
| Ground Clearance | 15.4 in | 16.3 in |
|---|
| Min. Turn Radius without Brakes | 9.2 ft (with brake applied) | 2WD: 11.2 ft; 4WD: 11.8 ft |
|---|
| Height to Top of ROPS | Not Applicable | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 92.5 in | 100.2 in |
|---|
| Overall Length | 135.0 in (with 3-point hitch) | 2WD: 140.4 in; 4WD: 135.6 in |
|---|
|
|---|
| Tractor Weight (Base) | 4,365 lb | 2WD: 4,475 lb; 4WD: 4,608 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) | Standard: 7.5-16 (2WD) or 9.5-24 (4WD) front, 16.9-30 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | 2WD: 7.5-16; 4WD: 9.5-24 |
|---|
| R1 Agricultural - Rear | 14.9-26; 13.6-28 | 16.9-30 |
|---|
| R3 Turf - Front | 29X12.50-15 | 29x12.5-15 or 27x9.5-15 |
|---|
| R3 Turf - Rear | 44X18-20 | 18.4-26 or 21.5L-16.1 |
|---|
| R4 Industrial - Front | 10-16.5 | 14-17.5L (4WD) |
|---|
| R4 Industrial - Rear | 17.5L-24 | 16.9-24 (4WD) |
|---|
|
|---|
| Quick Attach Loader System | 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) | LA1153: two-lever quick coupler |
|---|
| Loader Model | LA1055 | LA1153 |
|---|
| Loader Lift Height | 112.7 in (at pivot pin) | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in |
|---|
| Loader Lift Capacity (Full Height) | 2,361 lb (at pivot pin) | Not Published |
|---|
| Loader Breakout Force | 3,171 lbf | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
