Across 8 measurable specs, the Kubota L6070 leads 5 categories to 3. Machine pages: Kubota L6070 and Kubota M5700.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kubota L6070 | Kubota M5700 |
|---|
| Engine HP (hp) | 60 hp | ▲ 61.6 hp |
| PTO HP (hp) | ▲ 53 hp | 52 hp |
| Weight (lb) | ▲ 4,387 lb | 4,078 lb |
| Loader Lift (lb) | 2,471 lb | ▲ 2,579 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,976 lb | 2,840 lb |
| Lift Height (in) | ▲ 117 in | 115.6 in |
| Breakout Force (lbf) | ▲ 4,069 lbf | 3,330 lbf |
| Hydraulic Flow (gpm) | 9.8 gpm | ▲ 11 gpm |
| Travel Speed (mph) | 18.5 mph | n/a |

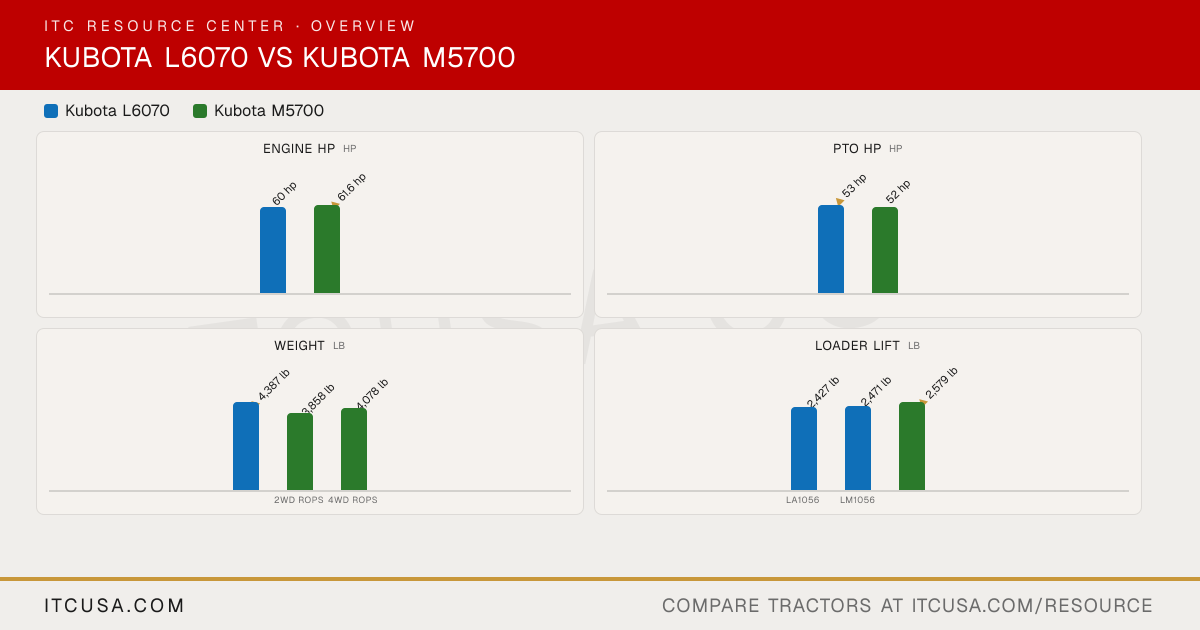

The headline numbers at a glance.
Kubota L6070Kubota M5700
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
▲4,387 lb
3,858 lb
4,078 lb
2WD ROPS4WD ROPS
Loader Liftlb
2,427 lb
2,471 lb
▲2,579 lb
LA1056LM1056
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL6070 | KubotaM5700 |
|---|
|
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V2403-CR-TIE5 | F2803 |
|---|
| Engine Type | Direct injection, water-cooled, 4-cycle diesel, common rail system, turbocharged and intercooled | Diesel, 5-cylinder, liquid-cooled |
|---|
| No. of Cylinders | 4 | 5 |
|---|
| Displacement | 148.5 in³ | 167.5 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2800 rpm |
|---|
| Engine Power (Gross) | 60 hp | 61.6 hp |
|---|
| PTO Power | 53 hp | 52 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Two paper elements |
|---|
| Fuel System | Common rail direct injection | Indirect injection |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 9.83 gpm | 11 gpm |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 to 3 |
|---|
| No. of Optional Remote Valves | Up to 3 (optional) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | ROPS: 17.2 gal; Cab: 25.1 gal |
|---|
| Coolant Capacity | Not Published | 8.5 qt |
|---|
| Crankcase Capacity | Not Published | 8.5 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 13.7 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I and II | Category II/I |
|---|
| Hitch Lift Capacity | 3858 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2976 lb | 2840 lb (as tested; advertised 3310 lb) |
|---|
| Lift Control Type | Not Published | Position control and top-link draft sensing |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission, 3-range, with Hydro-Dual Speed (H-DS) | 8-speed synchronized shuttle |
|---|
| No. of Speeds | 3-range | 8F/8R |
|---|
| Max Travel Speed (Forward) | 18.5 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Two-post folding ROPS; cab optional | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Wet disc type | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 133.9 in (w/o 3P) (without 3-point hitch) | 2WD ROPS: 137.6 in; 4WD ROPS: 134.1 in; 2WD cab: 140.6 in; 4WD cab: 137 in |
|---|
| Overall Width | 67.3 in | 72.8 in (minimum) |
|---|
| Wheelbase | 81.3 in | ROPS: 78.7 in; Cab: 81.7 in |
|---|
| Ground Clearance | 15.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 9.5 ft (w/brake) (with brake applied) | Not Published |
|---|
| Height to Top of ROPS | 98.0 in | 93.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 93.3 in | 99.0 in |
|---|
|
|---|
| Tractor Weight (Base) | 4387 lb (ROPS); 4762 lb (cab) | 2WD ROPS: 3858 lb; 4WD ROPS: 4078 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard: 9.5-16 front, 14.9-26 rear | 2WD: 7.50-16 front; 4WD: 9.5-22 front; 16.9-28 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | 2WD: 7.50-16; 4WD: 9.5-22 |
|---|
| R1 Agricultural - Rear | 14.9-26 | 16.9-28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | LA1056, LM1056: toolless loader removal with integrated parking stands; optional third-function valve | Not Published |
|---|
| Loader Model | LA1056; LM1056 | LA1002 |
|---|
| Loader Lift Height | LA1056: 117 in; LM1056: 117 in | LA1002: 115.6 in |
|---|
| Loader Lift Capacity (Full Height) | LA1056: 2427 lb; LM1056: 2471 lb | LA1002: 2579 lb |
|---|
| Loader Breakout Force | LA1056: 4069 lbf; LM1056: 4061 lbf | LA1002: 3330 lbf |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Kubota L6070 vs Kubota M5700: Quick Answers
- Which has more horsepower, the Kubota L6070 or the Kubota M5700?
- The Kubota M5700 leads on engine hp at 61.6 hp hp, compared to 60 hp hp for the Kubota L6070.
- Which has more PTO horsepower, the Kubota L6070 or the Kubota M5700?
- The Kubota L6070 leads on pto hp at 53 hp hp, compared to 52 hp hp for the Kubota M5700.
- Which is heavier, the Kubota L6070 or the Kubota M5700?
- The Kubota L6070 leads on weight at 4,387 lb lb, compared to 4,078 lb lb for the Kubota M5700.
- Which has more loader lift capacity, the Kubota L6070 or the Kubota M5700?
- The Kubota M5700 leads on loader lift at 2,579 lb lb, compared to 2,471 lb lb for the Kubota L6070.
- Which has more three-point hitch lift capacity, the Kubota L6070 or the Kubota M5700?
- The Kubota L6070 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,840 lb lb for the Kubota M5700.
