| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V2403-CR-TIE5 | V3307-DI |
|---|
| Engine Type | Direct injection, water-cooled, 4-cycle diesel, common rail system, turbocharged and intercooled | 4-cylinder inline, direct injected diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.5 in³ | 203 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|

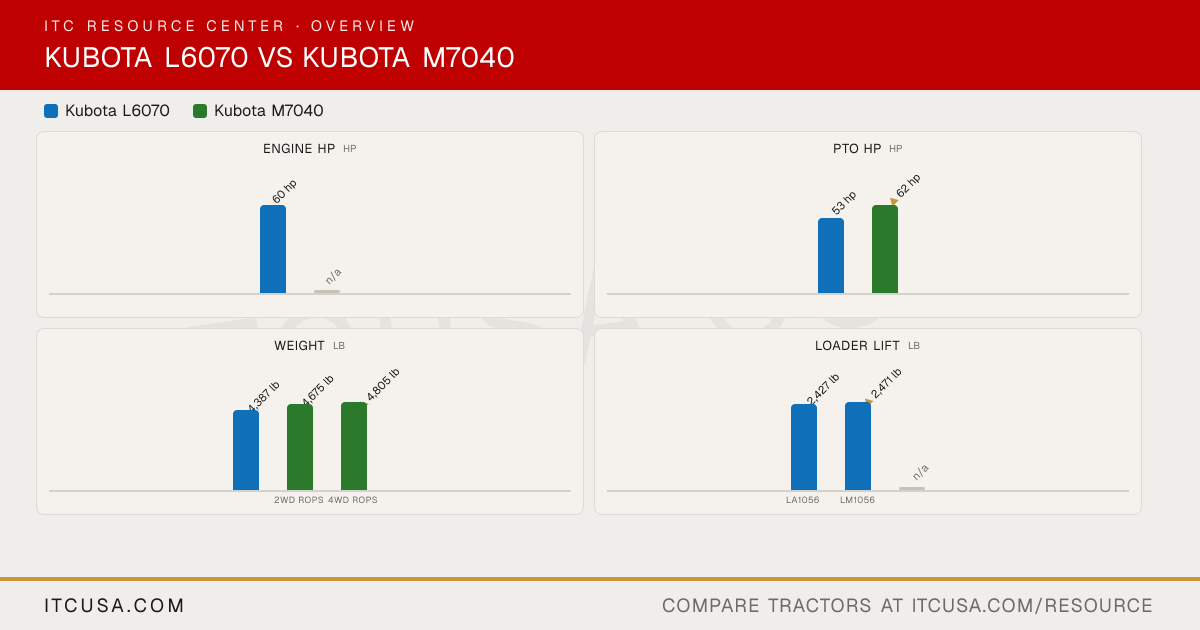

| Engine Power (Gross) | 60 hp | Not Published |
|---|
| PTO Power | 53 hp | 62 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 2 |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | 8 in dry, dual element |
|---|
| Fuel System | Common rail direct injection | Direct injection |
|---|
| Alternator | Not Published | ROPS: 45 A, 12 V; Cab: 60 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 9.83 gpm | 11.0 gpm |
|---|
| Steering Flow | Not Published | 6.1 gpm |
|---|
| Total Hydraulic Flow | Not Published | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Overall Hydraulic Pump Flow | Not Published | 17.2 gpm |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 11.0 gpm |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
| No. of Optional Remote Valves | Up to 3 (optional) | 2nd and 3rd optional |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | ROPS: 18.5 gal; Cab: 29.1 gal |
|---|
| Coolant Capacity | Not Published | 8.5 qt |
|---|
| Crankcase Capacity | Not Published | 11.6 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 10.6 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 8.5 qt |
|---|
|
|---|
| PTO Type | Independent | Live independent PTO, hydraulically operated wet clutch with PTO brake |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I and II | Category II |
|---|
| Hitch Lift Capacity | 3858 lb | 4189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2976 lb | 3307 lb |
|---|
| Lift Control Type | Not Published | Position, draft (top link sensing) and mix control |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission, 3-range, with Hydro-Dual Speed (H-DS) | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models |
|---|
| No. of Speeds | 3-range | 8F/8R (12F/12R with optional creep) |
|---|
| Max Travel Speed (Forward) | 18.5 mph | 18.7 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle) |
|---|
| Differential Lock & Limited Slip Options | Not Published | Rear differential lock (bevel gears) |
|---|
|
|---|
| Frame Type | Two-post folding ROPS; cab optional | Two-post ROPS (canopy optional); Ultra Grand Cab optional |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc type | Mechanically operated wet disc brakes |
|---|
| Seat Suspension & Adjustability | Not Published | Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab) |
|---|
| Front Axle Type | Not Published | 4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 2200 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 133.9 in (w/o 3P) (without 3-point hitch) | 2WD: 140.4 in; 4WD: 135.6 in |
|---|
| Overall Width | 67.3 in | 73.2 in |
|---|
| Wheelbase | 81.3 in | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in |
|---|
| Ground Clearance | 15.4 in | 16.3 in |
|---|
| Min. Turn Radius without Brakes | 9.5 ft (w/brake) (with brake applied) | 2WD: 11.2 ft; 4WD: 11.8 ft |
|---|
| Height to Top of ROPS | 98.0 in | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 93.3 in | 100.2 in |
|---|
|
|---|
| Tractor Weight (Base) | 4387 lb (ROPS); 4762 lb (cab) | 2WD ROPS: 4675 lb; 4WD ROPS: 4805 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard: 9.5-16 front, 14.9-26 rear | Standard: 7.5-16 (2WD) or 9.5-24 (4WD) front, 16.9-30 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | 2WD: 7.5-16; 4WD: 9.5-24 |
|---|
| R1 Agricultural - Rear | 14.9-26 | 16.9-30 |
|---|
| R3 Turf - Front | Not Published | 29x12.5-15 or 27x9.5-15 |
|---|
| R3 Turf - Rear | Not Published | 18.4-26 or 21.5L-16.1 |
|---|
| R4 Industrial - Front | Not Published | 14-17.5L (4WD) |
|---|
| R4 Industrial - Rear | Not Published | 16.9-24 (4WD) |
|---|
|
|---|
| Quick Attach Loader System | LA1056, LM1056: toolless loader removal with integrated parking stands; optional third-function valve | LA1153: two-lever quick coupler |
|---|
| Loader Model | LA1056; LM1056 | LA1153 |
|---|
| Loader Lift Height | LA1056: 117 in; LM1056: 117 in | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in |
|---|
| Loader Lift Capacity (Full Height) | LA1056: 2427 lb; LM1056: 2471 lb | Not Published |
|---|
| Loader Breakout Force | LA1056: 4069 lbf; LM1056: 4061 lbf | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
