Kubota L6070 vs Kubota MX5200
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota L6070 leads 7 categories to 1. Machine pages: Kubota L6070 and Kubota MX5200.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

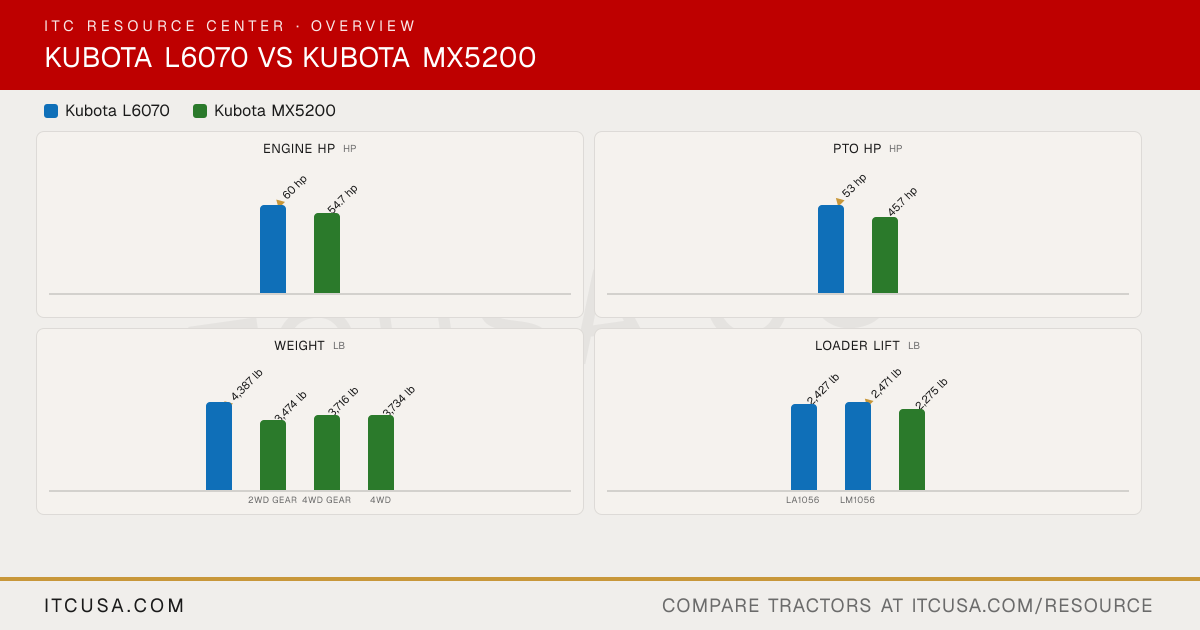

Category Verdict
| Spec | Kubota L6070 | Kubota MX5200 |
|---|---|---|
| Engine HP (hp) | ▲ 60 hp | 54.7 hp |
| PTO HP (hp) | ▲ 53 hp | 45.7 hp |
| Weight (lb) | ▲ 4,387 lb | 3,734 lb |
| Loader Lift (lb) | ▲ 2,471 lb | 2,275 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,976 lb | 2,310 lb |
| Lift Height (in) | ▲ 117 in | 111.2 in |
| Breakout Force (lbf) | 4,069 lbf | n/a |
| Hydraulic Flow (gpm) | 9.8 gpm | ▲ 14.4 gpm |
| Travel Speed (mph) | ▲ 18.5 mph | 16 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL6070 | KubotaMX5200 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403-CR-TIE5 | V2403CR-T |
| Engine Type | Direct injection, water-cooled, 4-cycle diesel, common rail system, turbocharged and intercooled | Common rail direct injection, liquid-cooled, turbocharged 4-cylinder diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 148.5 in³ | 148.6 in³ |
| Rated Engine Speed | 2300 rpm | 2700 rpm |
| Engine Power (Gross) | 60 hp | 54.7 hp |
| PTO Power | 53 hp | F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Water-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Dry, dual element |
| Fuel System | Common rail direct injection | Common rail direct injection |
| Alternator | Not Published | 45 A |
Kubota L6070 vs Kubota MX5200: Quick Answers
- Which has more horsepower, the Kubota L6070 or the Kubota MX5200?
- The Kubota L6070 leads on engine hp at 60 hp hp, compared to 54.7 hp hp for the Kubota MX5200.
- Which has more PTO horsepower, the Kubota L6070 or the Kubota MX5200?
- The Kubota L6070 leads on pto hp at 53 hp hp, compared to 45.7 hp hp for the Kubota MX5200.
- Which is heavier, the Kubota L6070 or the Kubota MX5200?
- The Kubota L6070 leads on weight at 4,387 lb lb, compared to 3,734 lb lb for the Kubota MX5200.
- Which has more loader lift capacity, the Kubota L6070 or the Kubota MX5200?
- The Kubota L6070 leads on loader lift at 2,471 lb lb, compared to 2,275 lb lb for the Kubota MX5200.
- Which has more three-point hitch lift capacity, the Kubota L6070 or the Kubota MX5200?
- The Kubota L6070 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,310 lb lb for the Kubota MX5200.
