Kubota LX2610 vs Kubota LX2610HSDC

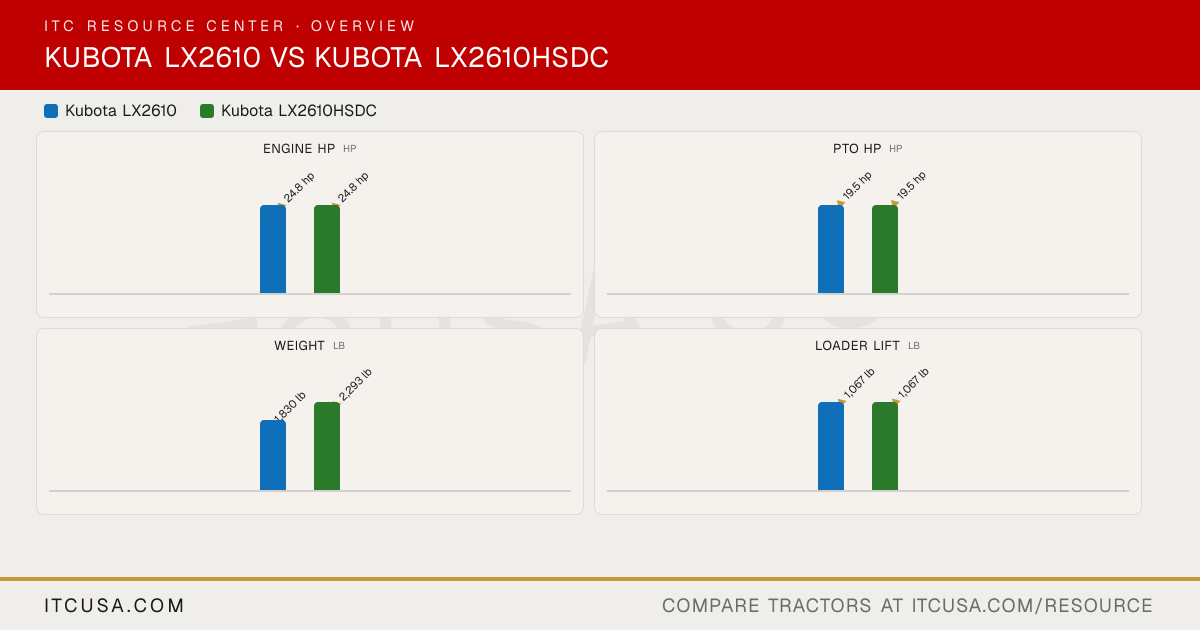

Across 9 measurable specs, the Kubota LX2610HSDC leads 1 categories to 0 (8 tied). Machine pages: Kubota LX2610 and Kubota LX2610HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX2610	KubotaLX2610HSDC

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E4-D36-R	D1305-E4-D26-Q
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	E-TVCS, liquid cooled, 3-cylinder, diesel
No. of Cylinders	3	3
Displacement	77 in³	77 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.8 hp	24.8 hp
PTO Power	19.5 hp	19.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Pressurized radiator
Air Cleaner	4.5 in Dual paper element	4.5 in Dual paper element
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Dual pump
Implement Flow	5.0 gpm	5.0 gpm
Steering Flow	3.7 gpm	3.7 gpm
Total Hydraulic Flow	8.7 gpm	8.7 gpm
Overall Hydraulic Pump Flow	8.7 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	Optional, up to 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	8.4 gal
Coolant Capacity	4.5 qt	4.5 qt
Crankcase Capacity	4.2 qt	4.2 qt
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal
Front Axle Fluid Capacity	5.0 qt	5.0 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	2139 lb
Hitch Lift Capacity (at 24”)	1676 lb	1676 lb
Lift Control Type	Position control valve	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Hydrostatic transmission
No. of Speeds	3 ranges	3 ranges
Max Travel Speed (Forward)	11.2 mph	11.2 mph
Max Travel Speed (Reverse)	8.4 mph	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Hydraulic power steering
Brakes	Multi-plate wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Deluxe high-back suspension seat	Deluxe high-back suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	101.8 in (without 3-point hitch)	103.9 in (without 3-point hitch)
Overall Width	53.7 in	53.7 in
Wheelbase	65.6 in	65.6 in
Ground Clearance	14.6 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	88.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	84.6 in
▶Weight
Tractor Weight (Base)	1830 lb	2293 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R4 Industrial, R14	R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front	7.0-12	7.0-12
R1 Agricultural - Rear	12.4-16	12.4-16
R3 Turf - Front	24x8.50-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23X8.50-14 / 25X8.50-14	23X8.50-14
R4 Industrial - Rear	12.4-16 / 15-19.5	12.4-16
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	LA535	LA535
Loader Lift Height	84 in	84 in
Loader Lift Capacity (Full Height)	1067 lb	1067 lb
Loader Breakout Force	2245 lb	2245 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota LX2610/LX3310 Brush Guard Insert $259.00	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Kubota dealer near you→

Kubota LX2610 vs Kubota LX2610HSDC: Quick Answers

Which has more horsepower, the Kubota LX2610 or the Kubota LX2610HSDC?

They are effectively tied: both machines are rated at 24.8 hp hp for engine hp.

Which has more PTO horsepower, the Kubota LX2610 or the Kubota LX2610HSDC?

They are effectively tied: both machines are rated at 19.5 hp hp for pto hp.

Which is heavier, the Kubota LX2610 or the Kubota LX2610HSDC?

The Kubota LX2610HSDC leads on weight at 2,293 lb lb, compared to 1,830 lb lb for the Kubota LX2610.

Which has more loader lift capacity, the Kubota LX2610 or the Kubota LX2610HSDC?

They are effectively tied: both machines are rated at 1,067 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota LX2610 or the Kubota LX2610HSDC?

They are effectively tied: both machines are rated at 1,676 lb lb for 3-pt lift (24 in).
