Kubota LX2610 vs Mahindra Max 26XLT

Across 9 measurable specs, the Mahindra Max 26XLT leads 6 categories to 3. Machine pages: Kubota LX2610 and Mahindra Max 26XLT.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

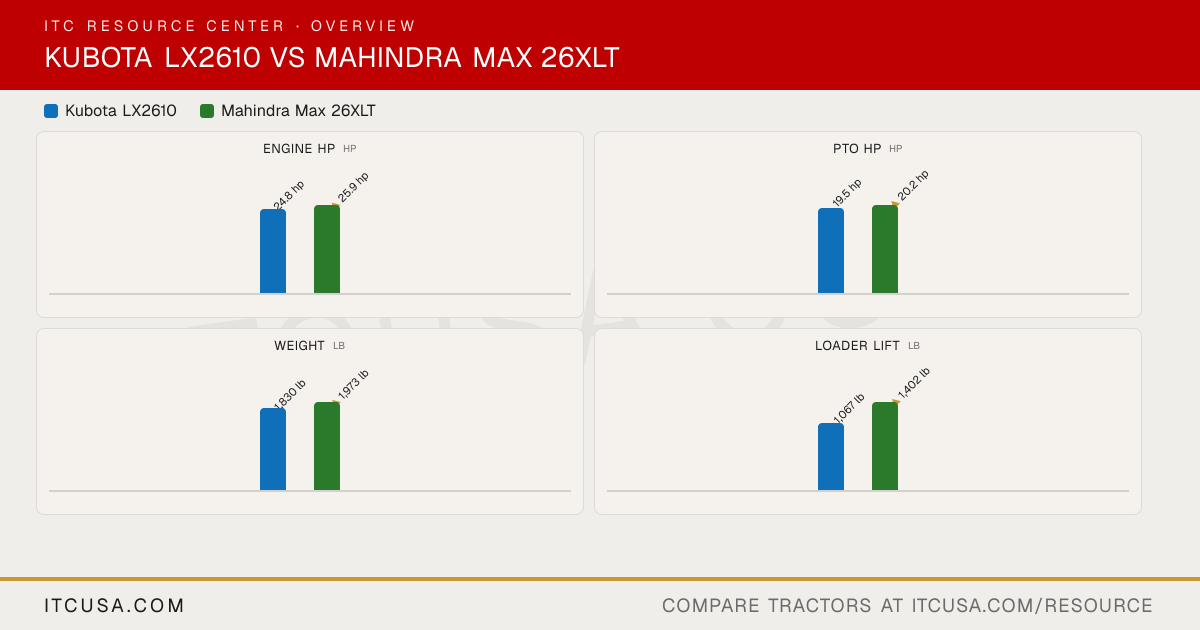

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX2610	MahindraMax 26XLT

▶Engine
Engine Manufacturer	Kubota	Mitsubishi
Engine Model	D1305-E4-D36-R	S3L2
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
No. of Cylinders	3	3
Displacement	77 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.8 hp	25.9 hp
PTO Power	19.5 hp	20.2 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Water Cooled
Air Cleaner	4.5 in Dual paper element	Not Published
Fuel System	Indirect injection	Indirect Injection
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	5.0 gpm	5.8 gpm
Steering Flow	3.7 gpm	2.7 gpm
Total Hydraulic Flow	8.7 gpm	8.5 gpm
Overall Hydraulic Pump Flow	8.7 gpm	8.5 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	Optional, up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	6.1 gal
Coolant Capacity	4.5 qt	Not Published
Crankcase Capacity	4.2 qt	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	Not Published
Front Axle Fluid Capacity	5.0 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 rpm	540 @ 2376 rpm
Mid-PTO Availability	2500 rpm	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	Category I	CAT I
Hitch Lift Capacity	2139 lb	2315 lb
Hitch Lift Capacity (at 24”)	1676 lb	Not Published
Lift Control Type	Position control valve	Position Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	HST - 2 ranges
No. of Speeds	3 ranges	Infinite
Max Travel Speed (Forward)	11.2 mph	10.4 mph
Max Travel Speed (Reverse)	8.4 mph	Not Published
Clutch	Not Published	Dry - Single
Differential Lock & Limited Slip Options	Differential lock standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Power Steering
Brakes	Multi-plate wet disc	Wet disc
Seat Suspension & Adjustability	Deluxe high-back suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	101.8 in (without 3-point hitch)	110 in
Overall Width	53.7 in	54.3 in
Wheelbase	65.6 in	63.2 in
Ground Clearance	14.6 in	11.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.2 ft
Height to Top of ROPS	88.4 in	84.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	Not Published
▶Weight
Tractor Weight (Base)	1830 lb	1973 lb
Weight with ROPS and Loader	Not Published	2600 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R4 Industrial, R14	R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front	7.0-12	7-12
R1 Agricultural - Rear	12.4-16	9.5-16
R3 Turf - Front	24x8.50-14	23x8.5-12
R3 Turf - Rear	13.6-16	33x12.5-15
R4 Industrial - Front	23X8.50-14 / 25X8.50-14	23x8.50-12
R4 Industrial - Rear	12.4-16 / 15-19.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Quick-Attach Adapter (included)
Loader Model	LA535	MXLT26L
Loader Lift Height	84 in	MXLT26L: 82.7 in
Loader Lift Capacity (Full Height)	1067 lb	MXLT26L: 1402 lb (at pivot pin)
Loader Breakout Force	2245 lb	MXLT26L: 2690 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
▶ITC Company Accessories
Accessories that fit	Kubota LX2610/LX3310 Brush Guard Insert $259.00	None tagged yet

Find a Kubota dealer near you→Find a Mahindra dealer near you→

Kubota LX2610 vs Mahindra Max 26XLT: Quick Answers

Which has more horsepower, the Kubota LX2610 or the Mahindra Max 26XLT?

The Mahindra Max 26XLT leads on engine hp at 25.9 hp hp, compared to 24.8 hp hp for the Kubota LX2610.

Which has more PTO horsepower, the Kubota LX2610 or the Mahindra Max 26XLT?

The Mahindra Max 26XLT leads on pto hp at 20.2 hp hp, compared to 19.5 hp hp for the Kubota LX2610.

Which is heavier, the Kubota LX2610 or the Mahindra Max 26XLT?

The Mahindra Max 26XLT leads on weight at 1,973 lb lb, compared to 1,830 lb lb for the Kubota LX2610.

Which has more loader lift capacity, the Kubota LX2610 or the Mahindra Max 26XLT?

The Mahindra Max 26XLT leads on loader lift at 1,402 lb lb, compared to 1,067 lb lb for the Kubota LX2610.

Which has more three-point hitch lift capacity, the Kubota LX2610 or the Mahindra Max 26XLT?

The Mahindra Max 26XLT leads on 3-pt lift (24 in) at 2,315 lb lb, compared to 1,676 lb lb for the Kubota LX2610.
