Kubota LX3520 vs Massey Ferguson MF 1E.35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson MF 1E.35 leads 5 categories to 2. Machine pages: Kubota LX3520 and Massey Ferguson MF 1E.35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota LX3520	Massey Ferguson MF 1E.35
Engine HP (hp)	▲ 34.9 hp	34.5 hp
PTO HP (hp)	28.7 hp	▲ 29.2 hp
Weight (lb)	2,191 lb	▲ 2,943 lb
Loader Lift (lb)	1,100 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,962 lb	1,598 lb
Lift Height (in)	87.6 in	▲ 94.3 in
Breakout Force (lbf)	n/a	2,288 lbf
Hydraulic Flow (gpm)	9.5 gpm	▲ 11.4 gpm
Travel Speed (mph)	17 mph	n/a

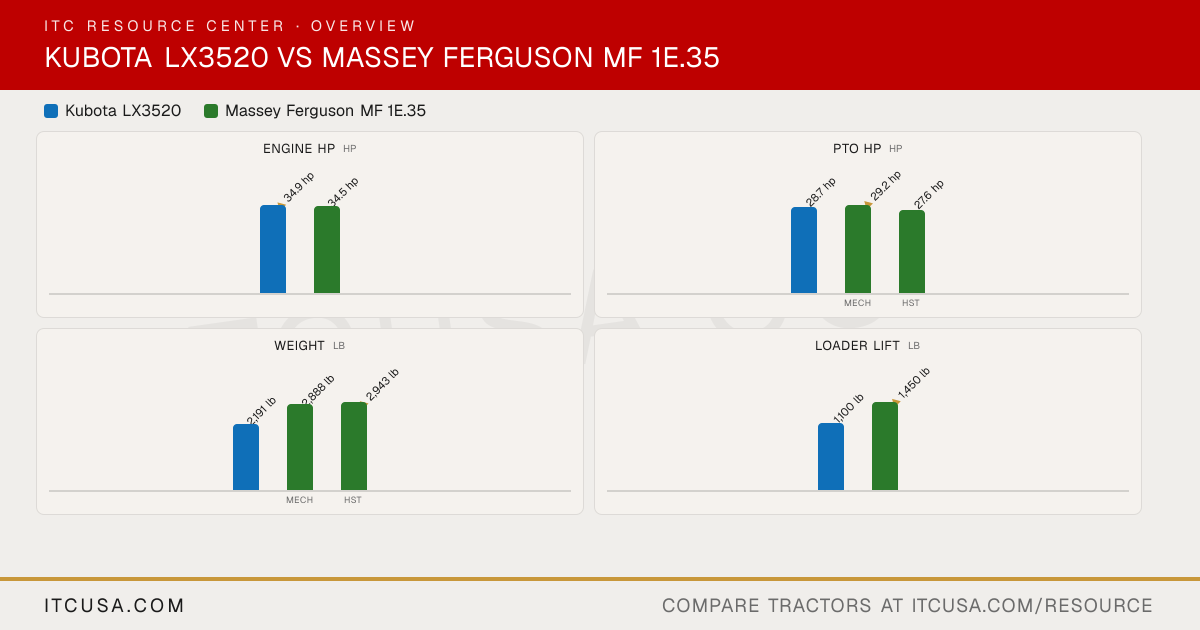

The headline numbers at a glance.

Kubota LX3520Massey Ferguson MF 1E.35

Engine HPhp

▲34.9 hp

34.5 hp

PTO HPhp

28.7 hp

▲29.2 hp

27.6 hp

MechHST

Weightlb

2,191 lb

2,888 lb

▲2,943 lb

MechHST

Loader Liftlb

1,100 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,962 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3520	Massey FergusonMF 1E.35


Engine Manufacturer	Kubota	Iseki
Engine Model	V1505-CR-TE5-D40R5	Not Published
Engine Type	Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	91.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	34.9 hp	34.5 hp
PTO Power	28.7 hp	Mech: 29.2 hp; HST: 27.6 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Pressurized radiator	Liquid cooled
Air Cleaner	6 in paper filter (with dual element)	Not Published
Fuel System	Direct injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual pump	Two gear-type pumps
Implement Flow	5.4 gpm	7.6 gpm
Steering Flow	4.1 gpm	3.8 gpm
Total Hydraulic Flow	9.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	9.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	Optional, up to 2	Not Published

Fuel Tank Capacity	8.5 gal	10 gal
Coolant Capacity	4.5 qt	Not Published
Crankcase Capacity	5.0 qt	Not Published
Transmission / Hydraulic System Capacity	5.5 gal	Not Published
Front Axle Fluid Capacity	4.8 qt	Not Published

PTO Type	Independent	Mech: Independent; HST: Transmission
PTO Rear	540 rpm	540 rpm, 1.375 in
Mid-PTO Availability	2460 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2535 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1962 lb	1,598 lb
Lift Control Type	Position control valve	Not Published

Transmission Type	HST (3 ranges)	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	HST (3 range)	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	17.0 mph	Not Published
Max Travel Speed (Reverse)	13.0 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Standard	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Multi-plate wet disk	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat (high back, designed to absorb shock)	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published

Overall Length with 3-Point Hitch	116.1 in	116.5 in
Overall Width	53.7 in	52.4 in
Wheelbase	66.7 in	Not Published
Ground Clearance	8.9 in	11 in
Min. Turn Radius without Brakes	7.5 ft (with brake applied)	Not Published
Height to Top of ROPS	88.4 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.6 in	Not Published

Tractor Weight (Base)	2191 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R14	Not Published
R1 Agricultural - Front	180/85D12	Not Published
R1 Agricultural - Rear	320/85D16	Not Published
R3 Turf - Front	24x8.5-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.5-12 or 25x8.5-14	Not Published
R4 Industrial - Rear	14-17.5 or 15-19.5	Not Published

Quick Attach Loader System	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Skid steer quick attach
Loader Model	LA545	FL2407X
Loader Lift Height	87.6 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	1100 lb	FL2407X: 1,450 lb
Loader Breakout Force	Not Published	FL2407X: 2,288 lb

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published

Find a Kubota dealer near you Find a dealer near you

Kubota LX3520 vs Massey Ferguson MF 1E.35: Quick Answers

Which has more horsepower, the Kubota LX3520 or the Massey Ferguson MF 1E.35?: The Kubota LX3520 leads on engine hp at 34.9 hp hp, compared to 34.5 hp hp for the Massey Ferguson MF 1E.35.
Which has more PTO horsepower, the Kubota LX3520 or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on pto hp at 29.2 hp hp, compared to 28.7 hp hp for the Kubota LX3520.
Which is heavier, the Kubota LX3520 or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on weight at 2,943 lb lb, compared to 2,191 lb lb for the Kubota LX3520.
Which has more loader lift capacity, the Kubota LX3520 or the Massey Ferguson MF 1E.35?: The Massey Ferguson MF 1E.35 leads on loader lift at 1,450 lb lb, compared to 1,100 lb lb for the Kubota LX3520.
Which has more three-point hitch lift capacity, the Kubota LX3520 or the Massey Ferguson MF 1E.35?: The Kubota LX3520 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.35.

More Head-to-Heads

Category Verdict

Spec	Kubota LX3520	Massey Ferguson MF 1E.35
Engine HP (hp)	▲ 34.9 hp	34.5 hp
PTO HP (hp)	28.7 hp	▲ 29.2 hp
Weight (lb)	2,191 lb	▲ 2,943 lb
Loader Lift (lb)	1,100 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,962 lb	1,598 lb
Lift Height (in)	87.6 in	▲ 94.3 in
Breakout Force (lbf)	n/a	2,288 lbf
Hydraulic Flow (gpm)	9.5 gpm	▲ 11.4 gpm
Travel Speed (mph)	17 mph	n/a

The headline numbers at a glance.

Kubota LX3520Massey Ferguson MF 1E.35

Engine HPhp

▲34.9 hp

34.5 hp

PTO HPhp

28.7 hp

▲29.2 hp

27.6 hp

MechHST

Weightlb

2,191 lb

2,888 lb

▲2,943 lb

MechHST

Loader Liftlb

1,100 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,962 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3520	Massey FergusonMF 1E.35


Engine Manufacturer	Kubota	Iseki
Engine Model	V1505-CR-TE5-D40R5	Not Published
Engine Type	Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	91.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	34.9 hp	34.5 hp
PTO Power	28.7 hp	Mech: 29.2 hp; HST: 27.6 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Pressurized radiator	Liquid cooled
Air Cleaner	6 in paper filter (with dual element)	Not Published
Fuel System	Direct injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual pump	Two gear-type pumps
Implement Flow	5.4 gpm	7.6 gpm
Steering Flow	4.1 gpm	3.8 gpm
Total Hydraulic Flow	9.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Overall Hydraulic Pump Flow	9.5 gpm	11.4 gpm (7.6 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	Optional, up to 2	Not Published

Fuel Tank Capacity	8.5 gal	10 gal
Coolant Capacity	4.5 qt	Not Published
Crankcase Capacity	5.0 qt	Not Published
Transmission / Hydraulic System Capacity	5.5 gal	Not Published
Front Axle Fluid Capacity	4.8 qt	Not Published

PTO Type	Independent	Mech: Independent; HST: Transmission
PTO Rear	540 rpm	540 rpm, 1.375 in
Mid-PTO Availability	2460 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2535 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1962 lb	1,598 lb
Lift Control Type	Position control valve	Not Published

Transmission Type	HST (3 ranges)	Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic
No. of Speeds	HST (3 range)	Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	17.0 mph	Not Published
Max Travel Speed (Reverse)	13.0 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Standard	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Multi-plate wet disk	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat (high back, designed to absorb shock)	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published

Overall Length with 3-Point Hitch	116.1 in	116.5 in
Overall Width	53.7 in	52.4 in
Wheelbase	66.7 in	Not Published
Ground Clearance	8.9 in	11 in
Min. Turn Radius without Brakes	7.5 ft (with brake applied)	Not Published
Height to Top of ROPS	88.4 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.6 in	Not Published

Tractor Weight (Base)	2191 lb	Mech: 2,888 lb; HST: 2,943 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R14	Not Published
R1 Agricultural - Front	180/85D12	Not Published
R1 Agricultural - Rear	320/85D16	Not Published
R3 Turf - Front	24x8.5-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.5-12 or 25x8.5-14	Not Published
R4 Industrial - Rear	14-17.5 or 15-19.5	Not Published

Quick Attach Loader System	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Skid steer quick attach
Loader Model	LA545	FL2407X
Loader Lift Height	87.6 in	FL2407X: 94.3 in
Loader Lift Capacity (Full Height)	1100 lb	FL2407X: 1,450 lb
Loader Breakout Force	Not Published	FL2407X: 2,288 lb

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published

Find a Kubota dealer near you Find a dealer near you

Kubota LX3520 vs Massey Ferguson MF 1E.35: Quick Answers

Which has more horsepower, the Kubota LX3520 or the Massey Ferguson MF 1E.35?

The Kubota LX3520 leads on engine hp at 34.9 hp hp, compared to 34.5 hp hp for the Massey Ferguson MF 1E.35.

Which has more PTO horsepower, the Kubota LX3520 or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on pto hp at 29.2 hp hp, compared to 28.7 hp hp for the Kubota LX3520.

Which is heavier, the Kubota LX3520 or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on weight at 2,943 lb lb, compared to 2,191 lb lb for the Kubota LX3520.

Which has more loader lift capacity, the Kubota LX3520 or the Massey Ferguson MF 1E.35?

The Massey Ferguson MF 1E.35 leads on loader lift at 1,450 lb lb, compared to 1,100 lb lb for the Kubota LX3520.

Which has more three-point hitch lift capacity, the Kubota LX3520 or the Massey Ferguson MF 1E.35?

The Kubota LX3520 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,598 lb lb for the Massey Ferguson MF 1E.35.
