Kubota M4D-061 vs Kubota M5-091HF
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota M5-091HF leads 5 categories to 3. Machine pages: Kubota M4D-061 and Kubota M5-091HF.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

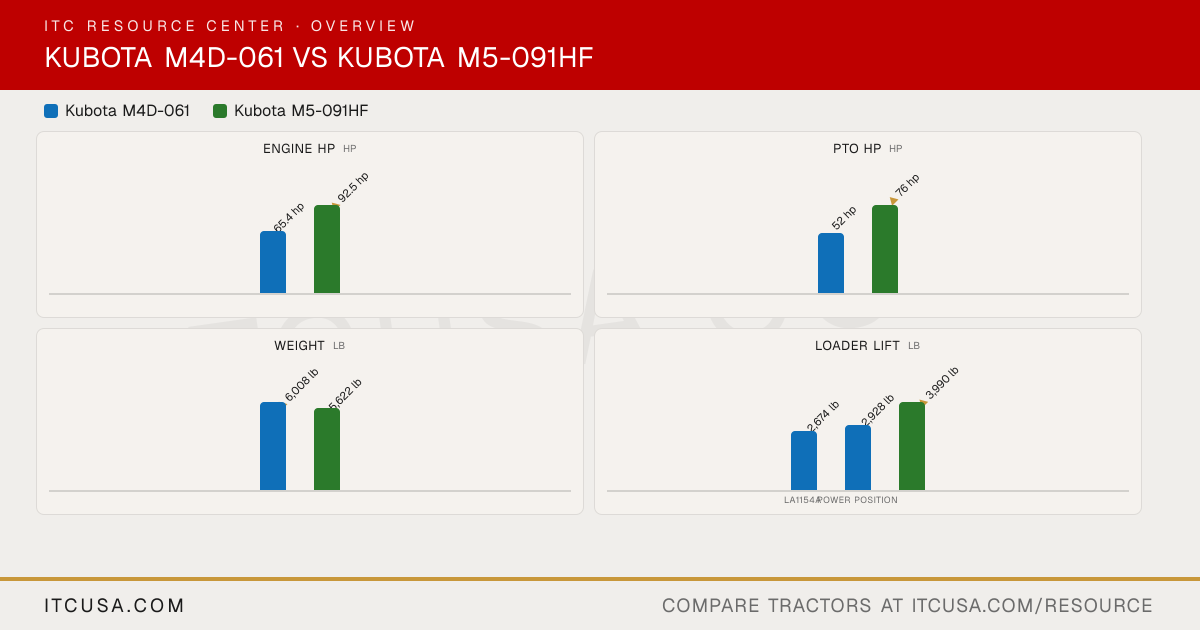

Category Verdict
| Spec | Kubota M4D-061 | Kubota M5-091HF |
|---|---|---|
| Engine HP (hp) | 65.4 hp | ▲ 92.5 hp |
| PTO HP (hp) | 52 hp | ▲ 76 hp |
| Weight (lb) | ▲ 6,008 lb | 5,622 lb |
| Loader Lift (lb) | 2,928 lb | ▲ 3,990 lb |
| 3-Pt Lift (24 in) (lb) | 3,307 lb | ▲ 5,181 lb |
| Lift Height (in) | 133 in | ▲ 145.7 in |
| Breakout Force (lbf) | 5,128 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 23 gpm | 21.3 gpm |
| Travel Speed (mph) | ▲ 24.9 mph | 17.7 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaM4D-061 | KubotaM5-091HF |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V3307-CR-TE4 | V3800CR-TIEF4 |
| Engine Type | Liquid-cooled, diesel, 4-cylinder | 4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 203 in³ | 230 in³ |
| Rated Engine Speed | 2400 rpm | 2400 rpm |
| Engine Power (Gross) | 65.4 hp | 92.5 hp |
| PTO Power | 52 hp | 76 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dual element (primary and secondary elements) | Dry paper, dual element, 8 in diameter, with pre-cleaner |
| Fuel System | Common Rail System (CRS) | Common rail direct injection |
| Alternator | 130 A, 12 V | 60 A, 12 V |
Kubota M4D-061 vs Kubota M5-091HF: Quick Answers
- Which has more horsepower, the Kubota M4D-061 or the Kubota M5-091HF?
- The Kubota M5-091HF leads on engine hp at 92.5 hp hp, compared to 65.4 hp hp for the Kubota M4D-061.
- Which has more PTO horsepower, the Kubota M4D-061 or the Kubota M5-091HF?
- The Kubota M5-091HF leads on pto hp at 76 hp hp, compared to 52 hp hp for the Kubota M4D-061.
- Which is heavier, the Kubota M4D-061 or the Kubota M5-091HF?
- The Kubota M4D-061 leads on weight at 6,008 lb lb, compared to 5,622 lb lb for the Kubota M5-091HF.
- Which has more loader lift capacity, the Kubota M4D-061 or the Kubota M5-091HF?
- The Kubota M5-091HF leads on loader lift at 3,990 lb lb, compared to 2,928 lb lb for the Kubota M4D-061.
- Which has more three-point hitch lift capacity, the Kubota M4D-061 or the Kubota M5-091HF?
- The Kubota M5-091HF leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 3,307 lb lb for the Kubota M4D-061.
