Kubota M4D-061 vs Kubota M5700
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota M4D-061 leads 7 categories to 0 (1 tied). Machine pages: Kubota M4D-061 and Kubota M5700.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

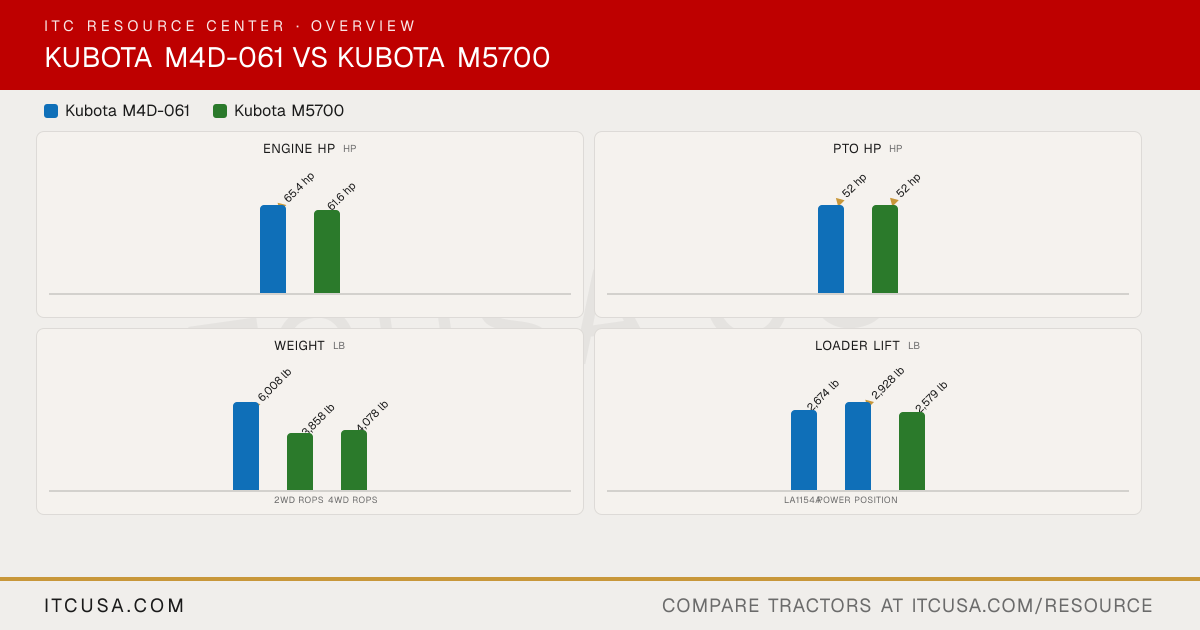

Category Verdict
| Spec | Kubota M4D-061 | Kubota M5700 |
|---|---|---|
| Engine HP (hp) | ▲ 65.4 hp | 61.6 hp |
| PTO HP (hp) | 52 hp | 52 hp |
| Weight (lb) | ▲ 6,008 lb | 4,078 lb |
| Loader Lift (lb) | ▲ 2,928 lb | 2,579 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,307 lb | 2,840 lb |
| Lift Height (in) | ▲ 133 in | 115.6 in |
| Breakout Force (lbf) | ▲ 5,128 lbf | 3,330 lbf |
| Hydraulic Flow (gpm) | ▲ 23 gpm | 11 gpm |
| Travel Speed (mph) | 24.9 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaM4D-061 | KubotaM5700 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V3307-CR-TE4 | F2803 |
| Engine Type | Liquid-cooled, diesel, 4-cylinder | Diesel, 5-cylinder, liquid-cooled |
| No. of Cylinders | 4 | 5 |
| Displacement | 203 in³ | 167.5 in³ |
| Rated Engine Speed | 2400 rpm | 2800 rpm |
| Engine Power (Gross) | 65.4 hp | 61.6 hp |
| PTO Power | 52 hp | 52 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dual element (primary and secondary elements) | Two paper elements |
| Fuel System | Common Rail System (CRS) | Indirect injection |
| Alternator | 130 A, 12 V | Not Published |
Kubota M4D-061 vs Kubota M5700: Quick Answers
- Which has more horsepower, the Kubota M4D-061 or the Kubota M5700?
- The Kubota M4D-061 leads on engine hp at 65.4 hp hp, compared to 61.6 hp hp for the Kubota M5700.
- Which has more PTO horsepower, the Kubota M4D-061 or the Kubota M5700?
- They are effectively tied: both machines are rated at 52 hp hp for pto hp.
- Which is heavier, the Kubota M4D-061 or the Kubota M5700?
- The Kubota M4D-061 leads on weight at 6,008 lb lb, compared to 4,078 lb lb for the Kubota M5700.
- Which has more loader lift capacity, the Kubota M4D-061 or the Kubota M5700?
- The Kubota M4D-061 leads on loader lift at 2,928 lb lb, compared to 2,579 lb lb for the Kubota M5700.
- Which has more three-point hitch lift capacity, the Kubota M4D-061 or the Kubota M5700?
- The Kubota M4D-061 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,840 lb lb for the Kubota M5700.
