| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V3800CR-TIEF4 | V3307-CR-TE4 |
|---|
| Engine Type | 4-cylinder, turbocharged and intercooled, common-rail diesel, DPF, DOC and SCR | Liquid-cooled, diesel, 4-cylinder, Turbocharged |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 230 in³ | 203 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2400 rpm |
|---|

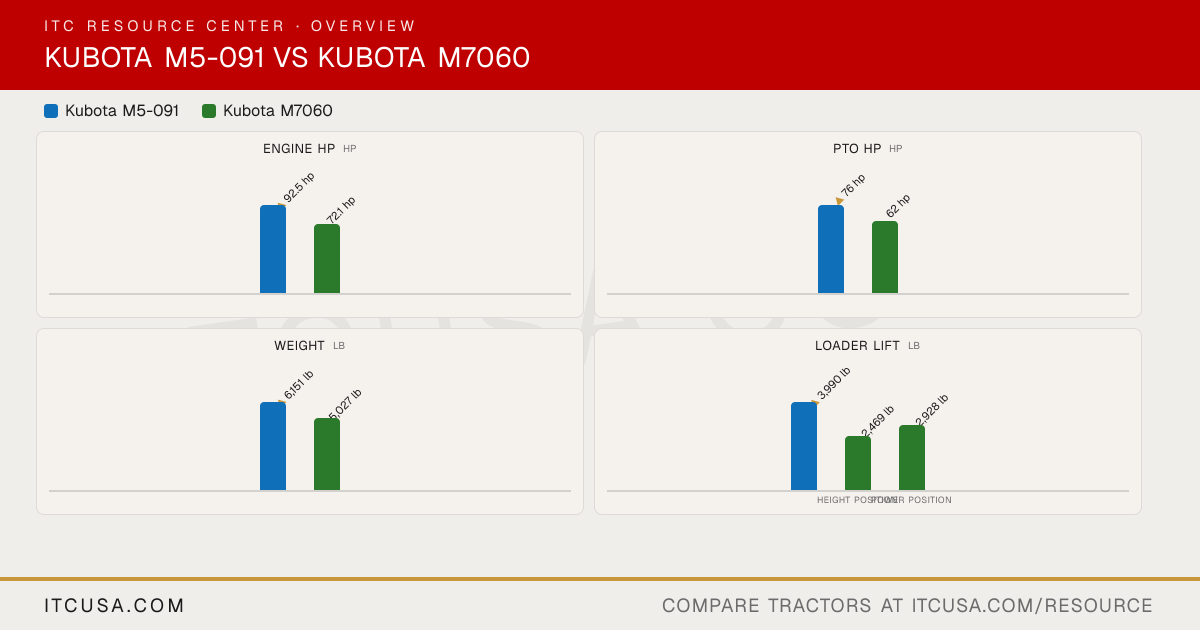

| Engine Power (Gross) | 92.5 hp | 72.1 hp |
|---|
| PTO Power | 76 hp | 62 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry paper, dual element, 8 in diameter, with pre-cleaner | Dry paper, dual element, 8 in diameter, with pre-cleaner |
|---|
| Fuel System | Common rail direct injection | Common Rail System (CRS) |
|---|
| Alternator | 60 A | 45 A, 12 V |
|---|
|
|---|
| Pump Type | Gear pump | Gear |
|---|
| Implement Flow | 15.9 gpm | 11.0 gpm |
|---|
| Steering Flow | 5.4 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 21.3 gpm | 17.1 gpm |
|---|
| Overall Hydraulic Pump Flow | 21.3 gpm | 17.1 gpm |
|---|
| Hydraulic System Type | Open center | Open Center |
|---|
| Rear Remote Hydraulic Flow | 15.7 gpm | 11.0 gpm |
|---|
| No. of Standard Remote Valves | 2 standard (3 maximum) | 1 (SCD) |
|---|
| No. of Optional Remote Valves | Not Published | 2nd, 3rd (optional) |
|---|
|
|---|
| Fuel Tank Capacity | 27.7 gal | 18.5 gal |
|---|
| Coolant Capacity | 11 qt | 8.5 qt |
|---|
| Crankcase Capacity | 11.3 qt | 12.7 qt |
|---|
| Transmission / Hydraulic System Capacity | 63.4 qt | 14.8 gal |
|---|
| Front Axle Fluid Capacity | 6.3 qt (differential) plus 3.7 qt (each bevel gear case) | 5.8 qt (differential) plus 3.7 qt (each bevel gear case) |
|---|
|
|---|
| PTO Type | Live-independent PTO, electro-hydraulic clutch with brake | Live-independent PTO, electro-hydraulic clutch with brake |
|---|
| PTO Rear | 540 rpm (540/540E on 12-speed models) | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | I / II |
|---|
| Hitch Lift Capacity | 7,055 lb | 4,189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 4,630 lb (8-speed); 6,063 lb (12-speed) | 3,307 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mixed control | Position, Draft (Top Link Sensing) & Mixed Control |
|---|
|
|---|
| Transmission Type | Fully synchronized main gear shift with electro-hydraulic shuttle | Hydraulic-shuttle (F8/R8), fully synchronized (4-speed main) |
|---|
| No. of Speeds | 8 forward, 8 reverse (8-speed models); 12 forward, 12 reverse (12-speed models) | F8/R8 |
|---|
| Max Travel Speed (Forward) | 17.7 mph (8-speed); 22.6 mph (12-speed) | 18.8 mph |
|---|
| Max Travel Speed (Reverse) | 8-speed: 18.4 mph; 12-speed: 23.5 mph | 18.5 mph |
|---|
| Clutch | Multiple wet disc | Multiple wet disc |
|---|
| Differential Lock & Limited Slip Options | Front: limited-slip differential; Rear: mechanical differential lock | Front: limited slip differential; Rear: mechanical |
|---|
|
|---|
| Frame Type | Not Published | Two-post foldable ROPS |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Hydraulic wet disc | Mechanical wet disc |
|---|
| Seat Suspension & Adjustability | Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest | Suspension seat, adjustable (travel, suspension tension, backrest tilt, armrests); optional air-suspension seat on cab models |
|---|
| Front Axle Type | Bevel gear type with 55 degree turning angle (4WD) | Bevel gear type with 55 degree turning angle (4WD) |
|---|
| Front Axle Rating | 5,730 lb | 5,290 lb (6,615 lb with loader) |
|---|
| Drawbar Capacity | 3,300 lb | 2,200 lb |
|---|
|
|---|
| Overall Width | 78.3 in | 73.0 in |
|---|
| Wheelbase | 88.6 in | 83.1 in |
|---|
| Ground Clearance | 17.7 in (minimum, drawbar bracket) | 14.3 in |
|---|
| Min. Turn Radius without Brakes | 13.8 ft | 11.8 ft |
|---|
| Height to Top of ROPS | 98.9 in | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | n/a (ROPS model) |
|---|
| Overall Length | 155.9 in | 138.0 in |
|---|
|
|---|
| Tractor Weight (Base) | 6,151 lb | 5,027 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 | Standard: 9.5-24 front, 16.9-30 rear |
|---|
| R1 Agricultural - Front | 11.2-24 | 9.5-24 |
|---|
| R1 Agricultural - Rear | 18.4-30 | 16.9-30 |
|---|
| R3 Turf - Front | 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) | 9.5-24 or LSW305-521 |
|---|
| R3 Turf - Rear | 18.4-26 R3 or 19.5L-24 R3 | 18.4-26 or LSW570-648 |
|---|
| R4 Industrial - Front | 9.5L-15 F2 (rib front paired with the R4 rear) | 14-17.5 |
|---|
| R4 Industrial - Rear | 19.5L-24 R4 | 16.9-24 |
|---|
|
|---|
| Quick Attach Loader System | Quick coupler, standard; Euro-type quick coupler, optional; tool-free attach and detach; single-lever hydraulic hose coupler, optional | LA1154A: 2-Lever Quick Coupler |
|---|
| Loader Model | LA1854 | LA1154A |
|---|
| Loader Lift Height | 145.7 in (height position); 131.9 in (power position) | Height position: 132.7 in; Power position: 117.2 in |
|---|
| Loader Lift Capacity (Full Height) | 3,990 lb (height position); 4,144 lb (power position) | Height position: 2,469 lb; Power position: 2,928 lb |
|---|
| Loader Breakout Force | LA1854: 5,501 lb at bucket pivot pin (height position); 6,470 lb at bucket pivot pin (power position) | Height position: 4,230 lbf; Power position: 5,354 lbf |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours | Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours |
|---|
|
|---|
