| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V3800CR-TIEF4 | V3307-DI |
|---|
| Engine Type | 4-cylinder, turbocharged and intercooled, common-rail diesel, DPF, DOC and SCR | 4-cylinder inline, direct injected diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 230 in³ | 203 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2600 rpm |
|---|

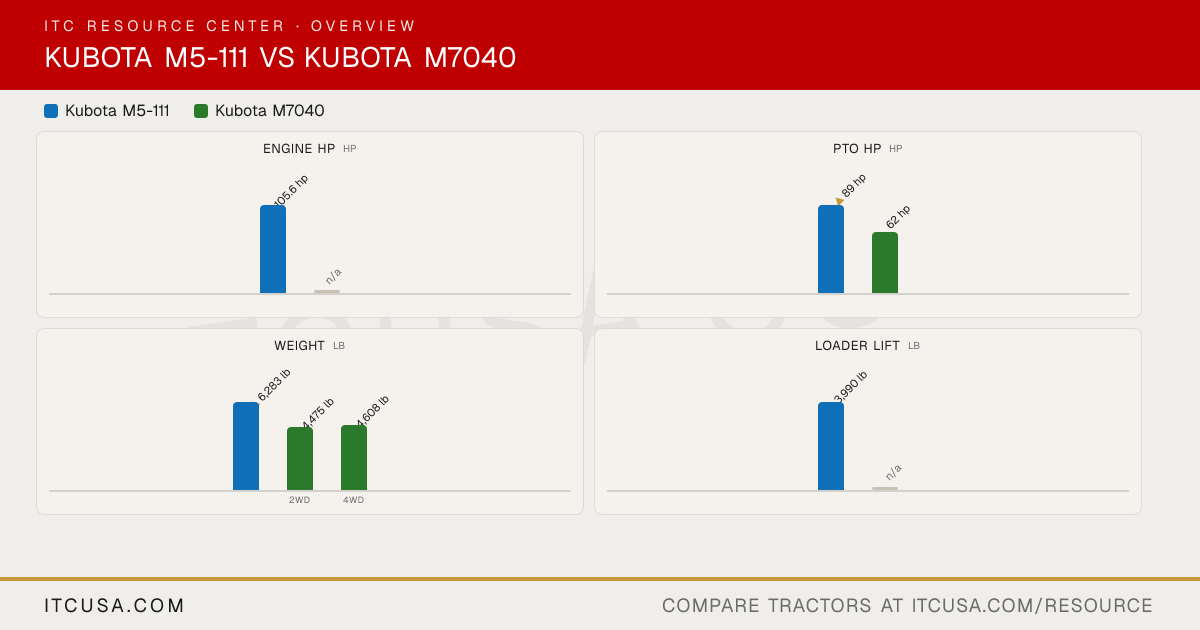

| Engine Power (Gross) | 105.6 hp | Not Published |
|---|
| PTO Power | 89 hp | 62 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 2 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry paper, dual element, 8 in diameter, with pre-cleaner | 8 in dry, dual element |
|---|
| Fuel System | Common rail direct injection | Direct injection |
|---|
| Alternator | 60 A | ROPS: 45 A, 12 V; Cab: 60 A, 12 V |
|---|
|
|---|
| Pump Type | Gear pump | Not Published |
|---|
| Implement Flow | 15.7 gpm | 11.0 gpm |
|---|
| Steering Flow | 5.4 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 21.3 gpm | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Overall Hydraulic Pump Flow | 21.3 gpm | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 15.7 gpm | 11.0 gpm |
|---|
| No. of Standard Remote Valves | 2 (max 3) | 1 |
|---|
| No. of Optional Remote Valves | 1 (3 maximum) | 2nd and 3rd optional |
|---|
|
|---|
| Fuel Tank Capacity | 27.7 gal | ROPS: 18.5 gal; Cab: 29.1 gal |
|---|
| Coolant Capacity | 11 qt | 8.5 qt |
|---|
| Crankcase Capacity | 11.3 qt | 11.6 qt |
|---|
| Transmission / Hydraulic System Capacity | 63.4 qt | 59.2 qt |
|---|
| Front Axle Fluid Capacity | 6.3 qt (differential) plus 3.7 qt (each bevel gear case) | Front differential case: 5.8 qt; front axle gear case: 3.7 qt |
|---|
|
|---|
| PTO Type | Live-independent PTO, electro-hydraulic clutch with brake | Live, independent PTO, hydraulically operated wet clutch with PTO brake |
|---|
| PTO Rear | 540 rpm (540/540E optional) | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category I and II |
|---|
| Hitch Lift Capacity | 7,055 lb (8,600 lb optional) | 4,189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 5,181 lb | 3,307 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mixed control | Position, draft (top link sensing) and mix control |
|---|
|
|---|
| Transmission Type | Fully synchronized main gear shift with electro-hydraulic shuttle | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models |
|---|
| No. of Speeds | 8 forward, 8 reverse | 8F/8R (12F/12R with optional creep) |
|---|
| Max Travel Speed (Forward) | 18.6 mph | 18.5 mph |
|---|
| Max Travel Speed (Reverse) | 18.4 mph | Not Published |
|---|
| Clutch | Multiple wet disc | Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle) |
|---|
| Differential Lock & Limited Slip Options | Front: limited-slip differential; Rear: mechanical differential lock | Rear differential lock (bevel gears) |
|---|
|
|---|
| Frame Type | Not Published | Two-post ROPS (canopy optional); Ultra Grand Cab optional |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Hydraulic wet disc | Mechanically operated wet disc brakes |
|---|
| Seat Suspension & Adjustability | Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest | Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab) |
|---|
| Front Axle Type | Bevel gear type with 55 degree turning angle (4WD) | 4WD: bevel-gear type, on-the-go engagement |
|---|
| Front Axle Rating | 5,730 lb | Not Published |
|---|
| Drawbar Capacity | 3,300 lb | 2,200 lb |
|---|
|
|---|
| Overall Width | 79.1 in | 73.2 in |
|---|
| Wheelbase | 88.6 in | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in |
|---|
| Ground Clearance | 17.7 in (drawbar bracket) | 16.3 in |
|---|
| Min. Turn Radius without Brakes | 13.8 ft | 2WD: 11.2 ft; 4WD: 11.8 ft |
|---|
| Height to Top of ROPS | 99.8 in | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | 100.2 in |
|---|
| Overall Length | 155.9 in | 2WD: 140.4 in; 4WD: 135.6 in |
|---|
|
|---|
| Tractor Weight (Base) | 6,283 lb | 2WD: 4,475 lb; 4WD: 4,608 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 | Standard: 7.5-16 (2WD) or 9.5-24 (4WD) front, 16.9-30 rear |
|---|
| R1 Agricultural - Front | 12.4-24 | 2WD: 7.5-16; 4WD: 9.5-24 |
|---|
| R1 Agricultural - Rear | 18.4-30 | 16.9-30 |
|---|
| R3 Turf - Front | 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) | 29x12.5-15 or 27x9.5-15 |
|---|
| R3 Turf - Rear | 18.4-26 R3 or 19.5L-24 R3 | 18.4-26 or 21.5L-16.1 |
|---|
| R4 Industrial - Front | 9.5L-15 F2 (rib front paired with the R4 rear) | 14-17.5L (4WD) |
|---|
| R4 Industrial - Rear | 19.5L-24 R4 | 16.9-24 (4WD) |
|---|
|
|---|
| Quick Attach Loader System | Quick coupler, standard; Euro-type quick coupler, optional; tool-free attach and detach; single-lever hydraulic hose coupler, optional | LA1153: two-lever quick coupler |
|---|
| Loader Model | LA1854 | LA1153 |
|---|
| Loader Lift Height | 145.7 in (height position); 131.9 in (power position) | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in |
|---|
| Loader Lift Capacity (Full Height) | 3,990 lb (height position); 4,144 lb (power position) | Not Published |
|---|
| Loader Breakout Force | LA1854: 5,501 lbf (height position); 6,470 lbf (power position) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours | Not Published |
|---|
