| Engine Manufacturer | Kubota | FPT Industrial |
|---|
| Engine Model | V3800CR-TIEF4 | F5G |
|---|
| Engine Type | 4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel | 4-cylinder diesel, turbocharged and aftercooled |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 230 in³ | 207 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2300 rpm |
|---|

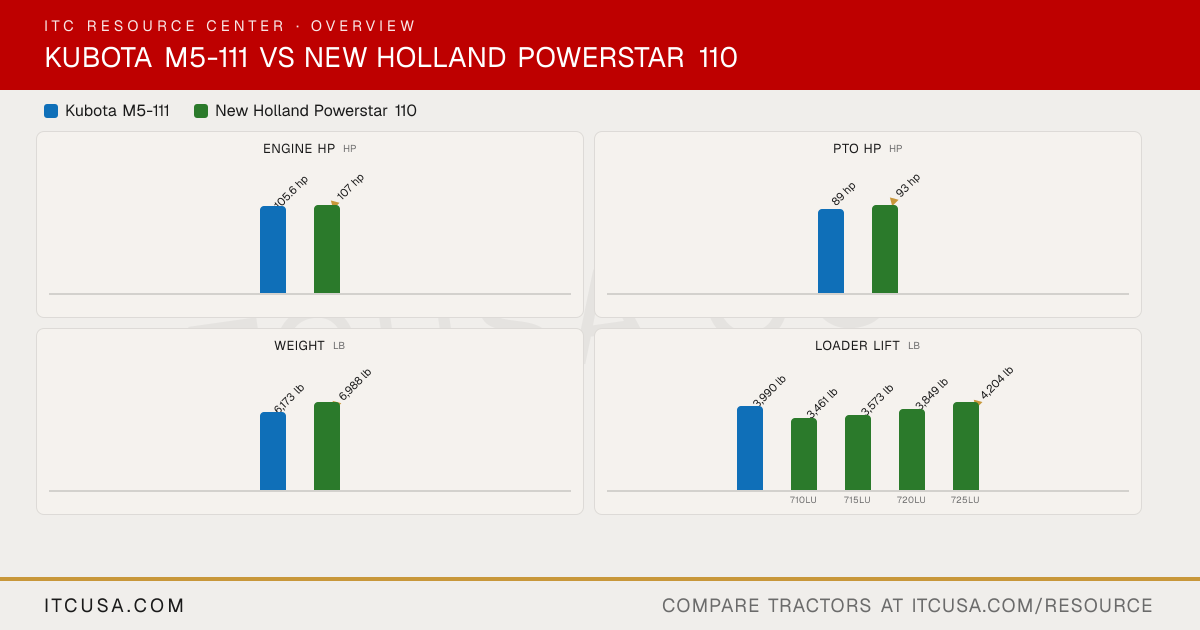

| Engine Power (Gross) | 105.6 hp | 107 hp |
|---|
| PTO Power | 89 hp | 93 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry paper, dual element, 8 in diameter, with pre-cleaner | Not Published |
|---|
| Fuel System | Common rail direct injection | Electronic high-pressure common rail fuel injection |
|---|
| Alternator | 60 A, 12 V | ROPS: 120 A; Cab: 150 A |
|---|
|
|---|
| Pump Type | Gear pump | Open-center; dual pumps (implement pump plus dedicated steering pump) |
|---|
| Implement Flow | 15.9 gpm | 16.9 gpm |
|---|
| Steering Flow | 5.4 gpm | 9.7 gpm |
|---|
| Total Hydraulic Flow | 21.3 gpm | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | 21.3 gpm | 26.6 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 15.9 gpm | Not Published |
|---|
| No. of Standard Remote Valves | 1 standard (3 maximum) | 2 rear remotes (open center with detent) |
|---|
| No. of Optional Remote Valves | 2 optional (3 maximum) | 1 (third rear remote, DIA kit) |
|---|
|
|---|
| Fuel Tank Capacity | 27.7 gal | 30.3 gal |
|---|
| Coolant Capacity | 11 qt | Not Published |
|---|
| Crankcase Capacity | 11.3 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 15.9 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 6.3 qt (differential) plus 3.7 qt (each bevel gear case) | Not Published |
|---|
|
|---|
| PTO Type | Live-independent PTO, electro-hydraulic clutch with brake | Fully independent hydraulic PTO |
|---|
| PTO Rear | 540 rpm (540/540E on 12-speed models) | 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | 7055 lb (8860 lb optional) | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 5181 lb (8-speed); 7275 lb (12- and 24-speed) | 5,620 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mixed control | Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) |
|---|
|
|---|
| Transmission Type | Fully synchronized main gear shift with electro-hydraulic shuttle (Hi-Lo dual speed on HDC24) | 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) |
|---|
| No. of Speeds | 8 forward, 8 reverse (8-speed models); 12 forward, 12 reverse (12-speed models); 24 forward, 24 reverse (HDC24) | 12F/12R (standard); 20F/20R with creeper (optional) |
|---|
| Max Travel Speed (Forward) | 18.6 mph (8-speed); 23.6 mph (12-speed); 23.4 mph (24-speed) | 27 mph (4WD front axle); 20 mph (2WD front axle) |
|---|
| Max Travel Speed (Reverse) | 18.4 mph (8-speed); 23.5 mph (12-speed) | 27.25 mph (12x12, 4WD front axle, 18R34 tires) |
|---|
| Clutch | Multiple wet disc | Not Published |
|---|
| Differential Lock & Limited Slip Options | Limited slip differential (front); mechanical differential lock (rear) | Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Hydraulic wet disc | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest | Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests |
|---|
| Front Axle Type | Bevel gear type with 55 degree turning angle (4WD) | Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) |
|---|
| Front Axle Rating | 5730 lb | 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) |
|---|
| Drawbar Capacity | 3300 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 155.9 in | 163.1 in (2WD); 160.9 in (4WD) |
|---|
| Overall Width | 79.1 in | 75.7 in |
|---|
| Wheelbase | 88.6 in | 92.2 in (2WD); 89.9 in (4WD) |
|---|
| Ground Clearance | 19.7 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 13.8 ft | 134 in (optional 2WD front axle, w/o brakes) |
|---|
| Height to Top of ROPS | 99.8 in | 106.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 101.2 in | 102.1 in |
|---|
|
|---|
| Tractor Weight (Base) | 6173 lb | 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 | 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions |
|---|
| R1 Agricultural - Front | 12.4-24 | 2WD: 10.00-16; 4WD: 12.4-24 |
|---|
| R1 Agricultural - Rear | 18.4-30 | 18.4R34 (reference tire for OEM weights and dimensions) |
|---|
| R3 Turf - Front | 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) | Not Published |
|---|
| R3 Turf - Rear | 18.4-26 R3 or 19.5L-24 R3 | Not Published |
|---|
| R4 Industrial - Front | 9.5L-15 F2 (rib front paired with the R4 rear) | Not Published |
|---|
| R4 Industrial - Rear | 19.5L-24 R4 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick coupler standard (Euro type optional); quick-mount loader attach and detach without tools; single-lever hydraulic hose quick coupler optional | Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) |
|---|
| Loader Model | LA1854 | 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) |
|---|
| Loader Lift Height | 145.7 in (height position); 131.9 in (power position) | 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in |
|---|
| Loader Lift Capacity (Full Height) | 3990 lb (height position); 4144 lb (power position) | 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb |
|---|
| Loader Breakout Force | LA1854: 5,501 lb (height position); 6,470 lb (power position) | 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) |
|---|
|
|---|
| Warranty Length & Coverage | 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours. | Not Published |
|---|
