Kubota M5660SUH vs Kubota M5700
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota M5660SUH leads 5 categories to 3. Machine pages: Kubota M5660SUH and Kubota M5700.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

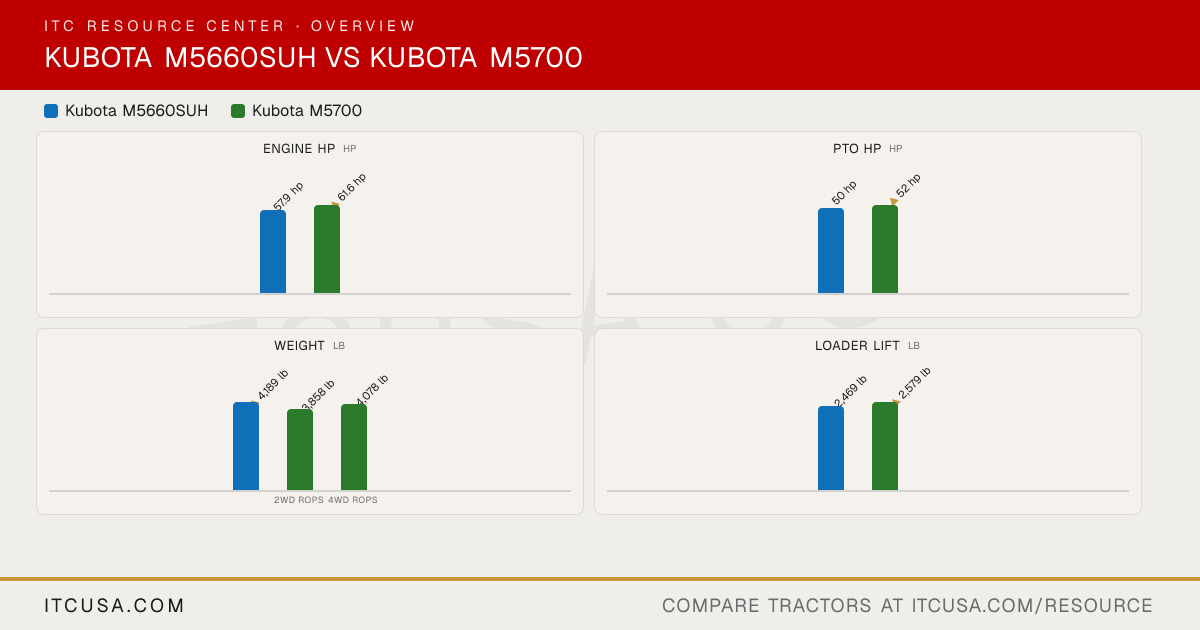

Category Verdict
| Spec | Kubota M5660SUH | Kubota M5700 |
|---|---|---|
| Engine HP (hp) | 57.9 hp | ▲ 61.6 hp |
| PTO HP (hp) | 50 hp | ▲ 52 hp |
| Weight (lb) | ▲ 4,189 lb | 4,078 lb |
| Loader Lift (lb) | 2,469 lb | ▲ 2,579 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,307 lb | 2,840 lb |
| Lift Height (in) | ▲ 130.9 in | 115.6 in |
| Breakout Force (lbf) | ▲ 4,230 lbf | 3,330 lbf |
| Hydraulic Flow (gpm) | ▲ 16.5 gpm | 11 gpm |
| Travel Speed (mph) | 18.2 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaM5660SUH | KubotaM5700 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403-CR-TE4 | F2803 |
| Engine Type | 4-cylinder in-line, common rail direct injection, turbocharged diesel | Diesel, 5-cylinder, liquid-cooled |
| No. of Cylinders | 4 | 5 |
| Displacement | 148.5 in³ | 167.5 in³ |
| Rated Engine Speed | 2600 rpm | 2800 rpm |
| Engine Power (Gross) | 57.9 hp | 61.6 hp |
| PTO Power | 50 hp | 52 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled, pressurized radiator with recovery tank | Liquid-cooled |
| Air Cleaner | Dry paper dual element, 8 in diameter, pre-cleaner standard | Two paper elements |
| Fuel System | Common rail direct injection | Indirect injection |
| Alternator | 45 A | Not Published |
Kubota M5660SUH vs Kubota M5700: Quick Answers
- Which has more horsepower, the Kubota M5660SUH or the Kubota M5700?
- The Kubota M5700 leads on engine hp at 61.6 hp hp, compared to 57.9 hp hp for the Kubota M5660SUH.
- Which has more PTO horsepower, the Kubota M5660SUH or the Kubota M5700?
- The Kubota M5700 leads on pto hp at 52 hp hp, compared to 50 hp hp for the Kubota M5660SUH.
- Which is heavier, the Kubota M5660SUH or the Kubota M5700?
- The Kubota M5660SUH leads on weight at 4,189 lb lb, compared to 4,078 lb lb for the Kubota M5700.
- Which has more loader lift capacity, the Kubota M5660SUH or the Kubota M5700?
- The Kubota M5700 leads on loader lift at 2,579 lb lb, compared to 2,469 lb lb for the Kubota M5660SUH.
- Which has more three-point hitch lift capacity, the Kubota M5660SUH or the Kubota M5700?
- The Kubota M5660SUH leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,840 lb lb for the Kubota M5700.
