| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V3307-DI | V2403CR-T |
|---|
| Engine Type | 4-cylinder inline, direct injected diesel | Liquid-cooled, diesel, 4-cylinder, Turbocharged |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 203 in³ | 148.6 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2700 rpm |
|---|

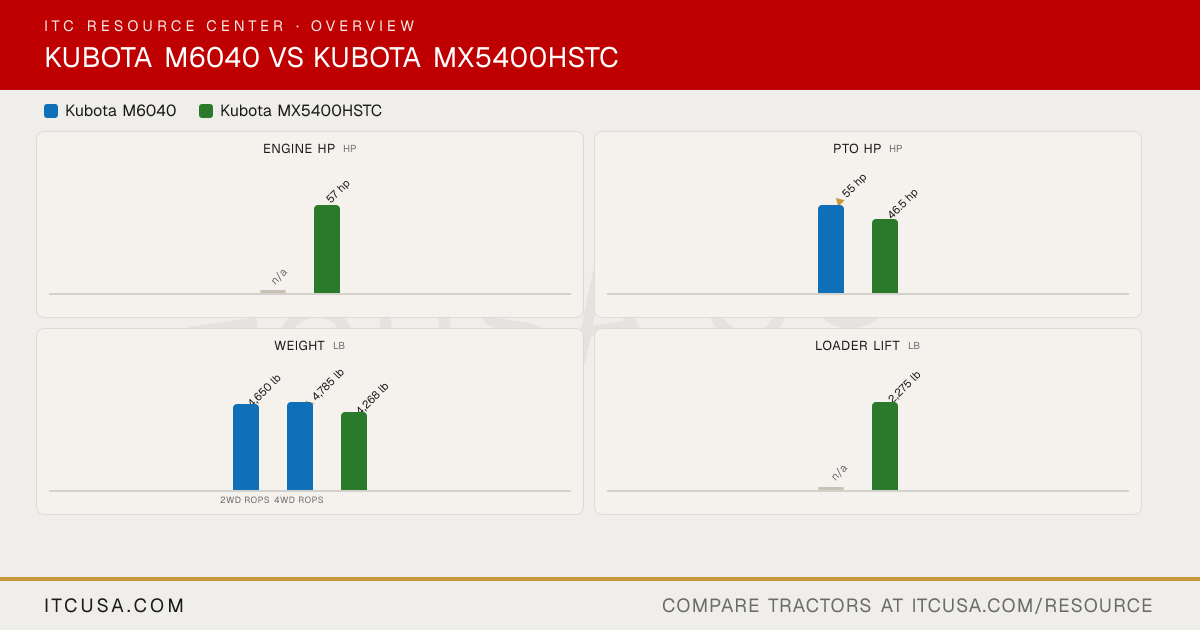

| Engine Power (Gross) | Not Published | 57 hp |
|---|
| PTO Power | 55 hp | 46.5 hp |
|---|
| Engine Emissions Constraints | Tier 2 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | 8 in dry, dual element | Dry-dual element |
|---|
| Fuel System | Direct injection | Common Rail System (CRS), direct injection |
|---|
| Alternator | ROPS: 45 A, 12 V; Cab: 60 A, 12 V | 60 A |
|---|
|
|---|
| Pump Type | Not Published | Gear |
|---|
| Implement Flow | 11.0 gpm | 9.5 gpm |
|---|
| Steering Flow | 6.1 gpm | 4.9 gpm |
|---|
| Total Hydraulic Flow | 17.1 gpm (11.0 + 6.1, computed) | 14.4 gpm (9.5 + 4.9, computed) |
|---|
| Overall Hydraulic Pump Flow | 17.1 gpm (11.0 + 6.1, computed) | 14.4 gpm (9.5 + 4.9, computed) |
|---|
| Hydraulic System Type | Open center | Open Center |
|---|
| Rear Remote Hydraulic Flow | 11.0 gpm | Not Published |
|---|
| No. of Standard Remote Valves | 1 | Not Published |
|---|
| No. of Optional Remote Valves | 2nd and 3rd optional | Maximum 3 (opt) |
|---|
|
|---|
| Fuel Tank Capacity | ROPS: 18.5 gal; Cab: 29.1 gal | 11.9 gal |
|---|
| Coolant Capacity | 8.5 qt | 6.9 qt |
|---|
| Crankcase Capacity | 11.6 qt | 7.4 qt |
|---|
| Transmission / Hydraulic System Capacity | 59.2 qt | 11.6 gal |
|---|
| Front Axle Fluid Capacity | Front differential case: 5.8 qt; front axle gear case: 3.7 qt each side | 8.9 qt |
|---|
|
|---|
| PTO Type | Live, independent PTO, hydraulically operated wet clutch with PTO brake | Live independent, hydraulic PTO with PTO brake, wet clutch |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I and II | I & II |
|---|
| Hitch Lift Capacity | 4,189 lb | 2,870 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,307 lb | 2,310 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mix control | Position (std), Draft (opt) |
|---|
|
|---|
| Transmission Type | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models | 3-range hydrostatic (HST) |
|---|
| No. of Speeds | 8F/8R (12F/12R with optional creep) | 3-range |
|---|
| Max Travel Speed (Forward) | 17.8 mph | 17.7 mph |
|---|
| Max Travel Speed (Reverse) | 18.0 mph | 16.0 mph |
|---|
| Clutch | Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle) | No clutch |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (bevel gears) | Rear differential lock standard (mechanical) |
|---|
|
|---|
| Frame Type | Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Multiple wet disc, mechanical | Mechanical wet disc |
|---|
| Seat Suspension & Adjustability | Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab) | High-back suspension seat (optional arm rests) |
|---|
| Front Axle Type | 4WD: bevel-gear type, on-the-go engagement | Bevel gear type (4WD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 2,200 lb | 1,650 lb |
|---|
|
|---|
| Overall Width | 73.2 in | 69.7 in |
|---|
| Wheelbase | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in | 74.6 in |
|---|
| Ground Clearance | 15.4 in | 15.2 in |
|---|
| Min. Turn Radius without Brakes | 2WD: 11.2 ft; 4WD: 11.8 ft | 8.9 ft (with brake applied) |
|---|
| Height to Top of ROPS | 96.9 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.8 in | 92.7 in |
|---|
| Overall Length | 2WD: 140.4 in; 4WD: 135.6 in | 125.9 in (without 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | 2WD ROPS: 4,650 lb; 4WD ROPS: 4,785 lb | 4,268 lb (with cab) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear | 9.5-16 / 14.9-26 |
|---|
| R1 Agricultural - Front | 2WD: 7.5-16; 4WD: 9.5-24 | 9.5-16 |
|---|
| R1 Agricultural - Rear | 16.9-28 | 14.9-26 |
|---|
| R3 Turf - Front | 2WD: 29x12.5-15 or 27x9.5-15 | Not Published |
|---|
| R3 Turf - Rear | 2WD: 21.5L-16.1 or 16.9-24 | Not Published |
|---|
| R4 Industrial - Front | 12.5/80-18 (4WD) | Not Published |
|---|
| R4 Industrial - Rear | 16.9-24 (4WD) | Not Published |
|---|
|
|---|
| Quick Attach Loader System | LA1153: two-lever quick coupler | 1065A: 2-Lever Quick Coupler for Loader Attachment |
|---|
| Loader Model | LA1153 | LA1065 |
|---|
| Loader Lift Height | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in | 111.2 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | Not Published | 2,275 lb (at pivot pin) |
|---|
| Loader Breakout Force | Not Published | 3,102 lbf |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours |
|---|
|
|---|
