| Engine Manufacturer | Kubota | LS |
|---|
| Engine Model | V3307-DI | L3C19-T |
|---|
| Engine Type | 4-cylinder inline, direct injected diesel | 3-cylinder in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 203 in³ | 114.7 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

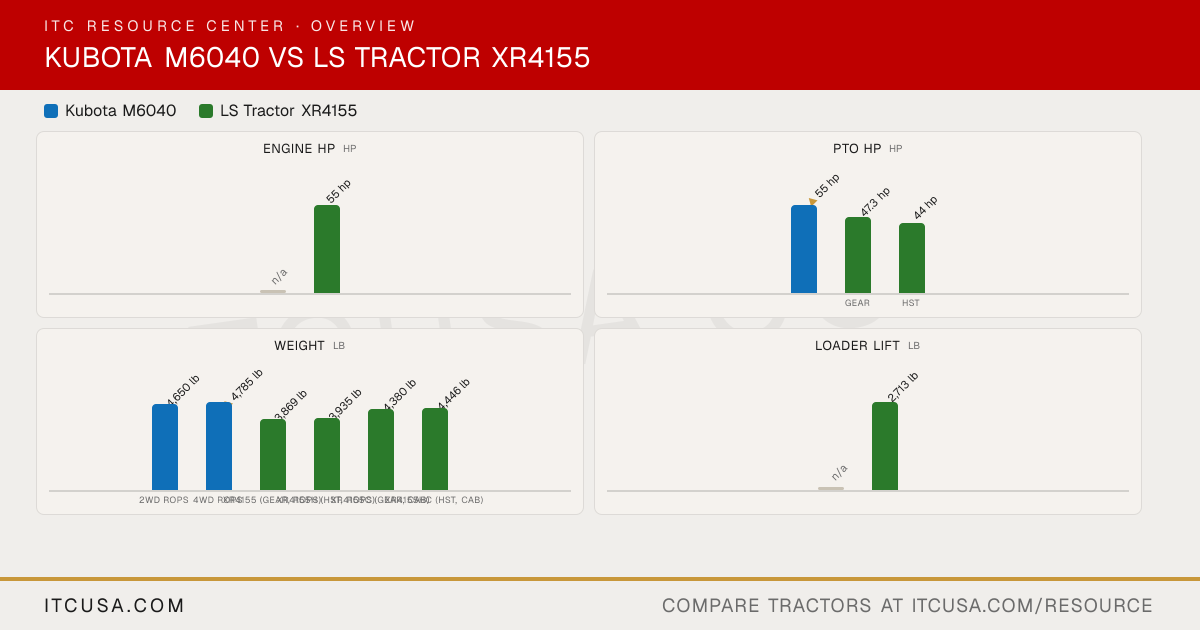

| Engine Power (Gross) | Not Published | 55 hp |
|---|
| PTO Power | 55 hp | XR4155, XR4155C (gear): 47.3 hp; XR4155H, XR4155HC (HST): 44 hp |
|---|
| Engine Emissions Constraints | Tier 2 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Water-cooled |
|---|
| Air Cleaner | 8 in dry, dual element | Dry |
|---|
| Fuel System | Direct injection | CRDI (common rail direct injection) |
|---|
| Alternator | ROPS: 45 A, 12 V; Cab: 60 A, 12 V | 70 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Gear pump, engine driven |
|---|
| Implement Flow | 11.0 gpm | 8.2 gpm |
|---|
| Steering Flow | 6.1 gpm | XR4155, XR4155C (gear): 4.1 gpm; XR4155H, XR4155HC (HST): 6.2 gpm |
|---|
| Total Hydraulic Flow | 17.1 gpm (11.0 + 6.1, computed) | XR4155, XR4155C (gear): 12.3 gpm; XR4155H, XR4155HC (HST): 13.7 gpm |
|---|
| Overall Hydraulic Pump Flow | 17 gpm | XR4155, XR4155C (gear): 12.3 gpm; XR4155H, XR4155HC (HST): 13.7 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | 11.0 gpm | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 2 pairs |
|---|
| No. of Optional Remote Valves | 2nd and 3rd optional | 1 or 3 optional (2 or 6 quick couplers) |
|---|
|
|---|
| Fuel Tank Capacity | ROPS: 18.5 gal; Cab: 29.1 gal | XR4155, XR4155H (ROPS): 10.6 gal; XR4155C, XR4155HC (cab): 12.4 gal |
|---|
| Coolant Capacity | 8.5 qt | 2.3 gal |
|---|
| Crankcase Capacity | 11.6 qt | 1.6 gal |
|---|
| Transmission / Hydraulic System Capacity | 10.6 gal | 11.4 gal |
|---|
| Front Axle Fluid Capacity | 8.5 qt | 2.1 gal |
|---|
|
|---|
| PTO Type | Live independent PTO, hydraulically operated wet clutch with PTO brake | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Optional, 2000 rpm |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | 4189 lb | 2,755 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3307 lb | 2,469 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mix control | Position and draft control |
|---|
|
|---|
| Transmission Type | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models | XR4155, XR4155C (gear): Synchro shuttle; XR4155H, XR4155HC (HST): HST |
|---|
| No. of Speeds | 8F/8R (12F/12R with optional creep) | XR4155, XR4155C (gear): F16 x R16; XR4155H, XR4155HC (HST): 3 ranges (HST) |
|---|
| Max Travel Speed (Forward) | 18 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 18.0 mph | Not Published |
|---|
| Clutch | Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle) | Mechanical: dry single clutch; HST: not applicable |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (bevel gears) | Mechanical differential lock (pedal) |
|---|
|
|---|
| Frame Type | Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Multiple wet disc, mechanical | Wet, multi-disc |
|---|
| Seat Suspension & Adjustability | Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab) | Not Published |
|---|
| Front Axle Type | 4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 2200 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 2WD: 140.4 in; 4WD: 135.6 in | 133 in |
|---|
| Overall Width | 73.2 in | 62.5 in |
|---|
| Wheelbase | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in | 73.2 in |
|---|
| Ground Clearance | 15.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 2WD: 11.2 ft; 4WD: 11.8 ft | 9.5 ft (with brake applied) |
|---|
| Height to Top of ROPS | 96.9 in | 93 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.8 in | 92 in |
|---|
|
|---|
| Tractor Weight (Base) | 2WD ROPS: 4650 lb; 4WD ROPS: 4785 lb | XR4155 (gear, ROPS): 3,869 lb; XR4155H (HST, ROPS): 3,935 lb; XR4155C (gear, cab): 4,380 lb; XR4155HC (HST, cab): 4,446 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear | Ag, industrial or turf tires at no additional cost |
|---|
| R1 Agricultural - Front | 2WD: 7.50-16; 4WD: 9.5-24 | 9.5-16 |
|---|
| R1 Agricultural - Rear | 16.9-28 | 13.6-24 |
|---|
| R3 Turf - Front | 2WD: 29x12.5-15 or 27x9.5-15 | 28x8.5-15 |
|---|
| R3 Turf - Rear | 2WD: 21.5L-16.1 or 16.9-24 | 41x14-20 |
|---|
| R4 Industrial - Front | 12.5/80-18 (4WD) | 12-16.5 |
|---|
| R4 Industrial - Rear | 16.9-24 (4WD) | 17.5L-24 |
|---|
|
|---|
| Quick Attach Loader System | LA1153: two-lever quick coupler | LL4104: quick attach, skid steer compatible |
|---|
| Loader Model | LA1153 | LL4104 |
|---|
| Loader Lift Height | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in | LL4104: 96.3 in |
|---|
| Loader Lift Capacity (Full Height) | Not Published | LL4104: 2,713 lb |
|---|
| Loader Breakout Force | Not Published | LL4104: 3,802 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 5-year limited warranty |
|---|
