Kubota M6060 vs Kubota M7040

Across 6 measurable specs, the Kubota M7040 leads 2 categories to 1 (3 tied). Machine pages: Kubota M6060 and Kubota M7040.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

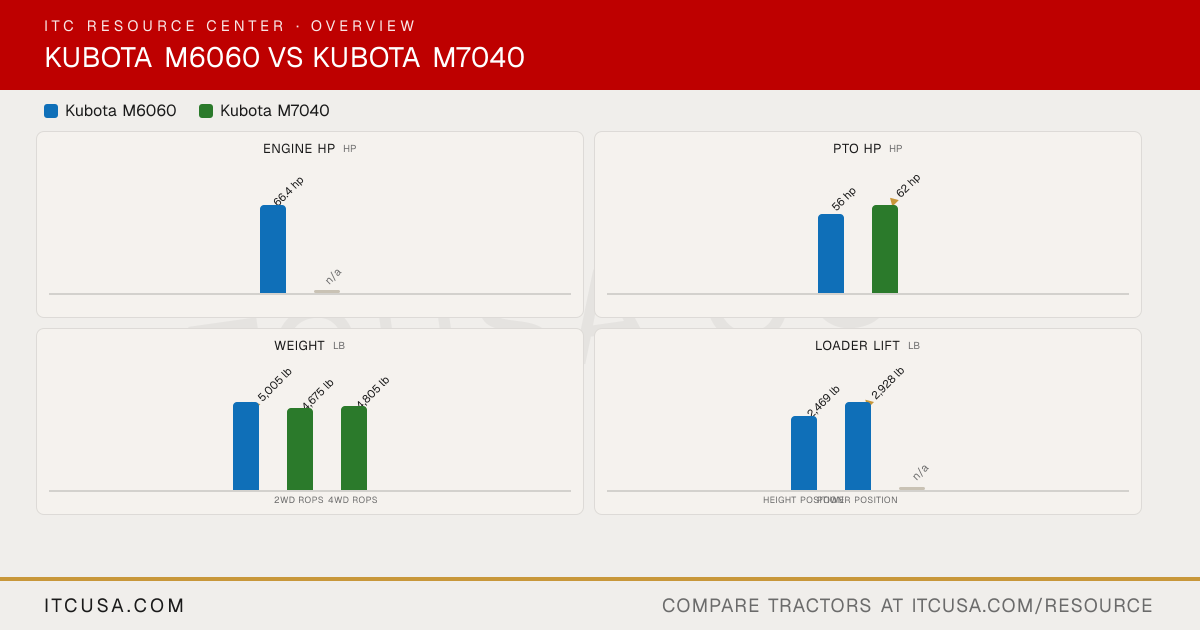

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM6060	KubotaM7040

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V3307-CR-TE4	V3307-DI
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	4-cylinder inline, direct injected diesel
No. of Cylinders	4	4
Displacement	203 in³	203 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	66.4 hp	Not Published
PTO Power	56 hp	62 hp
Engine Emissions Constraints	Tier 4	Tier 2
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry paper, dual element, 8 in diameter, with pre-cleaner	8 in dry, dual element
Fuel System	Common Rail System (CRS)	Direct injection
Alternator	45 A, 12 V	ROPS: 45 A, 12 V; Cab: 60 A, 12 V
▶Hydraulics
Pump Type	Gear	Not Published
Implement Flow	11.0 gpm	11.0 gpm
Steering Flow	6.1 gpm	6.1 gpm
Total Hydraulic Flow	17.1 gpm	17.1 gpm (11.0 + 6.1, computed)
Overall Hydraulic Pump Flow	17.1 gpm	17.2 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	11.0 gpm	11.0 gpm
No. of Standard Remote Valves	1 (SCD)	1
No. of Optional Remote Valves	2nd, 3rd (optional)	2nd and 3rd optional
▶Fluid Capacity
Fuel Tank Capacity	18.5 gal	ROPS: 18.5 gal; Cab: 29.1 gal
Coolant Capacity	8.5 qt	8.5 qt
Crankcase Capacity	12.7 qt	11.6 qt
Transmission / Hydraulic System Capacity	14.8 gal	10.6 gal
Front Axle Fluid Capacity	5.8 qt (differential) plus 3.7 qt (each bevel gear case)	8.5 qt
▶PTO & Hitch
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Live independent PTO, hydraulically operated wet clutch with PTO brake
PTO Rear	540 rpm (540/540E optional)	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	I / II	Category II
Hitch Lift Capacity	4189 lb	4189 lb
Hitch Lift Capacity (at 24”)	3307 lb	3307 lb
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position, draft (top link sensing) and mix control
▶Transmission & Drivetrain
Transmission Type	Hydraulic-shuttle transmission (fully synchronized)	Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models
No. of Speeds	F8/R8	8F/8R (12F/12R with optional creep)
Max Travel Speed (Forward)	18.0 mph	18.7 mph
Max Travel Speed (Reverse)	17.7 mph	Not Published
Clutch	Multiple wet disc	Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle)
Differential Lock & Limited Slip Options	Rear differential lock standard (mechanical)	Rear differential lock (bevel gears)
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS	Two-post ROPS (canopy optional); Ultra Grand Cab optional
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanical wet disc	Mechanically operated wet disc brakes
Seat Suspension & Adjustability	Fully adjustable suspension seat (travel, suspension tension, backrest tilt, arm rests); optional air ride seat on cab models	Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab)
Front Axle Type	Bevel gear type with 55 degree turning angle (4WD)	4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling
Front Axle Rating	5290 lb (6615 lb with loader)	Not Published
Drawbar Capacity	2200 lb	2200 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	138.0 in	2WD: 140.4 in; 4WD: 135.6 in
Overall Width	73.0 in	73.2 in
Wheelbase	83.1 in	2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in
Ground Clearance	18.1 in	16.3 in
Min. Turn Radius without Brakes	11.8 ft	2WD: 11.2 ft; 4WD: 11.8 ft
Height to Top of ROPS	96.9 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	100.6 in	100.2 in
▶Weight
Tractor Weight (Base)	5005 lb	2WD ROPS: 4675 lb; 4WD ROPS: 4805 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard: 9.5-24 front, 16.9-28 rear	Standard: 7.5-16 (2WD) or 9.5-24 (4WD) front, 16.9-30 rear
R1 Agricultural - Front	9.5-24	2WD: 7.5-16; 4WD: 9.5-24
R1 Agricultural - Rear	16.9-28/14.9-28	16.9-30
R3 Turf - Front	LSW305-521	29x12.5-15 or 27x9.5-15
R3 Turf - Rear	LSW570-648	18.4-26 or 21.5L-16.1
R4 Industrial - Front	12.5/80-18	14-17.5L (4WD)
R4 Industrial - Rear	16.9-24	16.9-24 (4WD)
▶Loader & Attachments
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	LA1153: two-lever quick coupler
Loader Model	LA1154A	LA1153
Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	LA1153 height position: 132.7 in; LA1153 power position: 117.2 in
Loader Lift Capacity (Full Height)	Height position: 2469 lb; Power position: 2928 lb	Not Published
Loader Breakout Force	Height position: 4230 lbf; Power position: 5354 lbf	Not Published
▶Warranty
Warranty Length & Coverage	24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota M6060/M7060/M4 Series Brush Guard Insert $287.00	None tagged yet

Find a Kubota dealer near you→

Kubota M6060 vs Kubota M7040: Quick Answers

Which has more PTO horsepower, the Kubota M6060 or the Kubota M7040?

The Kubota M7040 leads on pto hp at 62 hp hp, compared to 56 hp hp for the Kubota M6060.

Which is heavier, the Kubota M6060 or the Kubota M7040?

The Kubota M6060 leads on weight at 5,005 lb lb, compared to 4,805 lb lb for the Kubota M7040.

Which has more three-point hitch lift capacity, the Kubota M6060 or the Kubota M7040?

They are effectively tied: both machines are rated at 3,307 lb lb for 3-pt lift (24 in).
