Which has more horsepower, the Kubota M6060 or the Kubota MX6000?

The Kubota M6060 leads on engine hp at 66.4 hp hp, compared to 63.4 hp hp for the Kubota MX6000.

Which has more PTO horsepower, the Kubota M6060 or the Kubota MX6000?

The Kubota M6060 leads on pto hp at 56 hp hp, compared to 51.8 hp hp for the Kubota MX6000.

Which has more loader lift capacity, the Kubota M6060 or the Kubota MX6000?

The Kubota M6060 leads on loader lift at 2,928 lb lb, compared to 2,275 lb lb for the Kubota MX6000.

Which has more three-point hitch lift capacity, the Kubota M6060 or the Kubota MX6000?

The Kubota M6060 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,310 lb lb for the Kubota MX6000.

Kubota M6060 vs Kubota MX6000

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Kubota M6060 leads 6 categories to 0. Machine pages: Kubota M6060 and Kubota MX6000.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota M6060	Kubota MX6000
Engine HP (hp)	▲ 66.4 hp	63.4 hp
PTO HP (hp)	▲ 56 hp	51.8 hp
Loader Lift (lb)	▲ 2,928 lb	2,275 lb
3-Pt Lift (24 in) (lb)	▲ 3,307 lb	2,310 lb
Lift Height (in)	▲ 132.7 in	111.2 in
Breakout Force (lbf)	—	3,102 lbf
Hydraulic Flow (gpm)	▲ 17.1 gpm	14.4 gpm
Travel Speed (mph)	—	17.7 mph

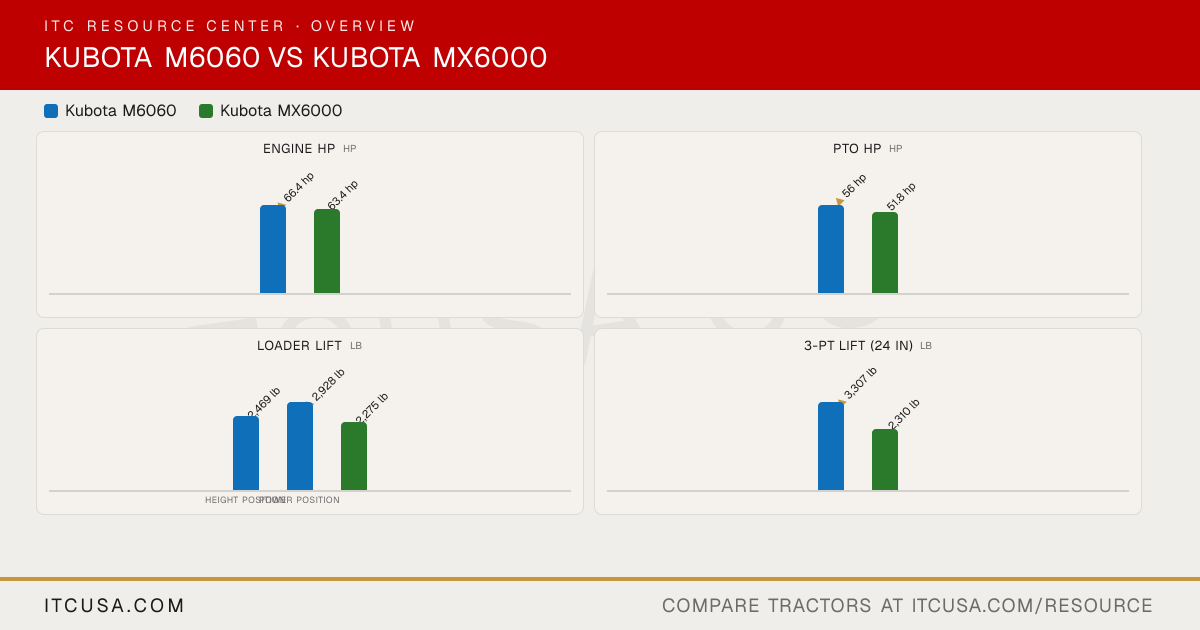

The headline numbers at a glance.

Kubota M6060Kubota MX6000

Engine HPhp

▲66.4 hp

63.4 hp

PTO HPhp

▲56 hp

51.8 hp

Weightlb

—

Loader Liftlb

2,469 lb

▲2,928 lb

2,275 lb

Height positionPower position

3-Pt Lift (24 in)lb

▲3,307 lb

2,310 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM6060	KubotaMX6000


PTO Power	56 hp	51.8 hp
Alternator	45 A, 12 V	45 A, 12 V
Air Cleaner	Not Published	Dry-dual element
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System	Common Rail System (CRS)	Not Published
Displacement	203.3 (3331)	148.6 (2434)
No. of Cylinders	4	4
Rated Engine Speed	2400 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	66.4 hp	63.4 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Gear	Gear
Steering Flow	6.1 gpm	4.9 gpm
Implement Flow	11.0 gpm	9.5 gpm
Total Hydraulic Flow	17.1 gpm	14.4 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.1 gpm	14.4 gpm
No. of Optional Remote Valves	2nd, 3rd (optional)	Maximum 3 (opt)
No. of Standard Remote Valves	1 (SCD)	Not Published

PTO Rear	540 rpm (540/540E optional)	540 rpm
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Live independent, hydraulic PTO with PTO brake, wet clutch
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position (std), Draft (opt)
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	I / II	I & II
Hitch Lift Capacity (at 24”)	3307 lbs	2310 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Standard tire size	Standard tire size
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	16.9-28/14.9-28	14.9-26
R1 Agricultural - Front	HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24	9.5-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	ROPS: 18.5 gal; CAB: 23.8 gal	ROPS: 13.5 gal; CAB: 11.9 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	111.2 in
Loader Breakout Force	Not Published	3102 lb (13798 N)
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Lift Capacity (Full Height)	Height position: 2469 lb; Power position: 2928 lb	2275 lb

Clutch	Multiple wet disc	N/A
No. of Speeds	F8/R8	3-range
Transmission Type	Hydraulic-shuttle transmission (fully synchronized)	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	17.7 mph
Max Travel Speed (Reverse)	Not Published	16.0 mph
Differential Lock & Limited Slip Options	HD/HDC (4WD): Rear differential lock standard (mechanical)	Rear differential lock standard (mechanical)

Brakes	Mechanical wet disc	Mechanical wet disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	High-back suspension seat (optional arm rests)

Wheelbase	HFC (2WD): 84.4 in; HD/HDC (4WD): 83.1 in	74.6 in
Overall Width	73.0 in	69.7 in
Ground Clearance	18.1 in	15.2 in
Height to Top of ROPS	HD (4WD): 96.9 in	95.7 in
Height to Top of Cab Model	HFC (2WD), HDC (4WD): 100.6 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD): 11.8 ft (3.6 m)	Not Published
Overall Length with 3-Point Hitch	HFC (2WD): 142.7 in; HD/HDC (4WD): 138.0 in	Not Published
