Which has more horsepower, the Kubota M6060 or the TYM T654?

The TYM T654 leads on engine hp at 67 hp hp, compared to 66.4 hp hp for the Kubota M6060.

Which has more PTO horsepower, the Kubota M6060 or the TYM T654?

The TYM T654 leads on pto hp at 61.9 hp hp, compared to 56 hp hp for the Kubota M6060.

Which has more loader lift capacity, the Kubota M6060 or the TYM T654?

The TYM T654 leads on loader lift at 3,122 lb lb, compared to 2,928 lb lb for the Kubota M6060.

Which has more three-point hitch lift capacity, the Kubota M6060 or the TYM T654?

The Kubota M6060 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 3,153 lb lb for the TYM T654.

Kubota M6060 vs TYM T654

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Kubota M6060, 3 to the TYM T654. Machine pages: Kubota M6060 and TYM T654.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota M6060	TYM T654
Engine HP (hp)	66.4 hp	▲ 67 hp
PTO HP (hp)	56 hp	▲ 61.9 hp
Weight (lb)	—	7,140 lb
Loader Lift (lb)	2,928 lb	▲ 3,122 lb
3-Pt Lift (24 in) (lb)	▲ 3,307 lb	3,153 lb
Lift Height (in)	▲ 132.7 in	124.8 in
Breakout Force (lbf)	—	5,225 lbf
Hydraulic Flow (gpm)	▲ 17.1 gpm	16.1 gpm
Travel Speed (mph)	—	20.2 mph

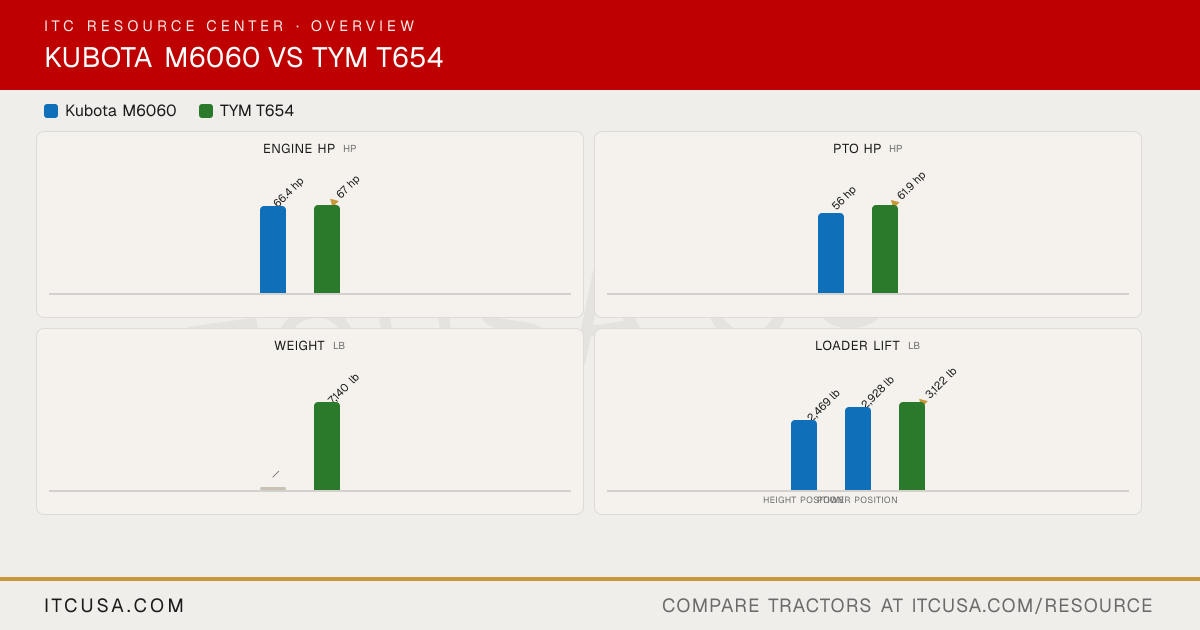

The headline numbers at a glance.

Kubota M6060TYM T654

Engine HPhp

66.4 hp

▲67 hp

PTO HPhp

56 hp

▲61.9 hp

Weightlb

—

7,140 lb

Loader Liftlb

2,469 lb

2,928 lb

▲3,122 lb

Height positionPower position

3-Pt Lift (24 in)lb

▲3,307 lb

3,153 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM6060	TYMT654


PTO Power	56 hp	61.9 hp
Alternator	45 A, 12 V	95 A, 12 V
Air Cleaner	Not Published	Dual dry
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	4-cylinder, turbocharged diesel
Fuel System	Common Rail System (CRS)	CRDI
Displacement	203.3 (3331)	177 in³
No. of Cylinders	4	4
Rated Engine Speed	2400 rpm	2200 rpm
Cooling System Type	Liquid-cooled	Not Published
Engine Manufacturer	Kubota	Deutz
Engine Power (Gross)	66.4 hp	67 hp
Engine Emissions Constraints	Tier 4	Diesel Oxidation Catalyst (DOC)

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	7,140 lb

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Dual gear pump
Steering Flow	6.1 gpm	5.8 gpm
Implement Flow	11.0 gpm	10.3 gpm
Total Hydraulic Flow	17.1 gpm	16.1 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.1 gpm	16.1 gpm
No. of Optional Remote Valves	2nd, 3rd (optional)	Not Published
No. of Standard Remote Valves	1 (SCD)	2

PTO Rear	540 rpm (540/540E optional)	540/750/1,000 rpm
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Independent
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position/Draft/Mech
Hitch Lift Capacity	Not Published	4,270 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	I / II	Category II
Hitch Lift Capacity (at 24”)	3307 lbs	3,153 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Standard tire size	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front	Not Published	Trac Chief 10.5/80-18 NHS TL 10PR
R1 Agricultural - Rear	16.9-28/14.9-28	FSTR 380/85R28 TL (14.9R28)
R1 Agricultural - Front	HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24	FSTR 9.5 R20 TL

Coolant Capacity	Not Published	10.6 qt
Crankcase Capacity	Not Published	8.5 qt
Fuel Tank Capacity	ROPS: 18.5 gal; CAB: 23.8 gal	18.5 gal
Front Axle Fluid Capacity	Not Published	17.3 qt
Transmission / Hydraulic System Capacity	Not Published	11.0 gal

Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	124.8 in
Loader Breakout Force	Not Published	5,225 lb
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	TX65SL: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	Height position: 2469 lb; Power position: 2928 lb	3,122 lb

Clutch	Multiple wet disc	M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds	F8/R8	F24 x R24
Transmission Type	Hydraulic-shuttle transmission (fully synchronized)	Synchro-shuttle
Max Travel Speed (Forward)	Not Published	20.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	HD/HDC (4WD): Rear differential lock standard (mechanical)	Differential lock

Brakes	Mechanical wet disc	Wet disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Suspension seat

Wheelbase	HFC (2WD): 84.4 in; HD/HDC (4WD): 83.1 in	84.6 in
Overall Width	73.0 in	72.4 in
Ground Clearance	18.1 in	17.1 in
Height to Top of ROPS	HD (4WD): 96.9 in	Not Applicable
Height to Top of Cab Model	HFC (2WD), HDC (4WD): 100.6 in	100.2 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	HFC (2WD): 10.8 ft (3.3 m); HD/HDC (4WD): 11.8 ft (3.6 m)	162.2 in
Overall Length with 3-Point Hitch	HFC (2WD): 142.7 in; HD/HDC (4WD): 138.0 in	155.6 in
