Kubota M7040 vs Kubota MX6000

Across 6 measurable specs, the Kubota M7040 leads 6 categories to 0. Machine pages: Kubota M7040 and Kubota MX6000.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

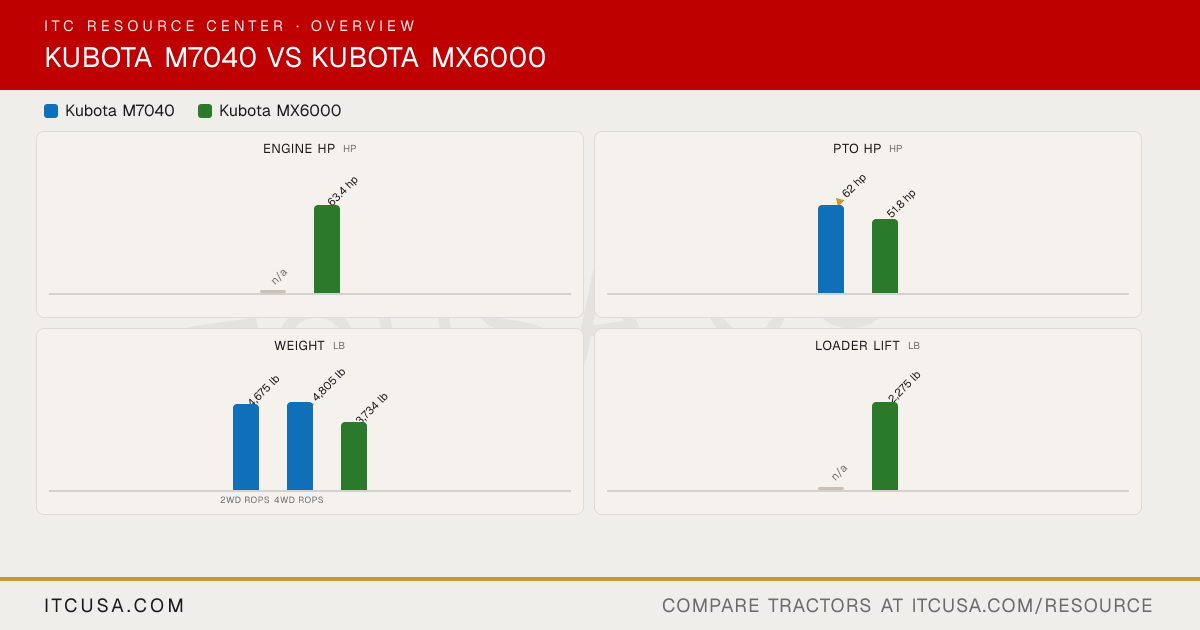

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM7040	KubotaMX6000

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V3307-DI	V2403CR-T
Engine Type	4-cylinder inline, direct injected diesel	Liquid-cooled, diesel, 4-cylinder, Turbocharged
No. of Cylinders	4	4
Displacement	203 in³	148.6 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	Not Published	63.4 hp
PTO Power	62 hp	51.8 hp
Engine Emissions Constraints	Tier 2	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	8 in dry, dual element	Dry-dual element
Fuel System	Direct injection	Common Rail System (CRS), direct injection
Alternator	ROPS: 45 A, 12 V; Cab: 60 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	11.0 gpm	9.5 gpm
Steering Flow	6.1 gpm	4.9 gpm
Total Hydraulic Flow	17.1 gpm (11.0 + 6.1, computed)	14.4 gpm (9.5 + 4.9, computed)
Overall Hydraulic Pump Flow	17.2 gpm	14.4 gpm (9.5 + 4.9, computed)
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	11.0 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2nd and 3rd optional	Maximum 3 (opt)
▶Fluid Capacity
Fuel Tank Capacity	ROPS: 18.5 gal; Cab: 29.1 gal	13.5 gal
Coolant Capacity	8.5 qt	6.9 qt
Crankcase Capacity	11.6 qt	7.4 qt
Transmission / Hydraulic System Capacity	10.6 gal	11.6 gal
Front Axle Fluid Capacity	8.5 qt	8.9 qt
▶PTO & Hitch
PTO Type	Live independent PTO, hydraulically operated wet clutch with PTO brake	Live independent, hydraulic PTO with PTO brake, wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	I & II
Hitch Lift Capacity	4189 lb	2870 lb
Hitch Lift Capacity (at 24”)	3307 lb	2310 lb
Lift Control Type	Position, draft (top link sensing) and mix control	Position (std), Draft (opt)
▶Transmission & Drivetrain
Transmission Type	Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models	Hydrostatic transmission
No. of Speeds	8F/8R (12F/12R with optional creep)	3-range
Max Travel Speed (Forward)	18.7 mph	17.7 mph
Max Travel Speed (Reverse)	Not Published	16.0 mph
Clutch	Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle)	No clutch
Differential Lock & Limited Slip Options	Rear differential lock (bevel gears)	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS (canopy optional); Ultra Grand Cab optional	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanically operated wet disc brakes	Mechanical wet disc
Seat Suspension & Adjustability	Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab)	High-back suspension seat (optional arm rests)
Front Axle Type	4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling	Bevel gear type (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	2200 lb	1650 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	2WD: 140.4 in; 4WD: 135.6 in	125.9 in (without 3-point hitch)
Overall Width	73.2 in	69.7 in
Wheelbase	2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in	74.6 in
Ground Clearance	16.3 in	15.2 in
Min. Turn Radius without Brakes	2WD: 11.2 ft; 4WD: 11.8 ft	8.9 ft (with brake applied)
Height to Top of ROPS	97.2 in	95.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	100.2 in	92.7 in
▶Weight
Tractor Weight (Base)	2WD ROPS: 4675 lb; 4WD ROPS: 4805 lb	3,734 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard: 7.5-16 (2WD) or 9.5-24 (4WD) front, 16.9-30 rear	Standard ag: 9.5-16 / 14.9-26
R1 Agricultural - Front	2WD: 7.5-16; 4WD: 9.5-24	9.5-16
R1 Agricultural - Rear	16.9-30	14.9-26
R3 Turf - Front	29x12.5-15 or 27x9.5-15	29x12.50-15
R3 Turf - Rear	18.4-26 or 21.5L-16.1	44x18-20
R4 Industrial - Front	14-17.5L (4WD)	12-16.5
R4 Industrial - Rear	16.9-24 (4WD)	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	LA1153: two-lever quick coupler	1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Model	LA1153	LA1065
Loader Lift Height	LA1153 height position: 132.7 in; LA1153 power position: 117.2 in	111.2 in
Loader Lift Capacity (Full Height)	Not Published	2275 lb
Loader Breakout Force	Not Published	3102 lbf (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00

Find a Kubota dealer near you→

Kubota M7040 vs Kubota MX6000: Quick Answers

Which has more PTO horsepower, the Kubota M7040 or the Kubota MX6000?

The Kubota M7040 leads on pto hp at 62 hp hp, compared to 51.8 hp hp for the Kubota MX6000.

Which is heavier, the Kubota M7040 or the Kubota MX6000?

The Kubota M7040 leads on weight at 4,805 lb lb, compared to 3,734 lb lb for the Kubota MX6000.

Which has more three-point hitch lift capacity, the Kubota M7040 or the Kubota MX6000?

The Kubota M7040 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,310 lb lb for the Kubota MX6000.
