Kubota M7060HDC12 vs TYM T5074

Across 6 measurable specs, the Kubota M7060HDC12 leads 4 categories to 2. Machine pages: Kubota M7060HDC12 and TYM T5074.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

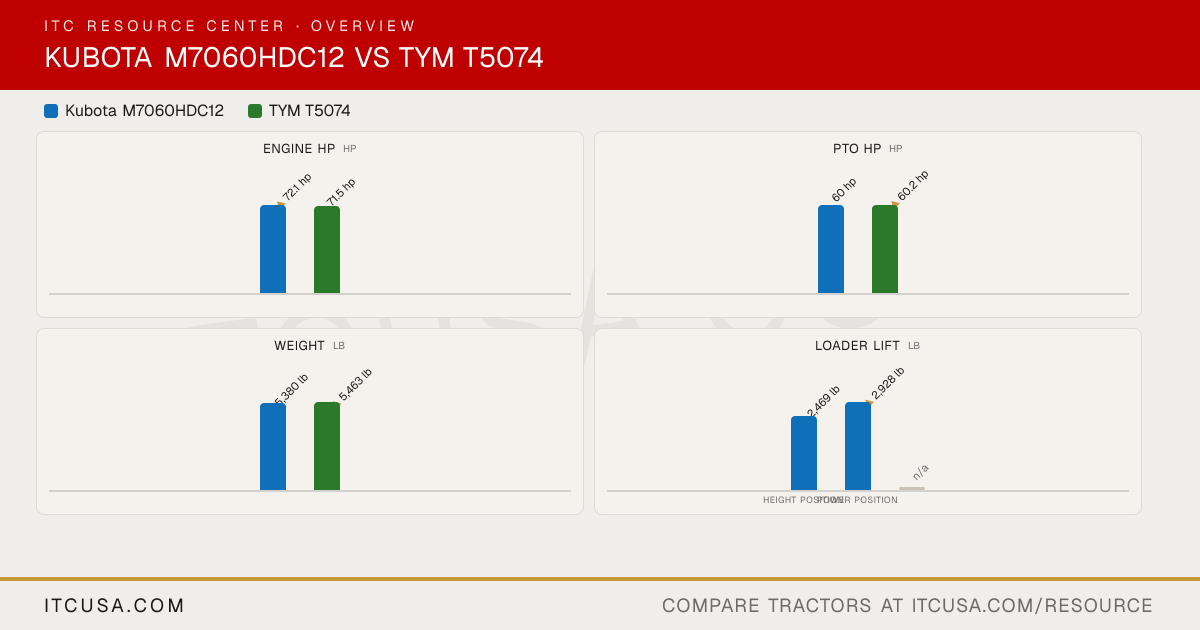

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaM7060HDC12	TYMT5074

▶Engine
Engine Manufacturer	Kubota	Yanmar
Engine Model	V3307-CR-TE4	4TN98CT-7PKTF
Engine Type	Liquid-cooled, diesel, 4-cylinder, Turbocharged	4-cylinder, water-cooled, turbocharged diesel
No. of Cylinders	4	4
Displacement	203 in³	202.5 in³
Rated Engine Speed	2400 rpm	2400 rpm
Engine Power (Gross)	72.1 hp	71.5 hp
PTO Power	60 hp	60.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry paper, dual element, 8 in diameter, with pre-cleaner	PowerCore Type
Fuel System	Common Rail System (CRS)	CRDI
Alternator	60 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear	Dual gear pump
Implement Flow	16.2 gpm	10.3 gpm
Steering Flow	6.1 gpm	5.8 gpm
Total Hydraulic Flow	22.3 gpm	16.1 gpm
Overall Hydraulic Pump Flow	22.3 gpm	16.1 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	16.2 gpm	Not Published
No. of Standard Remote Valves	1 (SCD)	Not Published
No. of Optional Remote Valves	2nd, 3rd (optional)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	23.8 gal	19 gal
Coolant Capacity	8.5 qt	3 gal
Crankcase Capacity	12.7 qt	Not Published
Transmission / Hydraulic System Capacity	14.8 gal	13.7 gal
Front Axle Fluid Capacity	5.8 qt (differential) plus 3.7 qt (each bevel gear case)	2.4 gal
▶PTO & Hitch
PTO Type	Live-independent PTO, electro-hydraulic clutch with brake	Independent
PTO Rear	540/540E rpm	540/750 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	I / II	Category II
Hitch Lift Capacity	4,189 lb	4,329 lb
Hitch Lift Capacity (at 24”)	3,307 lb	3,159 lb
Lift Control Type	Position, Draft (Top Link Sensing) & Mixed Control	Position/Draft
▶Transmission & Drivetrain
Transmission Type	Hydraulic shuttle (F12/R12), fully synchronized (6-speed main)	Power shuttle
No. of Speeds	F12/R12	F12 x R12
Max Travel Speed (Forward)	24.3 mph	13.5 mph
Max Travel Speed (Reverse)	23.9 mph	Not Published
Clutch	Multiple wet disc	Wet Multi Plate
Differential Lock & Limited Slip Options	Front: limited-slip differential; Rear: mechanical differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Certified ROPS cab	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Hydraulic wet disc	Wet disc
Seat Suspension & Adjustability	Suspension seat, adjustable (travel, suspension tension, backrest tilt, armrests); optional air-suspension seat on cab models	Adjustable sliding seat with backrest angle and cushion firmness adjustment
Front Axle Type	Bevel gear type with 55 degree turning angle (4WD)	Not Published
Front Axle Rating	5,290 lb (6,615 lb with loader)	Not Published
Drawbar Capacity	2,200 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	73.0 in	81.4 in
Wheelbase	83.1 in	84.6 in
Ground Clearance	Not Published	17.6 in
Min. Turn Radius without Brakes	11.8 ft	164.2 in; 169.3 in
Height to Top of ROPS	Not Published	106.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	101.0 in	Not Published
Overall Length	138.0 in	148.1 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	5,380 lb	5,463 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard: 9.5-24 front, 16.9-30 rear	Not Published
R1 Agricultural - Front	9.5-24	11.2-24
R1 Agricultural - Rear	16.9-30	16.9-30
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	14-17.5	15-19.5
R4 Industrial - Rear	16.9-24	18.4-24
▶Loader & Attachments
Quick Attach Loader System	LA1154A: 2-Lever Quick Coupler	Not Published
Loader Model	LA1154A	L5074SL
Loader Lift Height	Height position: 132.7 in; Power position: 117.2 in	Not Published
Loader Lift Capacity (Full Height)	Height position: 2,469 lb; Power position: 2,928 lb	Not Published
Loader Breakout Force	Height position: 4,230 lbf; Power position: 5,354 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours	Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	Kubota M6060/M7060/M4 Series Brush Guard Insert $287.00	None tagged yet

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota M7060HDC12 vs TYM T5074: Quick Answers

Which has more horsepower, the Kubota M7060HDC12 or the TYM T5074?

The Kubota M7060HDC12 leads on engine hp at 72.1 hp hp, compared to 71.5 hp hp for the TYM T5074.

Which has more PTO horsepower, the Kubota M7060HDC12 or the TYM T5074?

The TYM T5074 leads on pto hp at 60.2 hp hp, compared to 60 hp hp for the Kubota M7060HDC12.

Which is heavier, the Kubota M7060HDC12 or the TYM T5074?

The TYM T5074 leads on weight at 5,463 lb lb, compared to 5,380 lb lb for the Kubota M7060HDC12.

Which has more three-point hitch lift capacity, the Kubota M7060HDC12 or the TYM T5074?

The Kubota M7060HDC12 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 3,159 lb lb for the TYM T5074.
