Across 0 measurable specs, this matchup is a dead heat: 0 categories to the LS Tractor MT122, 0 to the LS Tractor MT235E. Machine pages: LS Tractor MT122 and LS Tractor MT235E .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor MT122 LS Tractor MT235E Engine HP (hp) 21.5 hp — PTO HP (hp) 15 hp — Weight (lb) 1,433 lb — Loader Lift (lb) 1,007 lb — 3-Pt Lift (24 in) (lb) 728 lb — Lift Height (in) 72 in — Breakout Force (lbf) 1,960 lbf — Hydraulic Flow (gpm) 6.7 gpm —

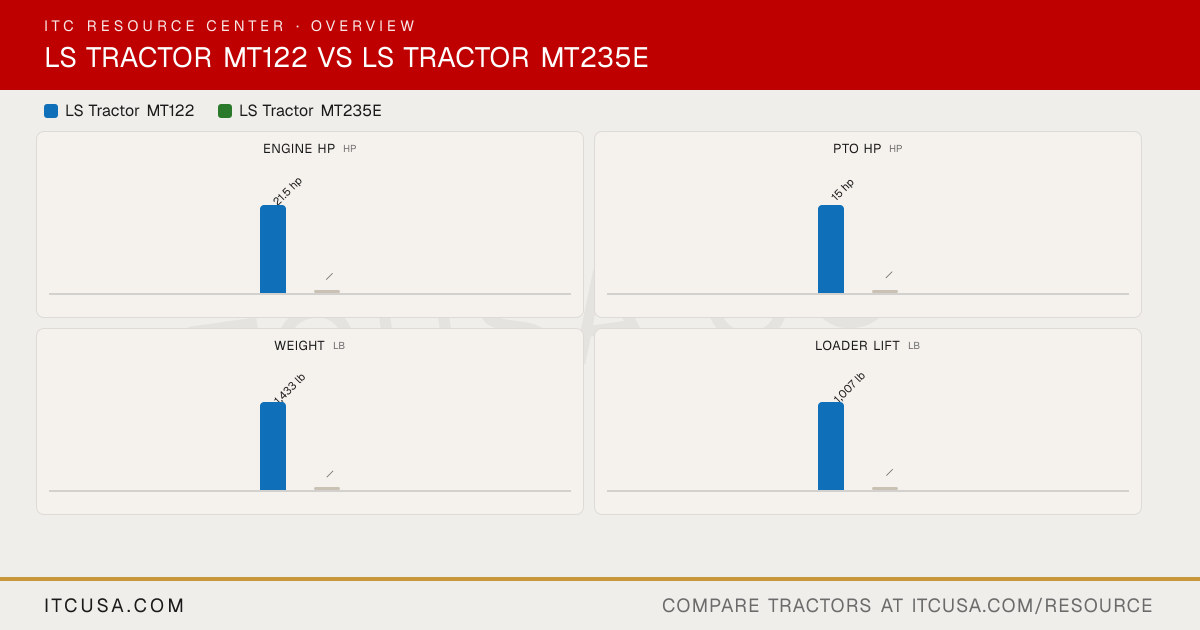

Overview Loader Work PTO Work
The headline numbers at a glance.
LS Tractor MT122 LS Tractor MT235E
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor MT122 LS Tractor MT235E
▶ EnginePTO Power 15 hp — Alternator 40 A, 12 V — Air Cleaner Replaceable paper elements — Engine Type 3-cylinder, Indirect-injection, Water-cooled — Fuel System Mechanical, in-line type — Displacement 68 in³ — No. of Cylinders 3 — Rated Engine Speed 3000 rpm — Cooling System Type Water-cooled — Engine Manufacturer Yanmar — Engine Power (Gross) 21.5 hp — Engine Emissions Constraints Tier 4 — ▶ WeightTractor Weight (Base) 1,433 lbs — Weight with ROPS and Loader Not Published — Weight with Cab and Loader Not Applicable — ▶ WarrantyWarranty Length & Coverage 6 Year Limited Warranty — ▶ HydraulicsPump Type Gear — Steering Flow 2.1 gpm — Implement Flow 4.6 gpm — Total Hydraulic Flow 6.7 gpm — Hydraulic System Type Open center system, Position control — System Operating Pressure 1,885.5 psi — Rear Remote Hydraulic Flow Not Published — Overall Hydraulic Pump Flow 6.7 gpm — No. of Optional Remote Valves 1 — No. of Standard Remote Valves 0 — ▶ PTO & HitchPTO Rear Standard (540 rpm) — PTO Type Independent — Lift Control Type Position — Hitch Lift Capacity 970 lbs. (At 24 in: 728) — Mid-PTO Availability Standard (2,500 rpm) — Category, 3-Point Hitch CAT I — Hitch Lift Capacity (at 24”) 728 lb — ▶ Tire OptionsR3 Turf - Rear 26 x 12.0 - 12 — R3 Turf - Front 18 x 8.5 - 10 — Tire Size & Options Front: 18x8.5-10 Industrial; Rear: 26x12.0-12 Industrial — R4 Industrial - Rear 26 x 12.0 - 12 — R4 Industrial - Front 18 x 8.5 - 10 — R1 Agricultural - Rear Not Published — R1 Agricultural - Front Not Published — ▶ Fluid CapacityCoolant Capacity 0.9 gal (0.9U.S.gals) — Crankcase Capacity 0.8 gal (0.8U.S.gals) — Fuel Tank Capacity 6.6 gal. — Front Axle Fluid Capacity 0.5 gal (0.5U.S.gals) — Transmission / Hydraulic System Capacity 3 gal (3.0U.S.gals) — ▶ Loader & AttachmentsLoader Lift Height 72.0 in. — Loader Breakout Force 1,960 lbs. — Quick Attach Loader System LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System — Loader Lift Capacity (Full Height) 1,007 lbs. — ▶ Transmission & DrivetrainClutch Not Applicable — No. of Speeds 2 Ranges — Transmission Type Hydrostatic Drive — Max Travel Speed (Forward) 0 ~ 14.0 Km/h (0 ~ 8.70 mph) — Max Travel Speed (Reverse) 0 ~ 8.4 Km/h (0 ~ 5.22 mph) — Differential Lock & Limited Slip Options Mechanical pedal type — ▶ Chassis, Steering & ControlsBrakes Wet, Multi-disc — Steering Hydrostatic Power Steering — Frame Type Not Published — Front Axle Type Front Wheel Mechanical Assist (4WD) — Drawbar Capacity Vertical load: 881.8 lb (882lbs), Horizontal load: 1.6 tonnes (3527lbs) — Front Axle Rating 1433 lb — Seat Suspension & Adjustability High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable — ▶ Dimensions & ManeuverabilityWheelbase 56 in. — Overall Width 47 in. — Overall Length 97 in. — Ground Clearance Not provided in source — Height to Top of ROPS 87 in. — Height to Top of Cab Model Not Applicable — Height to Top of ROPS (folded) Not Published — Min. Turn Radius without Brakes 7.87 ft — Overall Length with 3-Point Hitch 97 in. —
