Which has more horsepower, the LS Tractor MT225S or the LS Tractor XJ2025H?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT225S or the LS Tractor XJ2025H?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which has more loader lift capacity, the LS Tractor MT225S or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.

Which has more three-point hitch lift capacity, the LS Tractor MT225S or the LS Tractor XJ2025H?

The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

LS Tractor MT225S vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT225S leads 4 categories to 2 (1 tied). Machine pages: LS Tractor MT225S and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT225S	LS Tractor XJ2025H
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	▲ 19.3 hp	18.5 hp
Loader Lift (lb)	1,067 lb	▲ 1,276 lb
3-Pt Lift (24 in) (lb)	▲ 1,323 lb	1,058 lb
Lift Height (in)	84.4 in	▲ 85.7 in
Breakout Force (lbf)	▲ 2,290 lbf	1,687 lbf
Hydraulic Flow (gpm)	▲ 9.3 gpm	8.5 gpm

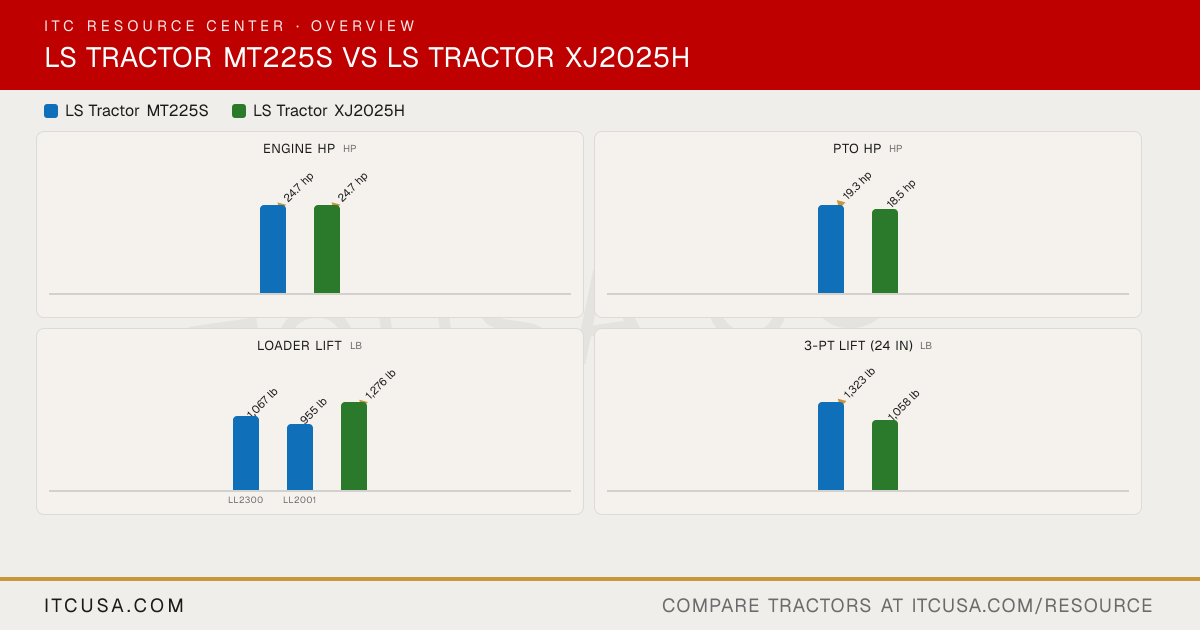

The headline numbers at a glance.

LS Tractor MT225SLS Tractor XJ2025H

Engine HPhp

▲24.7 hp

PTO HPhp

▲19.3 hp

18.5 hp

Weightlb

—

Loader Liftlb

1,067 lb

955 lb

▲1,276 lb

LL2300LL2001

3-Pt Lift (24 in)lb

▲1,323 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225S	LS TractorXJ2025H


PTO Power	19.3 hp	18.5 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry	Dry
Engine Type	3-cylinder, Indirect Injection (IDI), Swirl chamber	3-cylinder, Indirect-injection (swirl chamber), Water-cooled
Fuel System	In-line injection pump	Indirect injection (in-line pump)
Displacement	77.3 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2500 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	YANMAR	Mitsubishi
Engine Power (Gross)	24.7 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Engine-driven	Transmission drive pump
Steering Flow	3.7 gpm	2.6 gpm
Implement Flow	5.6 gpm	5.9 gpm
Total Hydraulic Flow	9.3 gpm	8.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	8.5 gpm
No. of Optional Remote Valves	1 pair (optional)	1 pair (2 outlets; optional)
No. of Standard Remote Valves	Not Applicable	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Electro-hydraulic rear PTO / mid-PTO
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,896 lb	1,433 lb
Mid-PTO Availability	Optional (2500 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,323 lb	1,058 lb

R3 Turf - Rear	31X15.50-15	320/65-16.5
R3 Turf - Front	22X8.50-12	23X8.50-12
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	305/70-16.5 (6PR)
R4 Industrial - Front	23X8.50-12	23X8.50-12 (4PR)
R1 Agricultural - Rear	11.2-16	255/75-15.3
R1 Agricultural - Front	7-12	23X10.50-12

Coolant Capacity	0.9 gal	1.0 gal
Crankcase Capacity	0.8 gal	1.1 gal
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	0.8 gal	0.8 gal
Transmission / Hydraulic System Capacity	4.5 gal	5.3 gal

Loader Lift Height	84.4 in	85.7 in
Loader Breakout Force	LL2300: 2,290 lb; LL2001: Not Published	1,687 lb
Quick Attach Loader System	LL2300: Bobcat-type (skid-steer style) quick attach bucket carrier; LL2001: Not Published	LL2102: Quick-attach front end loader
Loader Lift Capacity (Full Height)	LL2300: 1,067 lb; LL2001: 955 lb	1,276 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	3 ranges	2 ranges
Transmission Type	Hydrostatic Drive	Hydrostatic Drive
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Brakes	Wet, multi-disc	Wet, multi-disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in	59 in
Overall Width	48.7 in	44.9 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	86.4 in	84.5 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	111.9 in	103 in

LS Tractor MT225S vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the LS Tractor MT225S or the LS Tractor XJ2025H?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT225S or the LS Tractor XJ2025H?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.
Which has more loader lift capacity, the LS Tractor MT225S or the LS Tractor XJ2025H?: The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.
Which has more three-point hitch lift capacity, the LS Tractor MT225S or the LS Tractor XJ2025H?: The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
