Across 2 measurable specs, the TYM 3520 leads 1 categories to 0 (1 tied). Machine pages: LS Tractor MT335H and TYM 3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT335H | TYM 3520 |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 28 hp | n/a |
| Weight (lb) | 3,285 lb | ▲ 3,624 lb |
| Loader Lift (lb) | 2,185 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | n/a |
| Lift Height (in) | 94.4 in | n/a |
| Breakout Force (lbf) | 3,612 lbf | n/a |
| Hydraulic Flow (gpm) | 13.7 gpm | n/a |

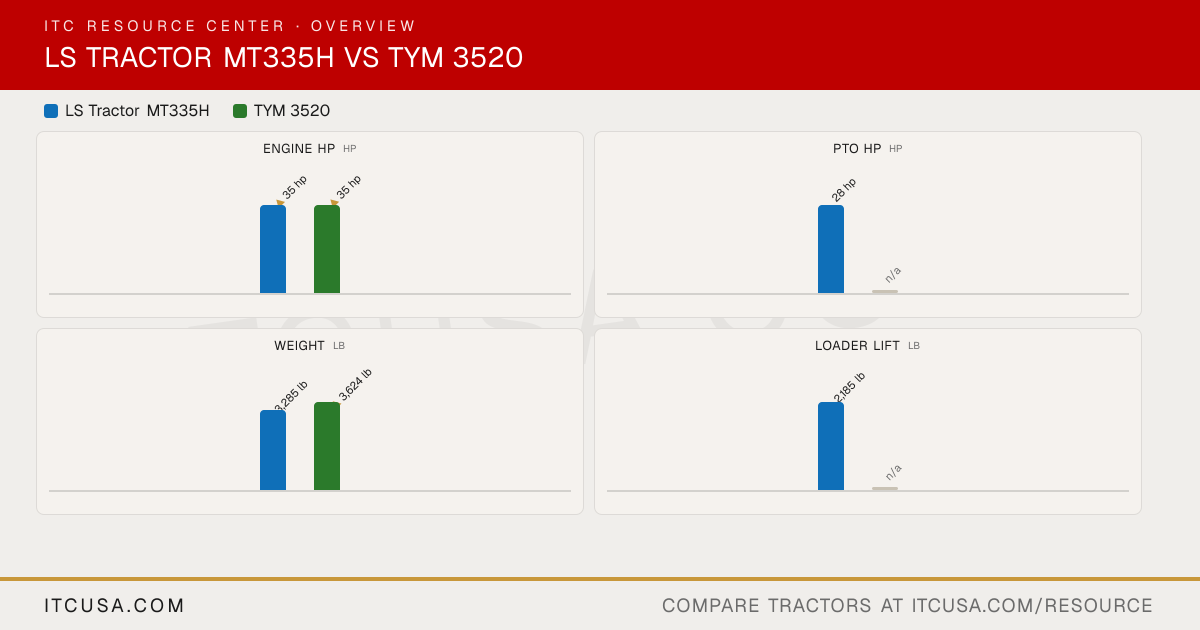

The headline numbers at a glance.
LS Tractor MT335HTYM 3520
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT335H | TYM3520 |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | Kukje |
|---|
| Engine Model | L3C19-T | 3T90L-ATC |
|---|
| Engine Type | 3 Cylinder, CRDI, water-cooled turbo diesel | Diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 114.7 in³ | 109.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 28 hp | Not Published |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry | Dry element |
|---|
| Fuel System | Delphi, CRDI | Not Published |
|---|
| Alternator | 85 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Gear pump, engine drive | Not Published |
|---|
| Implement Flow | 8.2 gpm | Not Published |
|---|
| Steering Flow | 5.5 gpm | Not Published |
|---|
| Total Hydraulic Flow | 13.7 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 13.7 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 Pair | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 10.6 gal | 10.6 gal |
|---|
| Coolant Capacity | 1.9 gal | Not Published |
|---|
| Crankcase Capacity | 1.5 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 7.9 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.7 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent | Transmission-driven |
|---|
| PTO Rear | 540 rpm | 540 / 1000 rpm |
|---|
| Mid-PTO Availability | Optional (2,000 rpm) | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 1,808 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 1,433 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST) | Synchronized shuttle |
|---|
| No. of Speeds | Infinite, 3 ranges (HST) | 12F/12R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock (pedal) | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic Power Steering | Power steering |
|---|
| Brakes | Wet, Multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | 4WD (MFWD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 124.3 in | 129.7 in |
|---|
| Overall Width | 59.3 in | 60 in |
|---|
| Wheelbase | 66 in | 68.8 in |
|---|
| Ground Clearance | Not Published | 12.2 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 93 in | 86.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,285 lb | 3,624 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural, R3 Turf, R4 Industrial | Agricultural: 8-18 front / 12.4-28 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | 8-18 |
|---|
| R1 Agricultural - Rear | 14.9-24 | 12.4-28 |
|---|
| R3 Turf - Front | 25x8.5-14 | Not Published |
|---|
| R3 Turf - Rear | 41x14-20 | Not Published |
|---|
| R4 Industrial - Front | 25x8.5-14 | Not Published |
|---|
| R4 Industrial - Rear | 43x16-20 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | LL3116: Standard Skid Steer Coupler (skid-steer compatible quick-attach) | Not Published |
|---|
| Loader Model | LL3116 | Not Published |
|---|
| Loader Lift Height | 94.4 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | LL3116: 2,185 lb | Not Published |
|---|
| Loader Breakout Force | 3,612 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 6-year limited powertrain warranty | Not Published |
|---|
LS Tractor MT335H vs TYM 3520: Quick Answers
- Which has more horsepower, the LS Tractor MT335H or the TYM 3520?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which is heavier, the LS Tractor MT335H or the TYM 3520?
- The TYM 3520 leads on weight at 3,624 lb lb, compared to 3,285 lb lb for the LS Tractor MT335H.
