Across 7 measurable specs, this matchup is a dead heat: 0 categories to the LS Tractor MT463, 0 to the LS Tractor MT463PS, 7 tied. Machine pages: LS Tractor MT463 and LS Tractor MT463PS .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor MT463 LS Tractor MT463PS Engine HP (hp) 63 hp 63 hp PTO HP (hp) 54.1 hp 54.1 hp Weight (lb) 6,503 lb 6,503 lb Loader Lift (lb) 3,488 lb 3,488 lb 3-Pt Lift (24 in) (lb) 3,483 lb 3,483 lb Lift Height (in) 132.9 in 132.9 in Hydraulic Flow (gpm) 21.7 gpm 21.7 gpm

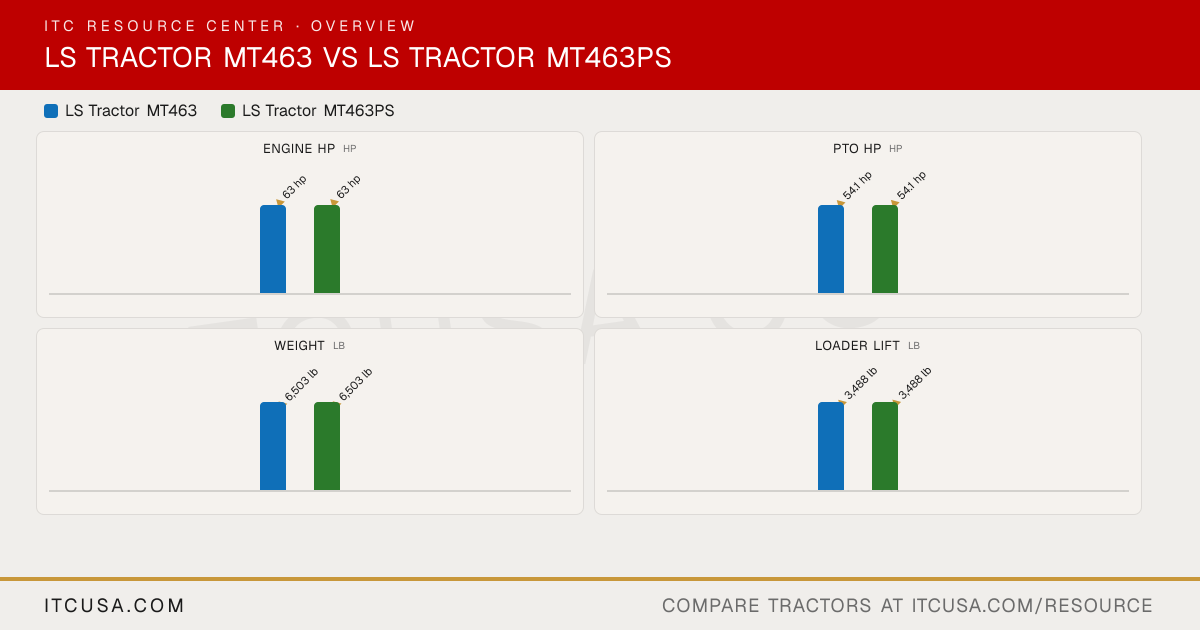

Overview Loader Work PTO Work
The headline numbers at a glance.
LS Tractor MT463 LS Tractor MT463PS
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor MT463 LS Tractor MT463PS
▶ EnginePTO Power 54.1 hp 54.1 hp Alternator 70 A, 12 V 70 A, 12 V Air Cleaner Dry Dry Engine Type In-line vertical, water cooled 4-cycle diesel, CRDI In-line vertical, water cooled 4-cycle diesel, CRDI Fuel System Delphi, CRDI Delphi, CRDI Displacement 152.9 in³ 152.9 in³ No. of Cylinders 4 4 Rated Engine Speed 2500 rpm 2500 rpm Cooling System Type Water-cooled Water-cooled Engine Manufacturer LS Mtron LS Mtron Engine Power (Gross) 63 hp 63 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader 6,503 lb 6,503 lb Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty ▶ HydraulicsPump Type Gear type, engine drive Gear type, engine drive Steering Flow 6.8 gpm 6.8 gpm Implement Flow 14.9 gpm 14.9 gpm Total Hydraulic Flow 21.7 gpm 21.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 21.7 gpm 21.7 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves 2 Pairs (Front), 2 Pairs (Rear) 2 Pairs (Front), 2 Pairs (Rear) ▶ PTO & HitchPTO Rear 540 / 540E 540 / 540E PTO Type Independent Independent Lift Control Type Position & Draft Position & Draft Hitch Lift Capacity 4,079 lbs 4,079 lbs Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity (at 24”) 3,483 lbs 3,483 lbs ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options Multiple options available (Standard Ag, Industrial, Large Ag, R14) Multiple options available (Standard Ag, Industrial, Large Ag, R14) R4 Industrial - Rear 19.5LX24 19.5LX24 R4 Industrial - Front 10.5/80X18 10.5/80X18 R1 Agricultural - Rear 16.9-30 16.9-30 R1 Agricultural - Front 11.2-24 11.2-24 ▶ Fluid CapacityCoolant Capacity 3.0 gal 3.0 gal Crankcase Capacity 1.8 gal 1.8 gal Fuel Tank Capacity 24.3 gal 24.3 gal Front Axle Fluid Capacity 2.3 gal 2.3 gal Transmission / Hydraulic System Capacity 16.5 gal 16.8 gal ▶ Loader & AttachmentsLoader Lift Height 132.9 in 132.9 in Loader Breakout Force Not Published Not Published Quick Attach Loader System LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) Loader Lift Capacity (Full Height) 3,488 lb 3,488 lb ▶ Transmission & DrivetrainClutch Dry single clutch Wet clutch disks No. of Speeds F16 X R16 F16 X R16 Transmission Type Synchro Shuttle Electro Power Shuttle Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Wet, Multi-disc Wet, Multi-disc Steering Hydrostatic Power Steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Seat With Suspension & Armrest Seat With Suspension & Armrest ▶ Dimensions & ManeuverabilityWheelbase 83.1 in 83.1 in Overall Width 72.6 in 72.6 in Ground Clearance Not Published Not Published Height to Top of ROPS 113.9 in 113.9 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 12.8 ft (3.9 m) 12.8 ft (3.9 m) Overall Length with 3-Point Hitch 154 in 154 in
LS Tractor MT463 vs LS Tractor MT463PS: Quick Answers
Which has more horsepower, the LS Tractor MT463 or the LS Tractor MT463PS? They are effectively tied: both machines are rated at 63 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT463 or the LS Tractor MT463PS? They are effectively tied: both machines are rated at 54.1 hp hp for pto hp.
Which is heavier, the LS Tractor MT463 or the LS Tractor MT463PS? They are effectively tied: both machines are rated at 6,503 lb lb for weight.
Which has more loader lift capacity, the LS Tractor MT463 or the LS Tractor MT463PS? They are effectively tied: both machines are rated at 3,488 lb lb for loader lift.
Which has more three-point hitch lift capacity, the LS Tractor MT463 or the LS Tractor MT463PS? They are effectively tied: both machines are rated at 3,483 lb lb for 3-pt lift (24 in). More Head-to-Heads
