Which has more horsepower, the LS Tractor MT463CPS or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on engine hp at 73.7 hp hp, compared to 63 hp hp for the LS Tractor MT463CPS.

Which has more PTO horsepower, the LS Tractor MT463CPS or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 54.1 hp hp for the LS Tractor MT463CPS.

Which is heavier, the LS Tractor MT463CPS or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on weight at 9,487 lb lb, compared to 6,966 lb lb for the LS Tractor MT463CPS.

Which has more loader lift capacity, the LS Tractor MT463CPS or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on loader lift at 5,139 lb lb, compared to 3,488 lb lb for the LS Tractor MT463CPS.

Which has more three-point hitch lift capacity, the LS Tractor MT463CPS or the LS Tractor MT774CPS?

The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 3,483 lb lb for the LS Tractor MT463CPS.

LS Tractor MT463CPS vs LS Tractor MT774CPS

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT774CPS leads 7 categories to 0. Machine pages: LS Tractor MT463CPS and LS Tractor MT774CPS.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT463CPS	LS Tractor MT774CPS
Engine HP (hp)	63 hp	▲ 73.7 hp
PTO HP (hp)	54.1 hp	▲ 65.6 hp
Weight (lb)	6,966 lb	▲ 9,487 lb
Loader Lift (lb)	3,488 lb	▲ 5,139 lb
3-Pt Lift (24 in) (lb)	3,483 lb	▲ 5,181 lb
Lift Height (in)	132.9 in	▲ 139.9 in
Breakout Force (lbf)	—	5,313 lbf
Hydraulic Flow (gpm)	21.7 gpm	▲ 21.9 gpm
Travel Speed (mph)	—	20.8 mph

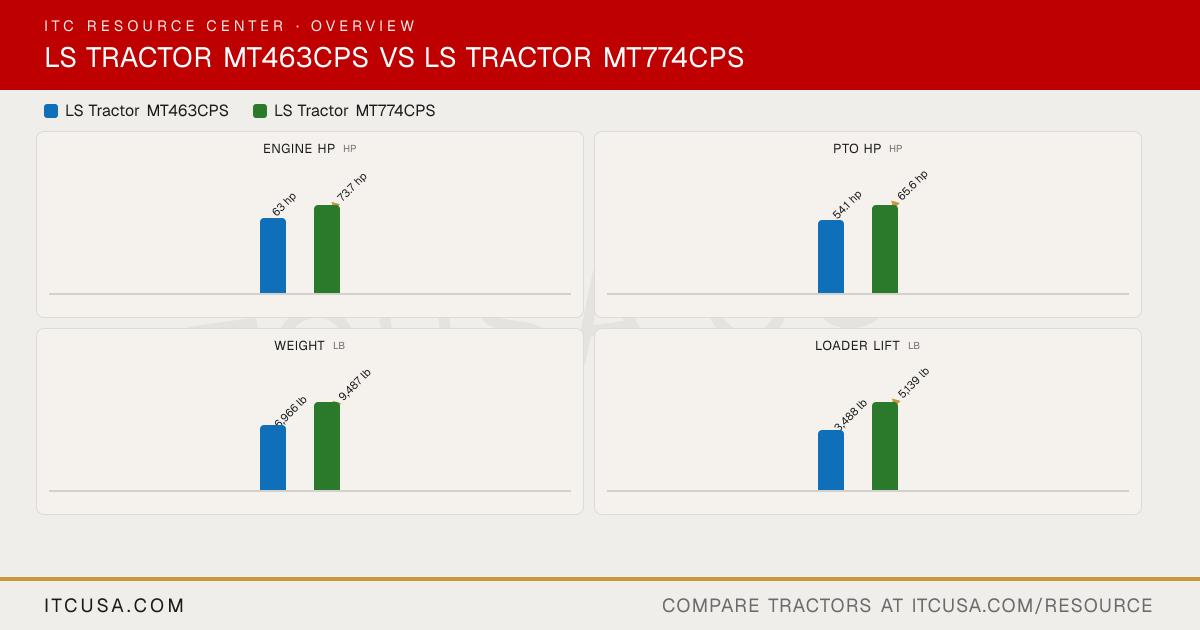

The headline numbers at a glance.

LS Tractor MT463CPSLS Tractor MT774CPS

Engine HPhp

63 hp

▲73.7 hp

PTO HPhp

54.1 hp

▲65.6 hp

Weightlb

6,966 lb

▲9,487 lb

Loader Liftlb

3,488 lb

▲5,139 lb

3-Pt Lift (24 in)lb

3,483 lb

▲5,181 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT463CPS	LS TractorMT774CPS


PTO Power	54.1 hp	65.6 hp
Alternator	70 A, 12 V	120 A, 14 V
Air Cleaner	Dry	Dry
Engine Type	In-line vertical, water cooled 4-cycle diesel, CRDI	In-line, water-cooled, 4 stroke, CRDI
Fuel System	Delphi, CRDI	CRDI (Bosch CP4.11)
Displacement	152.9 in³	206.7 in³
No. of Cylinders	4	4
Rated Engine Speed	2500 rpm	2200 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	LS Mtron	FPT Industrial
Engine Power (Gross)	63 hp	73.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	6,966 lb	9,487 lb

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Gear type, engine drive	Gear pump type, engine drive
Steering Flow	6.8 gpm	6.4 gpm
Implement Flow	14.9 gpm	15.5 gpm
Total Hydraulic Flow	21.7 gpm	21.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	21.7 gpm	21.9 gpm
No. of Optional Remote Valves	Not Published	1 Pair (Rear)
No. of Standard Remote Valves	2 Pairs (Front), 2 Pairs (Rear)	3 Pairs (Front), 2 Pairs (Rear)

PTO Rear	540 / 540E	540 / 750 / 1,000
PTO Type	Independent	Independent
Lift Control Type	Position & Draft	Position & Draft
Hitch Lift Capacity	4,079 lbs	7,253 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category II
Hitch Lift Capacity (at 24”)	3,483 lbs	5,181 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Multiple options available (Standard Ag, Industrial, Large Ag, R14)	Multiple options available (Ag, R14)
R4 Industrial - Rear	19.5LX24	Not Published
R4 Industrial - Front	10.5/80X18	Not Published
R1 Agricultural - Rear	16.9-30	16.9-30
R1 Agricultural - Front	11.2-24	11.2-24

Coolant Capacity	3.0 gal	3.2 gal
Crankcase Capacity	1.8 gal	1.7-2.1 gal (6.5-2.1 gal)
Fuel Tank Capacity	24.3 gal	30.4 gal
Front Axle Fluid Capacity	2.3 gal	1.4 gal
Transmission / Hydraulic System Capacity	16.8 gal	14.5 gal

Loader Lift Height	132.9 in	139.9 in
Loader Breakout Force	Not Published	5,313 lb
Quick Attach Loader System	LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA)	LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove)
Loader Lift Capacity (Full Height)	3,488 lb	5,139 lb

Clutch	Wet clutch disks	Wet clutch disks
No. of Speeds	F16 X R16	F24 X R24
Transmission Type	Electro Power Shuttle	Power shuttle with Hi-Lo and Hand clutch
Max Travel Speed (Forward)	Not Published	20.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Electro-Hydraulic Differential lock (EHD)

Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Seat With Suspension & Armrest	Air suspension seat

Wheelbase	83.1 in	90 in
Overall Width	72.6 in	78 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	105.4 in	105 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	12.8 ft (3.9 m)	Not Published
Overall Length with 3-Point Hitch	154 in	171 in
