Across 3 measurable specs, this matchup is a dead heat: 1 categories to the LS Tractor MT463CPS, 1 to the Massey Ferguson MF 268 XTRA, 1 tied. Machine pages: LS Tractor MT463CPS and Massey Ferguson MF 268 XTRA .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor MT463CPS Massey Ferguson MF 268 XTRA Engine HP (hp) 63 hp 63 hp PTO HP (hp) 54.1 hp — Weight (lb) 6,966 lb — Loader Lift (lb) 3,488 lb — 3-Pt Lift (24 in) (lb) 3,483 lb ▲ 4,519 lbLift Height (in) 132.9 in — Hydraulic Flow (gpm) ▲ 21.7 gpm10 gpm Travel Speed (mph) — 18.6 mph

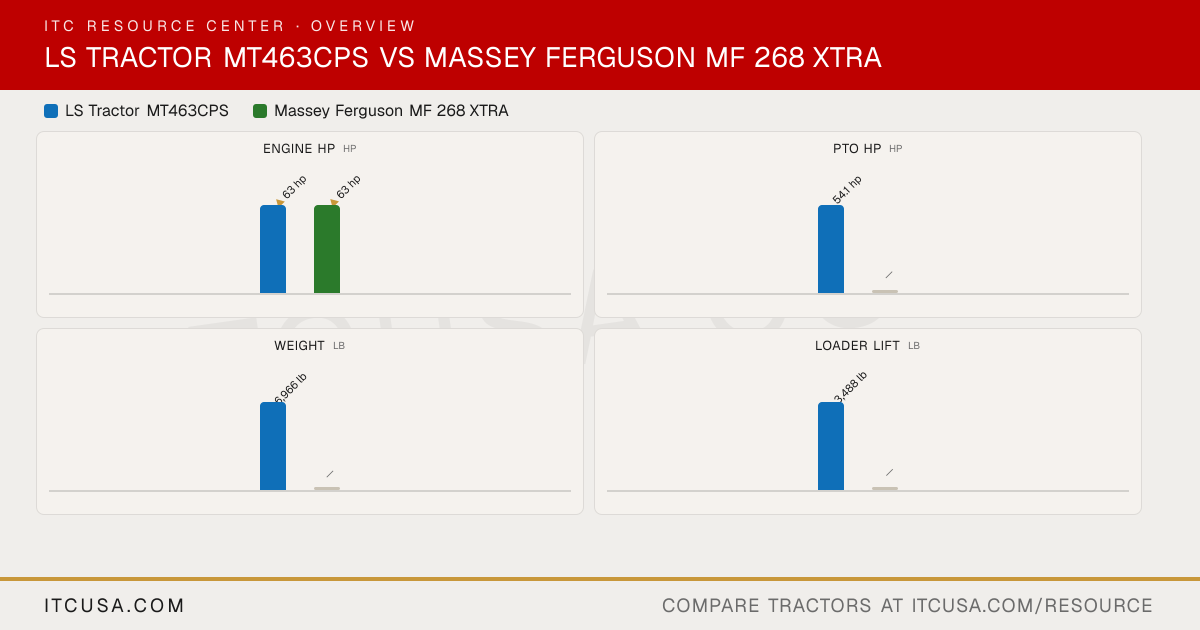

Overview Loader Work PTO Work
The headline numbers at a glance.
LS Tractor MT463CPS Massey Ferguson MF 268 XTRA
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor MT463CPS Massey Ferguson MF 268 XTRA
▶ EnginePTO Power 54.1 hp Not Published Alternator 70 A, 12 V Not Published Air Cleaner Dry Dry Type / Oil Bath Engine Type In-line vertical, water cooled 4-cycle diesel, CRDI 4-cylinder diesel Fuel System Delphi, CRDI Not Published Displacement 152.9 in³ 219.7 in³ No. of Cylinders 4 4 Rated Engine Speed 2500 rpm 2200 rpm Cooling System Type Water-cooled Not Published Engine Manufacturer LS Mtron Simpson Engine Power (Gross) 63 hp 63 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightWeight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader 6,966 lb Not Published ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty Not Published ▶ HydraulicsPump Type Gear type, engine drive Scotch yoke pump (rear axle mounted) Steering Flow 6.8 gpm 5.3 gpm Implement Flow 14.9 gpm 4.8 gpm Total Hydraulic Flow 21.7 gpm 10.0 gpm Hydraulic System Type Open center Open centre Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 21.7 gpm 10.0 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves 2 Pairs (Front), 2 Pairs (Rear) Not Published ▶ PTO & HitchPTO Rear 540 / 540E 540 rpm PTO Type Independent Live PTO Lift Control Type Position & Draft Ferguson System Hitch Lift Capacity 4,079 lbs 4,519 lb Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Not Published Hitch Lift Capacity (at 24”) 3,483 lbs Not Published ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options Multiple options available (Standard Ag, Industrial, Large Ag, R14) R1 Agricultural R4 Industrial - Rear 19.5LX24 Not Published R4 Industrial - Front 10.5/80X18 Not Published R1 Agricultural - Rear 16.9-30 16.9X28 R1 Agricultural - Front 11.2-24 2WD: 7.50X16; 4WD: 9.5X24 ▶ Fluid CapacityCoolant Capacity 3.0 gal Not Published Crankcase Capacity 1.8 gal Not Published Fuel Tank Capacity 24.3 gal 15.9 gal Front Axle Fluid Capacity 2.3 gal Not Published Transmission / Hydraulic System Capacity 16.8 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 132.9 in Not Published Loader Breakout Force Not Published Not Published Quick Attach Loader System LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) Not Published Loader Lift Capacity (Full Height) 3,488 lb Not Published ▶ Transmission & DrivetrainClutch Wet clutch disks Dual Dry Plate No. of Speeds F16 X R16 8F / 2R Transmission Type Electro Power Shuttle Sliding mesh gearbox Max Travel Speed (Forward) Not Published 18.6 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical differential lock (foot pedal) ▶ Chassis, Steering & ControlsBrakes Wet, Multi-disc Oil immersed, mechanical actuation Steering Hydrostatic Power Steering Hydrostatic Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Seat With Suspension & Armrest Not Published ▶ Dimensions & ManeuverabilityWheelbase 83.1 in 80.7 in Overall Width 72.6 in Not Published Ground Clearance Not Published Not Published Height to Top of ROPS Not Applicable 99.2 in Height to Top of Cab Model 105.4 in Not Published Height to Top of ROPS (folded) Not Applicable Not Published Min. Turn Radius without Brakes 12.8 ft (3.9 m) Not Published Overall Length with 3-Point Hitch 154 in 153.1 in
LS Tractor MT463CPS vs Massey Ferguson MF 268 XTRA: Quick Answers
Which has more horsepower, the LS Tractor MT463CPS or the Massey Ferguson MF 268 XTRA? They are effectively tied: both machines are rated at 63 hp hp for engine hp.
Which has more three-point hitch lift capacity, the LS Tractor MT463CPS or the Massey Ferguson MF 268 XTRA? The Massey Ferguson MF 268 XTRA leads on 3-pt lift (24 in) at 4,519 lb lb, compared to 3,483 lb lb for the LS Tractor MT463CPS. More Head-to-Heads
