Across 7 measurable specs, the LS Tractor MT7101 leads 7 categories to 0. Machine pages: LS Tractor MT473CPS and LS Tractor MT7101.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT473CPS | LS Tractor MT7101 |
|---|
| Engine HP (hp) | 73 hp | ▲ 100.6 hp |
| PTO HP (hp) | 62.9 hp | ▲ 85.5 hp |
| Weight (lb) | 5,886 lb | ▲ 7,985 lb |
| Loader Lift (lb) | 3,426 lb | ▲ 5,139 lb |
| 3-Pt Lift (24 in) (lb) | 3,483 lb | ▲ 8,378 lb |
| Lift Height (in) | 132.9 in | ▲ 139.9 in |
| Breakout Force (lbf) | n/a | 5,313 lbf |
| Hydraulic Flow (gpm) | 21.1 gpm | ▲ 22.2 gpm |
| Travel Speed (mph) | n/a | 23.1 mph |

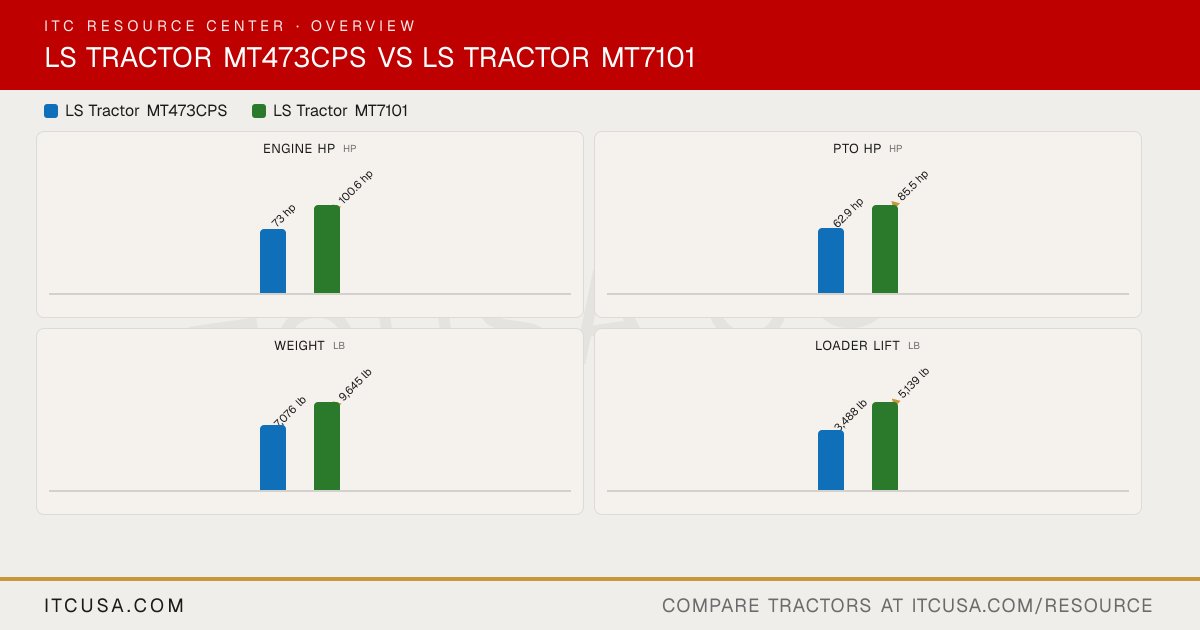

The headline numbers at a glance.
LS Tractor MT473CPSLS Tractor MT7101
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT473CPS | LS TractorMT7101 |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | FPT Industrial |
|---|
| Engine Model | L4C25-T | F5G |
|---|
| Engine Type | In-line vertical, water cooled 4-cycle diesel, CRDI | 4-cylinder, CRDI, water-cooled |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 152.85 in³ | 206.7 in³ |
|---|
| Rated Engine Speed | 2500 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 73 hp | 100.6 hp |
|---|
| PTO Power | 62.9 hp | 85.5 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 70 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Gear pump type, engine drive |
|---|
| Implement Flow | 14.5 gpm | 15.7 gpm |
|---|
| Steering Flow | 6.6 gpm | 6.5 gpm |
|---|
| Total Hydraulic Flow | 21.1 gpm | 22.2 gpm |
|---|
| Overall Hydraulic Pump Flow | 21.1 gpm | 22.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 Pairs (Front), 2 Pairs (Rear) | 3 Pairs (Front), 2 Pairs (Rear) |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 24.3 gal | 30.4 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 14.5 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 / 540E | 540 / 750 / 1,000 |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | 4,079 lb | 8,378 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,483 lb | Not Published |
|---|
| Lift Control Type | Position & Draft | Position & Draft |
|---|
|
|---|
| Transmission Type | Power Shuttle | Power shuttle |
|---|
| No. of Speeds | F16 x R16 | 24 X 24 |
|---|
| Max Travel Speed (Forward) | Not Published | 23.1 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Wet clutch disks |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock (pedal) | Electro-Hydraulic Differential lock (EHD) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic Power Steering | Hydrostatic |
|---|
| Brakes | Wet, Multi-disc | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Air suspension seat |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 140 in | 152.2 in |
|---|
| Overall Width | 72.6 in | 78.7 in |
|---|
| Wheelbase | 83.1 in | 90 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 105.4 in | 107 in |
|---|
|
|---|
| Tractor Weight (Base) | 5,886 lb | 7,985 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | 7,076 lb (5,886 + 1,190, computed; LL5001 loader without bucket) | 9,645 lb (7,985 + 1,660, computed; LL8100 loader without bucket) |
|---|
|
|---|
| Tire Size & Options | Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D | Ag 13.6-24 / 18.4-34; R14 340/70R28 / 460/75R38 |
|---|
| R1 Agricultural - Front | 9.5-24 (Standard Ag); 11.2-24 (Large Ag) | 13.6-24 |
|---|
| R1 Agricultural - Rear | 16.9-28 (Standard Ag); 16.9-30 (Large Ag) | 18.4-34 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 10.5/80x18 10PR | Not Published |
|---|
| R4 Industrial - Rear | 19.5Lx24 8PR | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | LL5001 | LL8100 |
|---|
| Loader Lift Height | LL5001: 132.9 in (height position); 116.8 in (power position) | LL8100: 139.9 in |
|---|
| Loader Lift Capacity (Full Height) | LL5001: 3,426 lb (height position); 3,488 lb (power position) | LL8100: 5,139 lb |
|---|
| Loader Breakout Force | Not Published | LL8100: 5,313 lb |
|---|
|
|---|
| Warranty Length & Coverage | Basic 2 years or 750 hours; powertrain 6 years or 1,500 hours | Basic 2 years or 750 hours; powertrain 5 years or 1,500 hours |
|---|
LS Tractor MT473CPS vs LS Tractor MT7101: Quick Answers
- Which has more horsepower, the LS Tractor MT473CPS or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on engine hp at 100.6 hp hp, compared to 73 hp hp for the LS Tractor MT473CPS.
- Which has more PTO horsepower, the LS Tractor MT473CPS or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on pto hp at 85.5 hp hp, compared to 62.9 hp hp for the LS Tractor MT473CPS.
- Which is heavier, the LS Tractor MT473CPS or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on weight at 7,985 lb lb, compared to 5,886 lb lb for the LS Tractor MT473CPS.
- Which has more loader lift capacity, the LS Tractor MT473CPS or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on loader lift at 5,139 lb lb, compared to 3,426 lb lb for the LS Tractor MT473CPS.
- Which has more three-point hitch lift capacity, the LS Tractor MT473CPS or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on 3-pt lift (24 in) at 8,378 lb lb, compared to 3,483 lb lb for the LS Tractor MT473CPS.
