Across 5 measurable specs, the LS Tractor MT473PS leads 4 categories to 1. Machine pages: LS Tractor MT473PS and TYM T5074.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT473PS | TYM T5074 |
|---|
| Engine HP (hp) | ▲ 73 hp | 71.5 hp |
| PTO HP (hp) | ▲ 62.9 hp | 60.2 hp |
| Weight (lb) | 5,423 lb | ▲ 5,463 lb |
| Loader Lift (lb) | 3,426 lb | n/a |
| 3-Pt Lift (24 in) (lb) | ▲ 3,483 lb | 3,159 lb |
| Lift Height (in) | 132.9 in | n/a |
| Hydraulic Flow (gpm) | ▲ 21.1 gpm | 16.1 gpm |
| Travel Speed (mph) | n/a | 13.5 mph |

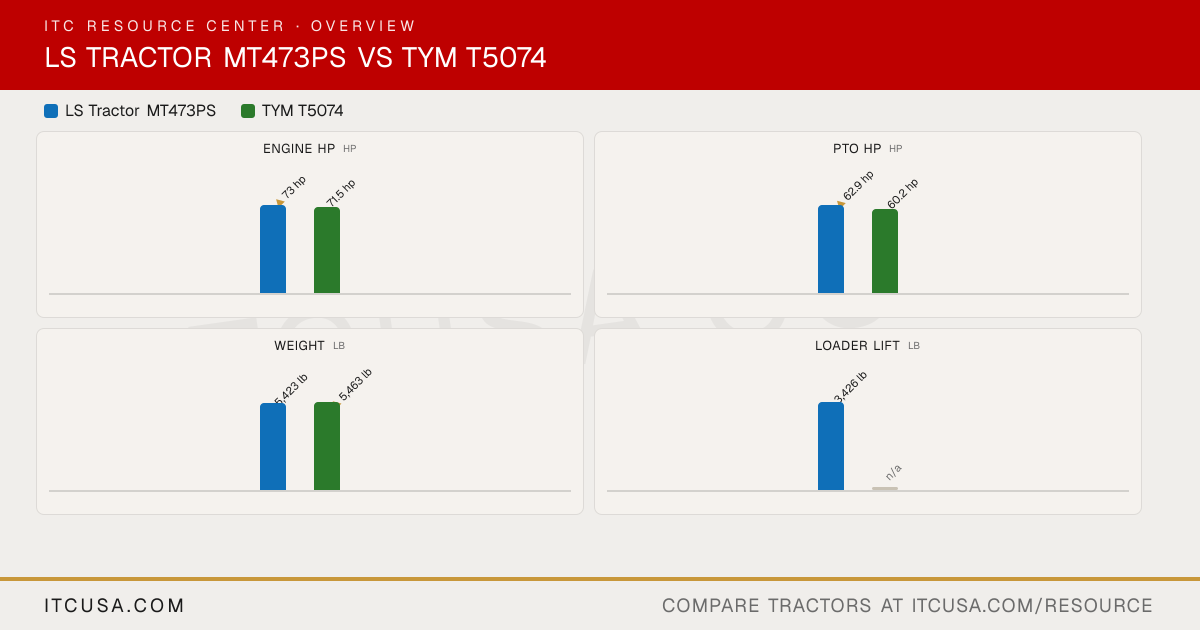

The headline numbers at a glance.
LS Tractor MT473PSTYM T5074
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT473PS | TYMT5074 |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | Yanmar |
|---|
| Engine Model | L4C25-T | 4TN98CT-7PKTF |
|---|
| Engine Type | In-line vertical, water cooled 4-cycle diesel, CRDI | 4-cylinder, water-cooled, turbocharged diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 152.85 in³ | 202.5 in³ |
|---|
| Rated Engine Speed | 2500 rpm | 2400 rpm |
|---|
| Engine Power (Gross) | 73 hp | 71.5 hp |
|---|
| PTO Power | 62.9 hp | 60.2 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | PowerCore Type |
|---|
| Fuel System | Not Published | CRDI |
|---|
| Alternator | 70 A, 12 V | 70 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Dual gear pump |
|---|
| Implement Flow | 14.5 gpm | 10.3 gpm |
|---|
| Steering Flow | 6.6 gpm | 5.8 gpm |
|---|
| Total Hydraulic Flow | 21.1 gpm | 16.1 gpm |
|---|
| Overall Hydraulic Pump Flow | 21.1 gpm | 16.1 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 Pairs (Front), 2 Pairs (Rear) | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 24.3 gal | 19 gal |
|---|
| Coolant Capacity | Not Published | 3 gal |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 13.7 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 2.4 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 / 540E | 540/750 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | 4,079 lb | 4,329 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,483 lb | 3,159 lb |
|---|
| Lift Control Type | Position & Draft | Position/Draft |
|---|
|
|---|
| Transmission Type | Electro Power Shuttle | Power shuttle |
|---|
| No. of Speeds | F16 x R16 | F12 x R12 |
|---|
| Max Travel Speed (Forward) | Not Published | 13.5 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Wet Multi Plate |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock (pedal) | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic Power Steering | Hydrostatic |
|---|
| Brakes | Wet, Multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Adjustable sliding seat with backrest angle and cushion firmness adjustment |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 72.6 in | 81.4 in |
|---|
| Wheelbase | 83.1 in | 84.6 in |
|---|
| Ground Clearance | Not Published | 17.6 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 164.2 in; 169.3 in |
|---|
| Height to Top of ROPS | 113.9 in | 106.8 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
| Overall Length | 140 in (bumper to link) | 148.1 in (with 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | 5,423 lb | 5,463 lb (with ROPS) |
|---|
| Weight with ROPS and Loader | 6,613 lb (5,423 + 1,190, computed; LL5001 loader without bucket) | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D | Not Published |
|---|
| R1 Agricultural - Front | 9.5-24 (Standard Ag); 11.2-24 (Large Ag) | 11.2-24 |
|---|
| R1 Agricultural - Rear | 16.9-28 (Standard Ag); 16.9-30 (Large Ag) | 16.9-30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 10.5/80x18 10PR | 15-19.5 |
|---|
| R4 Industrial - Rear | 19.5Lx24 8PR | 18.4-24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | LL5001 | L5074SL |
|---|
| Loader Lift Height | LL5001: 132.9 in (height position); 116.8 in (power position) | Not Published |
|---|
| Loader Lift Capacity (Full Height) | LL5001: 3,426 lb (height position, at pivot pin, max height); 3,488 lb (power position, at pivot pin, max height) | Not Published |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Basic 2 years or 750 hours; powertrain 6 years or 1,500 hours | Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months |
|---|
LS Tractor MT473PS vs TYM T5074: Quick Answers
- Which has more horsepower, the LS Tractor MT473PS or the TYM T5074?
- The LS Tractor MT473PS leads on engine hp at 73 hp hp, compared to 71.5 hp hp for the TYM T5074.
- Which has more PTO horsepower, the LS Tractor MT473PS or the TYM T5074?
- The LS Tractor MT473PS leads on pto hp at 62.9 hp hp, compared to 60.2 hp hp for the TYM T5074.
- Which is heavier, the LS Tractor MT473PS or the TYM T5074?
- The TYM T5074 leads on weight at 5,463 lb lb, compared to 5,423 lb lb for the LS Tractor MT473PS.
- Which has more three-point hitch lift capacity, the LS Tractor MT473PS or the TYM T5074?
- The LS Tractor MT473PS leads on 3-pt lift (24 in) at 3,483 lb lb, compared to 3,159 lb lb for the TYM T5074.
