Which has more horsepower, the LS Tractor MT774CPS or the LS Tractor MT573?

The LS Tractor MT774CPS leads on engine hp at 73.7 hp hp, compared to 73 hp hp for the LS Tractor MT573.

Which has more PTO horsepower, the LS Tractor MT774CPS or the LS Tractor MT573?

The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 62 hp hp for the LS Tractor MT573.

Which is heavier, the LS Tractor MT774CPS or the LS Tractor MT573?

The LS Tractor MT774CPS leads on weight at 9,487 lb lb, compared to 7,901 lb lb for the LS Tractor MT573.

Which has more loader lift capacity, the LS Tractor MT774CPS or the LS Tractor MT573?

The LS Tractor MT774CPS leads on loader lift at 5,139 lb lb, compared to 3,364 lb lb for the LS Tractor MT573.

Which has more three-point hitch lift capacity, the LS Tractor MT774CPS or the LS Tractor MT573?

The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 4,718 lb lb for the LS Tractor MT573.

LS Tractor MT774CPS vs LS Tractor MT573

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the LS Tractor MT774CPS leads 9 categories to 0. Machine pages: LS Tractor MT774CPS and LS Tractor MT573.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT774CPS	LS Tractor MT573
Engine HP (hp)	▲ 73.7 hp	73 hp
PTO HP (hp)	▲ 65.6 hp	62 hp
Weight (lb)	▲ 9,487 lb	7,901 lb
Loader Lift (lb)	▲ 5,139 lb	3,364 lb
3-Pt Lift (24 in) (lb)	▲ 5,181 lb	4,718 lb
Lift Height (in)	▲ 139.9 in	126.5 in
Breakout Force (lbf)	▲ 5,313 lbf	4,644 lbf
Hydraulic Flow (gpm)	▲ 21.9 gpm	19.8 gpm
Travel Speed (mph)	▲ 20.8 mph	19.4 mph

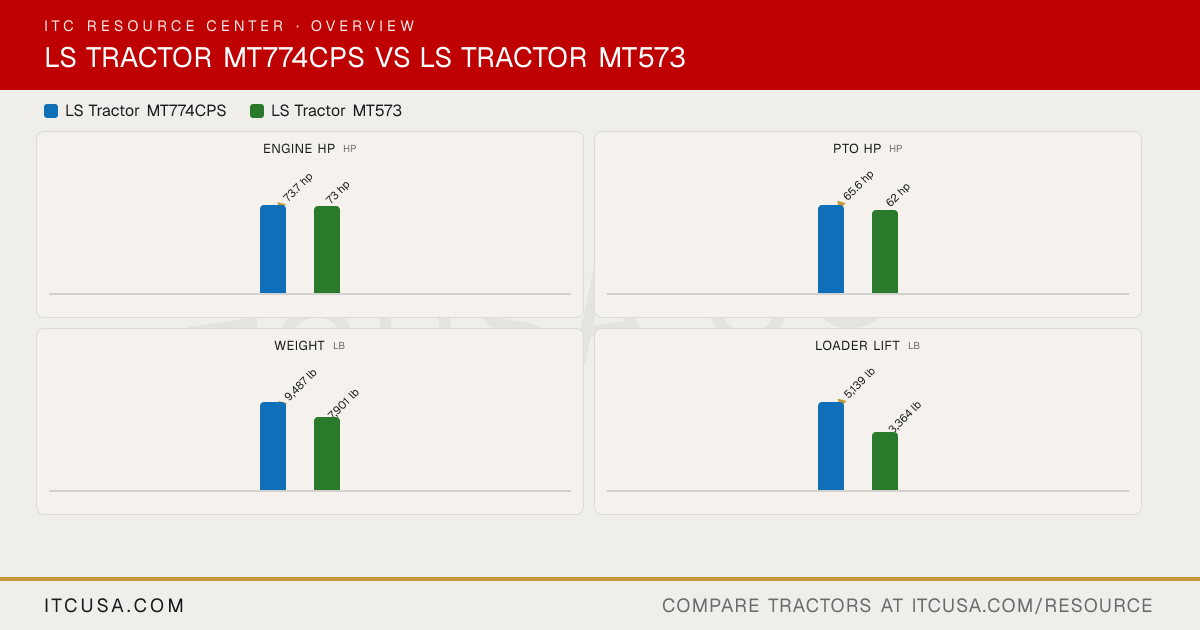

The headline numbers at a glance.

LS Tractor MT774CPSLS Tractor MT573

Engine HPhp

▲73.7 hp

73 hp

PTO HPhp

▲65.6 hp

62 hp

Weightlb

▲9,487 lb

7,901 lb

Loader Liftlb

▲5,139 lb

3,364 lb

3-Pt Lift (24 in)lb

▲5,181 lb

4,718 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT774CPS	LS TractorMT573


PTO Power	65.6 hp	62 hp
Alternator	120 A, 14 V	70 A, 12 V
Air Cleaner	Dry	Dry
Engine Type	In-line, water-cooled, 4 stroke, CRDI	In-line vertical, water cooled 4-cycle diesel, CRDI
Fuel System	CRDI (Bosch CP4.11)	Delphi, CRDI
Displacement	206.7 in³	152.9 in³
No. of Cylinders	4	4
Rated Engine Speed	2200 rpm	2500 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	73.7 hp	73 hp
Engine Emissions Constraints	Tier 4	EPA Tier 4F

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	9,487 lb	7,901 lb

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Gear pump type, engine drive	Gear type, engine drive
Steering Flow	6.4 gpm	6.6 gpm
Implement Flow	15.5 gpm	13.2 gpm
Total Hydraulic Flow	21.9 gpm	19.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	21.9 gpm	19.8 gpm
No. of Optional Remote Valves	1 Pair (Rear)	Not Published
No. of Standard Remote Valves	3 Pairs (Front), 2 Pairs (Rear)	3 Pairs (Front), 3 Pairs (Rear)

PTO Rear	540 / 750 / 1,000	540 / 750 / 1,000
PTO Type	Independent	Independent
Lift Control Type	Position & Draft	Position & Draft
Hitch Lift Capacity	7,253 lb	6,614 lbs
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category II
Hitch Lift Capacity (at 24”)	5,181 lb	4,718 lbs

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Multiple options available (Ag, R14)	Multiple options available (Ag, R14)
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	16.9-30	16.9-30
R1 Agricultural - Front	11.2-24	11.2-24

Coolant Capacity	3.2 gal	2.6 gal
Crankcase Capacity	1.7-2.1 gal (6.5-2.1 gal)	2.1 gal
Fuel Tank Capacity	30.4 gal	26.4 gal
Front Axle Fluid Capacity	1.4 gal	1.5 gal
Transmission / Hydraulic System Capacity	14.5 gal	14.5 gal

Loader Lift Height	139.9 in	126.5 in
Loader Breakout Force	5,313 lb	4,644 lb
Quick Attach Loader System	LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove)	LL6100: ISO 24410 “Quick Attachment” (Bobcat-type / skid-steer style; lever-lock with latch pins)
Loader Lift Capacity (Full Height)	5,139 lb	3,364 lb

Clutch	Wet clutch disks	Wet clutch disks
No. of Speeds	F24 X R24	F20 x R20
Transmission Type	Power shuttle with Hi-Lo and Hand clutch	Power Shuttle
Max Travel Speed (Forward)	20.8 mph	19.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Electro-Hydraulic Differential lock (EHD)	Electro-hydraulic differential lock (EHD)

Brakes	Wet, Multi-disc	Not Published
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Air suspension seat	Air suspension seat (10° swivel)

Wheelbase	90 in	84.6 in
Overall Width	78 in	74.4 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	105 in	104.4 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	Not Published	13.0 ft (4.0 m)
Overall Length with 3-Point Hitch	171 in	166.7 in
