LS Tractor MT774CPS vs LS Tractor XU6168
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the LS Tractor MT774CPS leads 9 categories to 0. Machine pages: LS Tractor MT774CPS and LS Tractor XU6168.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

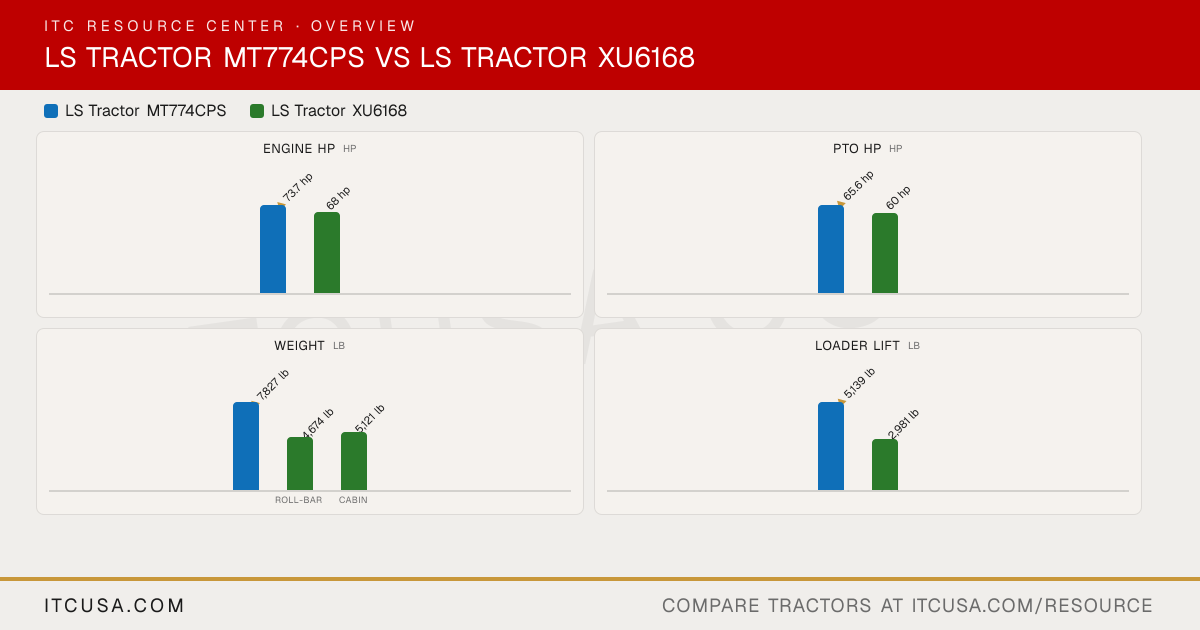

Category Verdict
| Spec | LS Tractor MT774CPS | LS Tractor XU6168 |
|---|---|---|
| Engine HP (hp) | ▲ 73.7 hp | 68 hp |
| PTO HP (hp) | ▲ 65.6 hp | 60 hp |
| Weight (lb) | ▲ 7,827 lb | 5,121 lb |
| Loader Lift (lb) | ▲ 5,139 lb | 2,981 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 5,181 lb | 3,483 lb |
| Lift Height (in) | ▲ 139.9 in | 116.3 in |
| Breakout Force (lbf) | ▲ 5,313 lbf | 4,767 lbf |
| Hydraulic Flow (gpm) | ▲ 22.2 gpm | 14.5 gpm |
| Travel Speed (mph) | ▲ 20.8 mph | 18 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT774CPS | LS TractorXU6168 |
|---|
| Engine Manufacturer | FPT (Fiat Power Train) | LS Mtron |
|---|---|---|
| Engine Model | F34 | L4C25-T2 |
| Engine Type | 4-cylinder, CRDI, water-cooled | In-line vertical, Water cooled 4-cycle diesel, CRDI |
| No. of Cylinders | 4 | 4 |
| Displacement | 206.7 in³ | 152.86 in³ |
| Rated Engine Speed | 2200 rpm | 2500 rpm |
| Engine Power (Gross) | 73.7 hp | 68 hp |
| PTO Power | 65.6 hp | 60 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Water-cooled | Water-cooled |
| Air Cleaner | Not Published | Dry |
| Fuel System | Not Published | CRDI |
| Alternator | Not Published | 70 A, 12 V |
LS Tractor MT774CPS vs LS Tractor XU6168: Quick Answers
- Which has more horsepower, the LS Tractor MT774CPS or the LS Tractor XU6168?
- The LS Tractor MT774CPS leads on engine hp at 73.7 hp hp, compared to 68 hp hp for the LS Tractor XU6168.
- Which has more PTO horsepower, the LS Tractor MT774CPS or the LS Tractor XU6168?
- The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 60 hp hp for the LS Tractor XU6168.
- Which is heavier, the LS Tractor MT774CPS or the LS Tractor XU6168?
- The LS Tractor MT774CPS leads on weight at 7,827 lb lb, compared to 5,121 lb lb for the LS Tractor XU6168.
- Which has more loader lift capacity, the LS Tractor MT774CPS or the LS Tractor XU6168?
- The LS Tractor MT774CPS leads on loader lift at 5,139 lb lb, compared to 2,981 lb lb for the LS Tractor XU6168.
- Which has more three-point hitch lift capacity, the LS Tractor MT774CPS or the LS Tractor XU6168?
- The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 3,483 lb lb for the LS Tractor XU6168.
