Which has more horsepower, the LS Tractor MT774CPS or the New Holland Workmaster 75?

The New Holland Workmaster 75 leads on engine hp at 74 hp hp, compared to 73.7 hp hp for the LS Tractor MT774CPS.

Which has more PTO horsepower, the LS Tractor MT774CPS or the New Holland Workmaster 75?

The LS Tractor MT774CPS leads on pto hp at 65.6 hp hp, compared to 60 hp hp for the New Holland Workmaster 75.

Which has more loader lift capacity, the LS Tractor MT774CPS or the New Holland Workmaster 75?

The LS Tractor MT774CPS leads on loader lift at 5,139 lb lb, compared to 3,153 lb lb for the New Holland Workmaster 75.

Which has more three-point hitch lift capacity, the LS Tractor MT774CPS or the New Holland Workmaster 75?

The LS Tractor MT774CPS leads on 3-pt lift (24 in) at 5,181 lb lb, compared to 3,500 lb lb for the New Holland Workmaster 75.

LS Tractor MT774CPS vs New Holland Workmaster 75

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT774CPS leads 5 categories to 2. Machine pages: LS Tractor MT774CPS and New Holland Workmaster 75.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT774CPS	New Holland Workmaster 75
Engine HP (hp)	73.7 hp	▲ 74 hp
PTO HP (hp)	▲ 65.6 hp	60 hp
Weight (lb)	9,487 lb	—
Loader Lift (lb)	▲ 5,139 lb	3,153 lb
3-Pt Lift (24 in) (lb)	▲ 5,181 lb	3,500 lb
Lift Height (in)	▲ 139.9 in	131.3 in
Breakout Force (lbf)	5,313 lbf	—
Hydraulic Flow (gpm)	▲ 21.9 gpm	20.2 gpm
Travel Speed (mph)	20.8 mph	▲ 25 mph

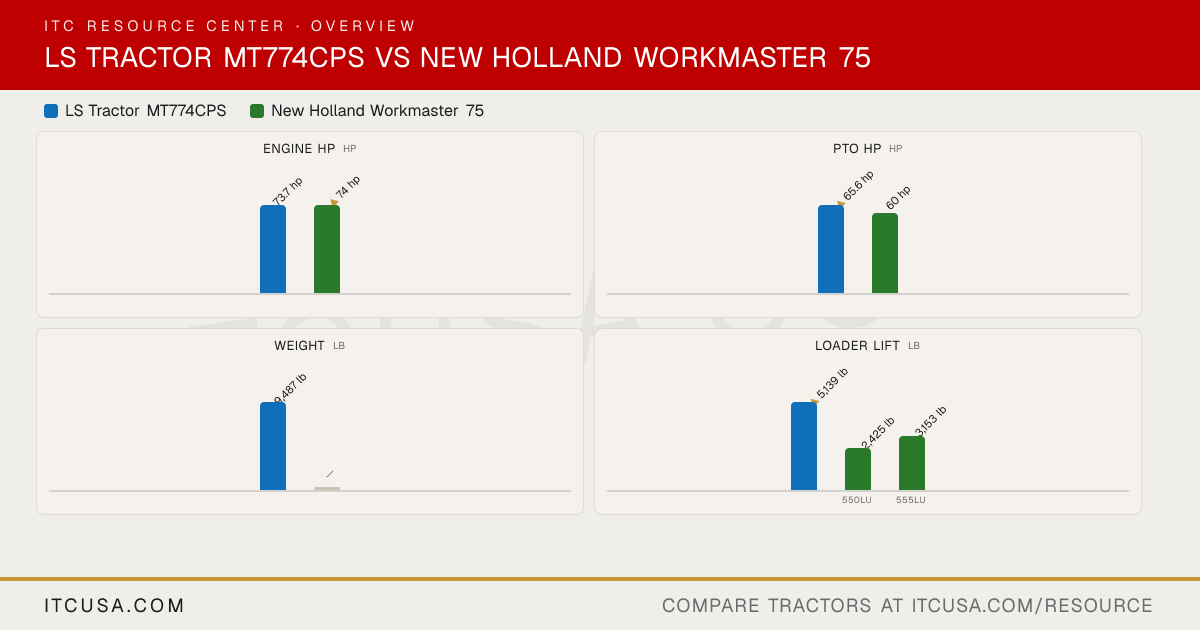

The headline numbers at a glance.

LS Tractor MT774CPSNew Holland Workmaster 75

Engine HPhp

73.7 hp

▲74 hp

PTO HPhp

▲65.6 hp

60 hp

Weightlb

9,487 lb

—

Loader Liftlb

▲5,139 lb

2,425 lb

3,153 lb

550LU555LU

3-Pt Lift (24 in)lb

▲5,181 lb

3,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT774CPS	New HollandWorkmaster 75


PTO Power	65.6 hp	60 hp
Alternator	120 A, 14 V	Not Published
Air Cleaner	Dry	Not Published
Engine Type	In-line, water-cooled, 4 stroke, CRDI	Turbocharged 3-cylinder diesel
Fuel System	CRDI (Bosch CP4.11)	High-pressure common rail
Displacement	206.7 in³	179 in³
No. of Cylinders	4	3
Rated Engine Speed	2200 rpm	2300 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	FPT Industrial	FPT Industrial
Engine Power (Gross)	73.7 hp	74 hp
Engine Emissions Constraints	Tier 4	Tier 4B CEGR + DOC (no DPF; no regeneration)

Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	9,487 lb	Not Published

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	Not Published

Pump Type	Gear pump type, engine drive	Dual pumps
Steering Flow	6.4 gpm	7.6 gpm
Implement Flow	15.5 gpm	12.6 gpm
Total Hydraulic Flow	21.9 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	21.9 gpm	20.2 gpm
No. of Optional Remote Valves	1 Pair (Rear)	1
No. of Standard Remote Valves	3 Pairs (Front), 2 Pairs (Rear)	2

PTO Rear	540 / 750 / 1,000	540 rpm
PTO Type	Independent	Hydraulic wet clutch
Lift Control Type	Position & Draft	Lift-O-Matic
Hitch Lift Capacity	7,253 lb	Not Published
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Not Published
Hitch Lift Capacity (at 24”)	5,181 lb	3,500 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Multiple options available (Ag, R14)	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	16.9-30	Not Published
R1 Agricultural - Front	11.2-24	Not Published

Coolant Capacity	3.2 gal	Not Published
Crankcase Capacity	1.7-2.1 gal (6.5-2.1 gal)	Not Published
Fuel Tank Capacity	30.4 gal	Not Published
Front Axle Fluid Capacity	1.4 gal	Not Published
Transmission / Hydraulic System Capacity	14.5 gal	Not Published

Loader Lift Height	139.9 in	550LU: 131.3 in; 555LU: 130.0 in
Loader Breakout Force	5,313 lb	Not Published
Quick Attach Loader System	LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove)	550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach
Loader Lift Capacity (Full Height)	5,139 lb	550LU: 2,425 lb; 555LU: 3,153 lb

Clutch	Wet clutch disks	Not Published
No. of Speeds	F24 X R24	12F/12R
Transmission Type	Power shuttle with Hi-Lo and Hand clutch	12x12 power shuttle
Max Travel Speed (Forward)	20.8 mph	25 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Electro-Hydraulic Differential lock (EHD)	Not Published

Brakes	Wet, Multi-disc	Not Published
Steering	Hydrostatic	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	6,500 lb dynamic capacity
Seat Suspension & Adjustability	Air suspension seat	ROPS: Not Published; CAB: Cloth air-suspension seat

Wheelbase	90 in	83.6 in
Overall Width	78 in	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Applicable	99.8 in
Height to Top of Cab Model	105 in	100.2 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	171 in	154.1 in
