LS Tractor MT225E vs LS Tractor XJ2025H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT225E leads 8 categories to 0. Machine pages: LS Tractor MT225E and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT225E	LS Tractor XJ2025H
Engine HP (hp)	▲ 24.6 hp	24.4 hp
PTO HP (hp)	▲ 19.2 hp	18.5 hp
Weight (lb)	▲ 2,469 lb	1,609 lb
Loader Lift (lb)	▲ 1,609 lb	1,276 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 92 in	85.7 in
Breakout Force (lbf)	▲ 2,701 lbf	1,687 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	8.5 gpm
Travel Speed (mph)	n/a	11.5 mph

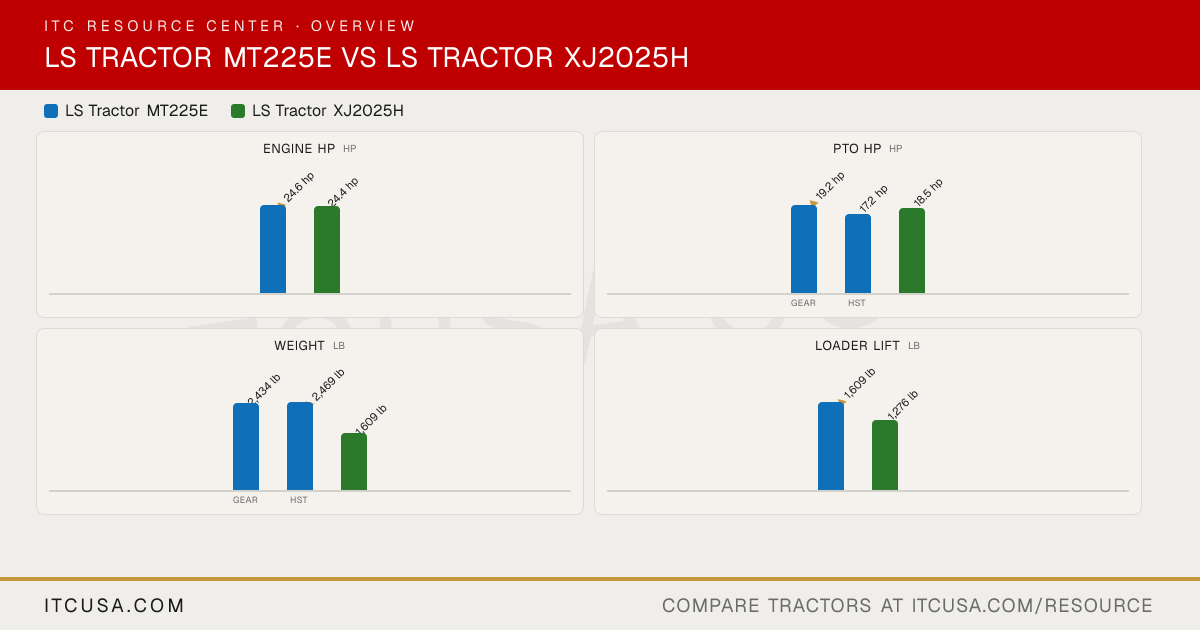

The headline numbers at a glance.

LS Tractor MT225ELS Tractor XJ2025H

Engine HPhp

▲24.6 hp

24.4 hp

PTO HPhp

▲19.2 hp

17.2 hp

18.5 hp

gearHST

Weightlb

2,434 lb

▲2,469 lb

1,609 lb

gearHST

Loader Liftlb

▲1,609 lb

1,276 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225E	LS TractorXJ2025H


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, liquid-cooled, naturally aspirated IDI diesel	3-cylinder, indirect injection, water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.4 hp
PTO Power	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	Indirect injection (IDI)	Indirect injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Gear pump, engine driven	Transmission driven
Implement Flow	7.9 gpm	5.9 gpm
Steering Flow	4.6 gpm	2.6 gpm
Total Hydraulic Flow	12.5 gpm	8.5 gpm
Overall Hydraulic Pump Flow	12.5 gpm	8.5 gpm
Hydraulic System Type	Not Published	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard	0
No. of Optional Remote Valves	1 or 2 optional (double-acting, 2 or 4 quick couplers)	1 pair (2 quick couplers, optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	1.3 gal	1.0 gal
Crankcase Capacity	1.1 gal	1.1 gal
Transmission / Hydraulic System Capacity	8.5 gal	5.3 gal
Front Axle Fluid Capacity	1.7 gal	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional	Standard (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Position control	Manual position control

Transmission Type	MT225E (gear): Synchro shuttle; MT225HE (HST): HST	Hydrostatic Drive
No. of Speeds	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)	2 ranges
Max Travel Speed (Forward)	Not Published	11.5 mph
Max Travel Speed (Reverse)	Not Published	7.2 mph
Clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed

Overall Length with 3-Point Hitch	118 in	103 in
Overall Width	54 in	44.9 in
Wheelbase	66 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	10.5 ft	8.2 ft (with brake applied)
Height to Top of ROPS	88 in	92.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb	1,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, industrial or turf tires at no additional cost	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	23X10.50-12
R1 Agricultural - Rear	11.2-24	255/75-15.3
R3 Turf - Front	25x8.5-14	23x8.50-12
R3 Turf - Rear	41x14-20	33x12.5-16.5
R4 Industrial - Front	25x8.5-14	23x8.50-12
R4 Industrial - Rear	43x16-20	33x12-16.5

Quick Attach Loader System	LL3300: quick attach loader with skid steer compatible bucket	LL2102: Quick-attach front end loader
Loader Model	LL3300	LL2102
Loader Lift Height	LL3300: 92 in	LL2102: 85.7 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3300: 1,609 lb	LL2102: 1,276 lb (at pivot pin, full height)
Loader Breakout Force	LL3300: 2,701 lb	LL2102: 1,687 lb (at pivot pin)

Warranty Length & Coverage	6-year limited warranty	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT225E vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the LS Tractor MT225E or the LS Tractor XJ2025H?: The LS Tractor MT225E leads on engine hp at 24.6 hp hp, compared to 24.4 hp hp for the LS Tractor XJ2025H.
Which has more PTO horsepower, the LS Tractor MT225E or the LS Tractor XJ2025H?: The LS Tractor MT225E leads on pto hp at 19.2 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.
Which is heavier, the LS Tractor MT225E or the LS Tractor XJ2025H?: The LS Tractor MT225E leads on weight at 2,469 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.
Which has more loader lift capacity, the LS Tractor MT225E or the LS Tractor XJ2025H?: The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 1,276 lb lb for the LS Tractor XJ2025H.
Which has more three-point hitch lift capacity, the LS Tractor MT225E or the LS Tractor XJ2025H?: The LS Tractor MT225E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT225E	LS Tractor XJ2025H
Engine HP (hp)	▲ 24.6 hp	24.4 hp
PTO HP (hp)	▲ 19.2 hp	18.5 hp
Weight (lb)	▲ 2,469 lb	1,609 lb
Loader Lift (lb)	▲ 1,609 lb	1,276 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 92 in	85.7 in
Breakout Force (lbf)	▲ 2,701 lbf	1,687 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	8.5 gpm
Travel Speed (mph)	n/a	11.5 mph

The headline numbers at a glance.

LS Tractor MT225ELS Tractor XJ2025H

Engine HPhp

▲24.6 hp

24.4 hp

PTO HPhp

▲19.2 hp

17.2 hp

18.5 hp

gearHST

Weightlb

2,434 lb

▲2,469 lb

1,609 lb

gearHST

Loader Liftlb

▲1,609 lb

1,276 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225E	LS TractorXJ2025H


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, liquid-cooled, naturally aspirated IDI diesel	3-cylinder, indirect injection, water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.4 hp
PTO Power	MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	Indirect injection (IDI)	Indirect injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Gear pump, engine driven	Transmission driven
Implement Flow	7.9 gpm	5.9 gpm
Steering Flow	4.6 gpm	2.6 gpm
Total Hydraulic Flow	12.5 gpm	8.5 gpm
Overall Hydraulic Pump Flow	12.5 gpm	8.5 gpm
Hydraulic System Type	Not Published	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard	0
No. of Optional Remote Valves	1 or 2 optional (double-acting, 2 or 4 quick couplers)	1 pair (2 quick couplers, optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	1.3 gal	1.0 gal
Crankcase Capacity	1.1 gal	1.1 gal
Transmission / Hydraulic System Capacity	8.5 gal	5.3 gal
Front Axle Fluid Capacity	1.7 gal	0.8 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional	Standard (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Position control	Manual position control

Transmission Type	MT225E (gear): Synchro shuttle; MT225HE (HST): HST	Hydrostatic Drive
No. of Speeds	MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST)	2 ranges
Max Travel Speed (Forward)	Not Published	11.5 mph
Max Travel Speed (Reverse)	Not Published	7.2 mph
Clutch	MT225E (gear): dry single clutch; MT225HE (HST): not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed

Overall Length with 3-Point Hitch	118 in	103 in
Overall Width	54 in	44.9 in
Wheelbase	66 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	10.5 ft	8.2 ft (with brake applied)
Height to Top of ROPS	88 in	92.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb	1,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, industrial or turf tires at no additional cost	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	23X10.50-12
R1 Agricultural - Rear	11.2-24	255/75-15.3
R3 Turf - Front	25x8.5-14	23x8.50-12
R3 Turf - Rear	41x14-20	33x12.5-16.5
R4 Industrial - Front	25x8.5-14	23x8.50-12
R4 Industrial - Rear	43x16-20	33x12-16.5

Quick Attach Loader System	LL3300: quick attach loader with skid steer compatible bucket	LL2102: Quick-attach front end loader
Loader Model	LL3300	LL2102
Loader Lift Height	LL3300: 92 in	LL2102: 85.7 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3300: 1,609 lb	LL2102: 1,276 lb (at pivot pin, full height)
Loader Breakout Force	LL3300: 2,701 lb	LL2102: 1,687 lb (at pivot pin)

Warranty Length & Coverage	6-year limited warranty	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT225E vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the LS Tractor MT225E or the LS Tractor XJ2025H?

The LS Tractor MT225E leads on engine hp at 24.6 hp hp, compared to 24.4 hp hp for the LS Tractor XJ2025H.

Which has more PTO horsepower, the LS Tractor MT225E or the LS Tractor XJ2025H?

The LS Tractor MT225E leads on pto hp at 19.2 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which is heavier, the LS Tractor MT225E or the LS Tractor XJ2025H?

The LS Tractor MT225E leads on weight at 2,469 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the LS Tractor MT225E or the LS Tractor XJ2025H?

The LS Tractor MT225E leads on loader lift at 1,609 lb lb, compared to 1,276 lb lb for the LS Tractor XJ2025H.

Which has more three-point hitch lift capacity, the LS Tractor MT225E or the LS Tractor XJ2025H?

The LS Tractor MT225E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
