Across 7 measurable specs, this matchup is a dead heat: 3 categories to the LS Tractor MT240E, 3 to the TYM 4720, 1 tied. Machine pages: LS Tractor MT240E and TYM 4720 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor MT240E TYM 4720 Engine HP (hp) 40 hp 40 hp PTO HP (hp) 34 hp n/a Weight (lb) 2,881 lb ▲ 3,883 lbLoader Lift (lb) ▲ 2,153 lb2,094 lb 3-Pt Lift (24 in) (lb) 1,433 lb ▲ 2,580 lbLift Height (in) 94 in ▲ 103 inBreakout Force (lbf) ▲ 3,579 lbf2,755 lbf Hydraulic Flow (gpm) ▲ 13.7 gpm13.2 gpm Travel Speed (mph) 14.3 mph n/a

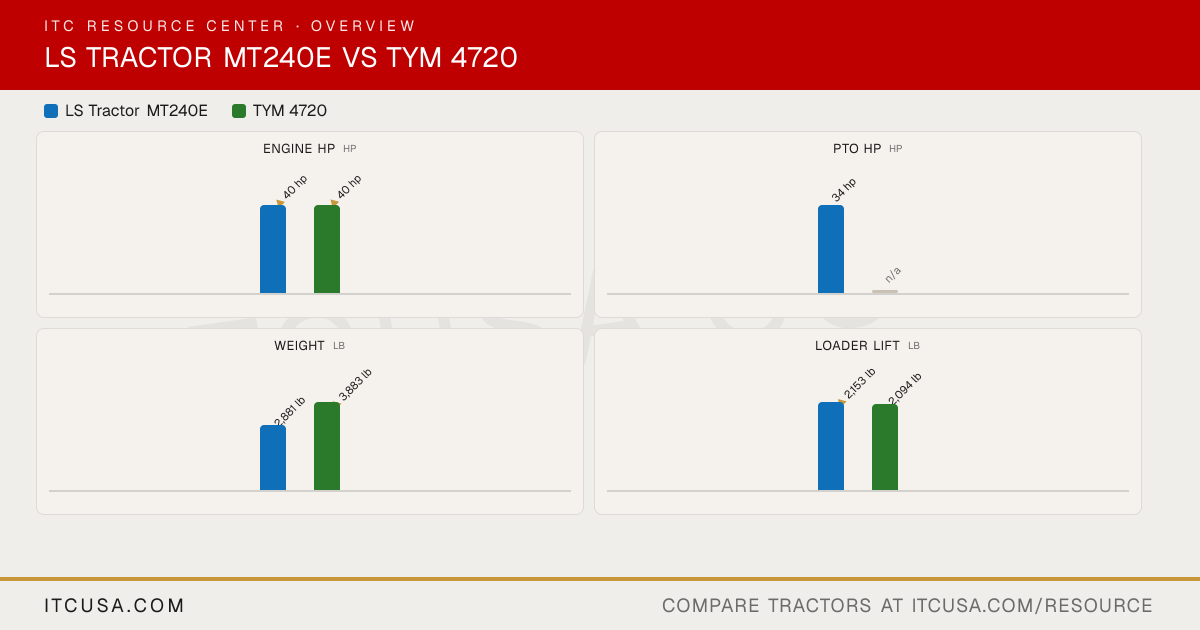

Overview Loader Work PTO Work
The headline numbers at a glance.
LS Tractor MT240E TYM 4720
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor MT240E TYM 4720
▶ EngineEngine Manufacturer LS Kukje Engine Model L3C19-T A2300N2 Engine Type 3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI Diesel, liquid-cooled No. of Cylinders 3 4 Displacement 114.7 in³ 139 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 40 hp 40 hp PTO Power 34 hp Not Published Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System CRDI (Delphi common rail direct injection) Not Published Alternator 70 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Gear pump, engine driven Not Published Implement Flow 8.2 gpm 8.9 gpm Steering Flow 5.5 gpm Not Published Total Hydraulic Flow 13.7 gpm 13.2 gpm Overall Hydraulic Pump Flow 13.7 gpm Not Published Hydraulic System Type Open center system, position control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 0 No. of Optional Remote Valves 1 or 2 pairs (optional) Up to 2 ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 11.1 gal Coolant Capacity 1.9 gal 9.8 qt Crankcase Capacity 1.5 gal 6 qt Transmission / Hydraulic System Capacity 8.5 gal 9.7 gal Front Axle Fluid Capacity 1.7 gal Not Published ▶ PTO & HitchPTO Type Independent (wet disc clutch) Live (2-stage clutch) PTO Rear Standard (540 rpm) 540 / 1000 rpm Mid-PTO Availability Optional (2,000 rpm) Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 2,580 lb Hitch Lift Capacity (at 24”) 1,433 lb Not Published Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Synchromesh No. of Speeds F12 x R12 12F/12R Max Travel Speed (Forward) 14.33 mph Not Published Max Travel Speed (Reverse) 13.63 mph Not Published Clutch Dry single clutch Not Published Differential Lock & Limited Slip Options Mechanical pedal type Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Front wheel mechanical assist (4WD) 4WD (MFWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 121 in 127 in Overall Width 54 in (R1); 66 in (R4) 61 in Wheelbase 69 in 71 in Ground Clearance Not Published 12.2 in Min. Turn Radius without Brakes 10.79 ft (left); 11.02 ft (right) Not Published Height to Top of ROPS 88 in 88 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,881 lb 3,883 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R4 industrial or R3 turf at no extra cost Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear R1 Agricultural - Front 7-14 8-18 R1 Agricultural - Rear 11.2-24 12.4-28 R3 Turf - Front 25x8.50-14 29x12.00-15 R3 Turf - Rear 41x14-20 44x18.00-20 R4 Industrial - Front 25x8.50-14 12-16.5 R4 Industrial - Rear 43x16-20 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LL3302 BL20 Loader Lift Height LL3302: 94 in BL20: 103 in Loader Lift Capacity (Full Height) LL3302: 2,153 lb (at pivot pin, full height) BL20: 2,094 lb Loader Breakout Force LL3302: 3,579 lb (at pivot pin) BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty Not Published
LS Tractor MT240E vs TYM 4720: Quick Answers
Which has more horsepower, the LS Tractor MT240E or the TYM 4720? They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which is heavier, the LS Tractor MT240E or the TYM 4720? The TYM 4720 leads on weight at 3,883 lb lb, compared to 2,881 lb lb for the LS Tractor MT240E.
Which has more loader lift capacity, the LS Tractor MT240E or the TYM 4720? The LS Tractor MT240E leads on loader lift at 2,153 lb lb, compared to 2,094 lb lb for the TYM 4720.
Which has more three-point hitch lift capacity, the LS Tractor MT240E or the TYM 4720? The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 1,433 lb lb for the LS Tractor MT240E. More Head-to-Heads
