Across 9 measurable specs, the LS Tractor MT7101 leads 9 categories to 0. Machine pages: LS Tractor MT573 and LS Tractor MT7101.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT573 | LS Tractor MT7101 |
|---|
| Engine HP (hp) | 73 hp | ▲ 100.6 hp |
| PTO HP (hp) | 62 hp | ▲ 85.5 hp |
| Weight (lb) | 7,901 lb | ▲ 9,645 lb |
| Loader Lift (lb) | 3,364 lb | ▲ 5,139 lb |
| 3-Pt Lift (24 in) (lb) | 4,718 lb | ▲ 5,952 lb |
| Lift Height (in) | 126.5 in | ▲ 139.9 in |
| Breakout Force (lbf) | 4,644 lbf | ▲ 5,313 lbf |
| Hydraulic Flow (gpm) | 19.8 gpm | ▲ 22.2 gpm |
| Travel Speed (mph) | 19.4 mph | ▲ 23.1 mph |

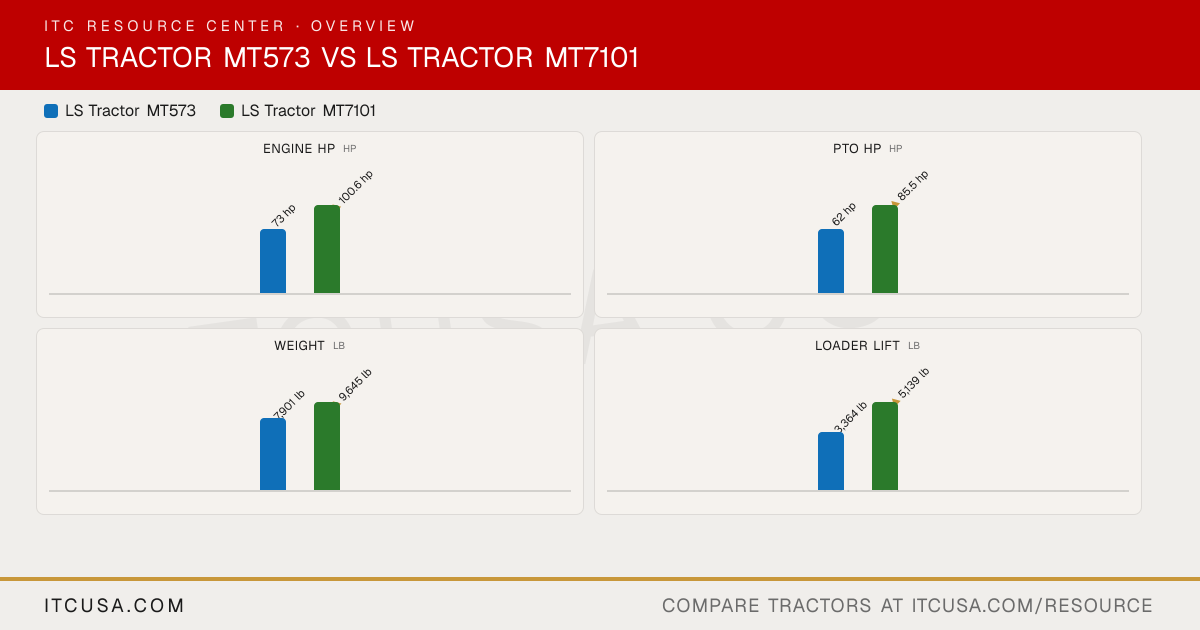

The headline numbers at a glance.
LS Tractor MT573LS Tractor MT7101
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT573 | LS TractorMT7101 |
|---|
|
|---|
| PTO Power | 62 hp | 85.5 hp |
|---|
| Alternator | 70 A, 12 V | 120 A, 14 V |
|---|
| Air Cleaner | Dry | Dry |
|---|
| Engine Type | In-line vertical, water cooled 4-cycle diesel, CRDI | In-line, water-cooled, 4 stroke, CRDI |
|---|
| Fuel System | Delphi, CRDI | CRDI (Bosch CP4.11) |
|---|
| Displacement | 152.9 in³ | 206.7 in³ |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Rated Engine Speed | 2500 rpm | 2200 rpm |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Engine Manufacturer | LS Mtron | FPT Industrial |
|---|
| Engine Power (Gross) | 73 hp | 100.6 hp |
|---|
| Engine Emissions Constraints | EPA Tier 4F | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Applicable | Not Applicable |
|---|
| Weight with Cab and Loader | 7,901 lb | 9,645 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty | 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty |
|---|
|
|---|
| Pump Type | Gear type, engine drive | Gear pump type, engine drive |
|---|
| Steering Flow | 6.6 gpm | 6.5 gpm |
|---|
| Implement Flow | 13.2 gpm | 15.7 gpm |
|---|
| Total Hydraulic Flow | 19.8 gpm | 22.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 19.8 gpm | 22.2 gpm |
|---|
| No. of Optional Remote Valves | Not Published | 1 Pair (Rear) |
|---|
| No. of Standard Remote Valves | 3 Pairs (Front), 3 Pairs (Rear) | 3 Pairs (Front), 2 Pairs (Rear) |
|---|
|
|---|
| PTO Rear | 540 / 750 / 1,000 | 540 / 750 / 1,000 |
|---|
| PTO Type | Independent | Independent |
|---|
| Lift Control Type | Position & Draft | Position & Draft |
|---|
| Hitch Lift Capacity | 6,614 lbs | 8,378 lb |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity (at 24”) | 4,718 lbs | 5,952 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Multiple options available (Ag, R14) | Multiple options available (Ag, R14) |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | 16.9-30 | 18.4-34 |
|---|
| R1 Agricultural - Front | 11.2-24 | 13.6-24 |
|---|
|
|---|
| Coolant Capacity | 2.6 gal | 3.2 gal |
|---|
| Crankcase Capacity | 2.1 gal | 1.7-2.1 gal (6.5-2.1 gal) |
|---|
| Fuel Tank Capacity | 26.4 gal | 30.4 gal |
|---|
| Front Axle Fluid Capacity | 1.5 gal | 1.4 gal |
|---|
| Transmission / Hydraulic System Capacity | 14.5 gal | 14.5 gal |
|---|
|
|---|
| Loader Lift Height | 126.5 in | 139.9 in |
|---|
| Loader Breakout Force | 4,644 lb | 5,313 lb |
|---|
| Quick Attach Loader System | LL6100: ISO 24410 “Quick Attachment” (Bobcat-type / skid-steer style; lever-lock with latch pins) | LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove) |
|---|
| Loader Lift Capacity (Full Height) | 3,364 lb | 5,139 lb |
|---|
|
|---|
| Clutch | Wet clutch disks | Wet clutch disks |
|---|
| No. of Speeds | F20 x R20 | F24 X R24 |
|---|
| Transmission Type | Power Shuttle | Power shuttle with Hi-Lo and Hand clutch |
|---|
| Max Travel Speed (Forward) | 19.4 mph | 23.1 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic differential lock (EHD) | Electro-Hydraulic Differential lock (EHD) |
|---|
|
|---|
| Brakes | Not Published | Wet, Multi-disc |
|---|
| Steering | Hydrostatic | Hydrostatic |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Air suspension seat (10° swivel) | Air suspension seat |
|---|
|
|---|
| Wheelbase | 84.6 in | 90 in |
|---|
| Overall Width | 74.4 in | 78.7 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Applicable | Not Applicable |
|---|
| Height to Top of Cab Model | 104.4 in | 107 in |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Applicable |
|---|
| Min. Turn Radius without Brakes | 13.0 ft (4.0 m) | Not Published |
|---|
| Overall Length with 3-Point Hitch | 166.7 in | 171 in |
|---|
LS Tractor MT573 vs LS Tractor MT7101: Quick Answers
- Which has more horsepower, the LS Tractor MT573 or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on engine hp at 100.6 hp hp, compared to 73 hp hp for the LS Tractor MT573.
- Which has more PTO horsepower, the LS Tractor MT573 or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on pto hp at 85.5 hp hp, compared to 62 hp hp for the LS Tractor MT573.
- Which is heavier, the LS Tractor MT573 or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on weight at 9,645 lb lb, compared to 7,901 lb lb for the LS Tractor MT573.
- Which has more loader lift capacity, the LS Tractor MT573 or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on loader lift at 5,139 lb lb, compared to 3,364 lb lb for the LS Tractor MT573.
- Which has more three-point hitch lift capacity, the LS Tractor MT573 or the LS Tractor MT7101?
- The LS Tractor MT7101 leads on 3-pt lift (24 in) at 5,952 lb lb, compared to 4,718 lb lb for the LS Tractor MT573.
