Across 4 measurable specs, the LS Tractor MT7101 leads 4 categories to 0. Machine pages: LS Tractor MT7101 and Massey Ferguson MF 275 XTRA.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT7101 | Massey Ferguson MF 275 XTRA |
|---|
| Engine HP (hp) | ▲ 100.6 hp | 75 hp |
| PTO HP (hp) | 85.5 hp | — |
| Weight (lb) | 9,645 lb | — |
| Loader Lift (lb) | 5,139 lb | — |
| 3-Pt Lift (24 in) (lb) | ▲ 5,952 lb | 4,519 lb |
| Lift Height (in) | 139.9 in | — |
| Breakout Force (lbf) | 5,313 lbf | — |
| Hydraulic Flow (gpm) | ▲ 22.2 gpm | 10 gpm |
| Travel Speed (mph) | ▲ 23.1 mph | 18.6 mph |

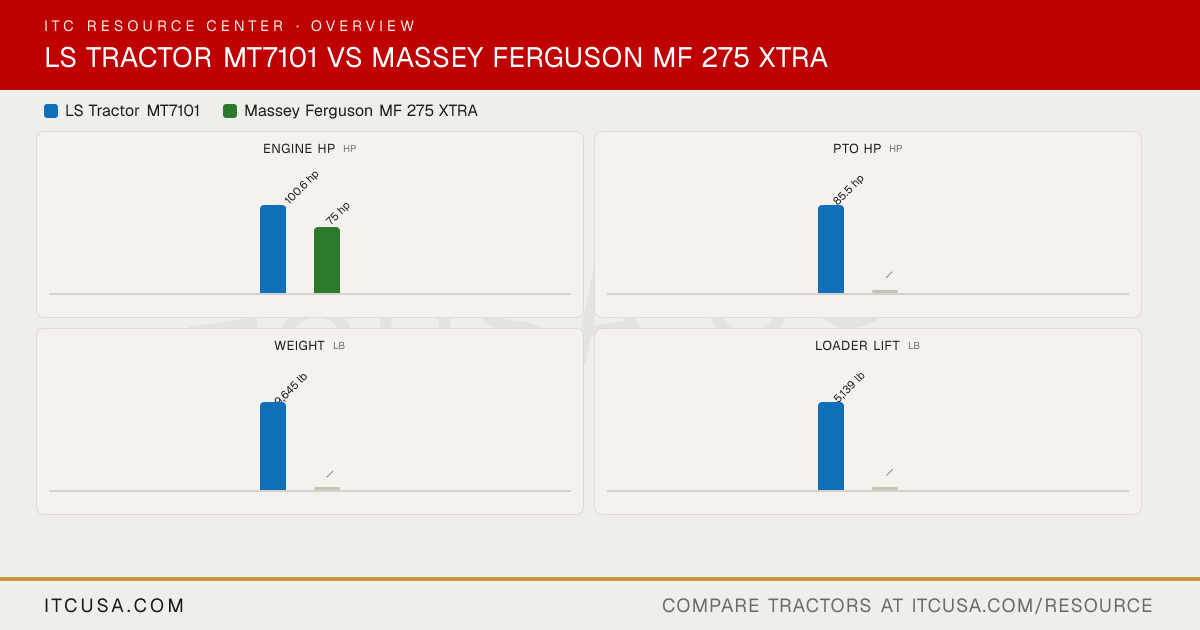

The headline numbers at a glance.
LS Tractor MT7101Massey Ferguson MF 275 XTRA
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT7101 | Massey FergusonMF 275 XTRA |
|---|
|
|---|
| PTO Power | 85.5 hp | Not Published |
|---|
| Alternator | 120 A, 14 V | Not Published |
|---|
| Air Cleaner | Dry | Dry Type / Oil Bath |
|---|
| Engine Type | In-line, water-cooled, 4 stroke, CRDI | 4-cylinder diesel |
|---|
| Fuel System | CRDI (Bosch CP4.11) | Not Published |
|---|
| Displacement | 206.7 in³ | 244.1 in³ |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Rated Engine Speed | 2200 rpm | 2200 rpm |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Engine Manufacturer | FPT Industrial | Simpson |
|---|
| Engine Power (Gross) | 100.6 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | Not Applicable | Not Published |
|---|
| Weight with Cab and Loader | 9,645 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty | Not Published |
|---|
|
|---|
| Pump Type | Gear pump type, engine drive | Scotch yoke pump (rear axle mounted) |
|---|
| Steering Flow | 6.5 gpm | 5.3 gpm |
|---|
| Implement Flow | 15.7 gpm | 4.8 gpm |
|---|
| Total Hydraulic Flow | 22.2 gpm | 10.0 gpm |
|---|
| Hydraulic System Type | Open center | Open centre |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 22.2 gpm | 10.0 gpm |
|---|
| No. of Optional Remote Valves | 1 Pair (Rear) | Not Published |
|---|
| No. of Standard Remote Valves | 3 Pairs (Front), 2 Pairs (Rear) | Not Published |
|---|
|
|---|
| PTO Rear | 540 / 750 / 1,000 | 540 rpm |
|---|
| PTO Type | Independent | Live PTO |
|---|
| Lift Control Type | Position & Draft | Ferguson System |
|---|
| Hitch Lift Capacity | 8,378 lb | 4,519 lb |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 5,952 lb | Not Published |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Multiple options available (Ag, R14) | R1 Agricultural |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | 18.4-34 | 16.9X30; 18.4X30 |
|---|
| R1 Agricultural - Front | 13.6-24 | 2WD: 7.50X16; 4WD: 12.4X24 |
|---|
|
|---|
| Coolant Capacity | 3.2 gal | Not Published |
|---|
| Crankcase Capacity | 1.7-2.1 gal (6.5-2.1 gal) | Not Published |
|---|
| Fuel Tank Capacity | 30.4 gal | 18.5 gal |
|---|
| Front Axle Fluid Capacity | 1.4 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 14.5 gal | Not Published |
|---|
|
|---|
| Loader Lift Height | 139.9 in | Not Published |
|---|
| Loader Breakout Force | 5,313 lb | Not Published |
|---|
| Quick Attach Loader System | LL8100: ISO 24410 “Quick Attachment” (lever-lock with latch pins into the attachment latch groove) | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 5,139 lb | Not Published |
|---|
|
|---|
| Clutch | Wet clutch disks | Dual Dry Plate |
|---|
| No. of Speeds | F24 X R24 | 8F / 2R |
|---|
| Transmission Type | Power shuttle with Hi-Lo and Hand clutch | Sliding mesh gearbox |
|---|
| Max Travel Speed (Forward) | 23.1 mph | 18.6 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-Hydraulic Differential lock (EHD) | Mechanical differential lock (foot pedal) |
|---|
|
|---|
| Brakes | Wet, Multi-disc | Oil immersed, mechanical actuation |
|---|
| Steering | Hydrostatic | Hydrostatic |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Air suspension seat | Not Published |
|---|
|
|---|
| Wheelbase | 90 in | 90.2 in |
|---|
| Overall Width | 78.7 in | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Applicable | 99.2 in |
|---|
| Height to Top of Cab Model | 107 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Applicable | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 171 in | 153.1 in |
|---|
LS Tractor MT7101 vs Massey Ferguson MF 275 XTRA: Quick Answers
- Which has more horsepower, the LS Tractor MT7101 or the Massey Ferguson MF 275 XTRA?
- The LS Tractor MT7101 leads on engine hp at 100.6 hp hp, compared to 75 hp hp for the Massey Ferguson MF 275 XTRA.
- Which has more three-point hitch lift capacity, the LS Tractor MT7101 or the Massey Ferguson MF 275 XTRA?
- The LS Tractor MT7101 leads on 3-pt lift (24 in) at 5,952 lb lb, compared to 4,519 lb lb for the Massey Ferguson MF 275 XTRA.
