Across 5 measurable specs, the New Holland Workmaster 100 PLUS leads 3 categories to 2. Machine pages: LS Tractor MT7101 and New Holland Workmaster 100 PLUS.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT7101 | New Holland Workmaster 100 PLUS |
|---|
| Engine HP (hp) | 100.6 hp | ▲ 101 hp |
| PTO HP (hp) | ▲ 85.5 hp | 85 hp |
| Weight (lb) | 7,985 lb | n/a |
| Loader Lift (lb) | ▲ 5,139 lb | 3,882 lb |
| 3-Pt Lift (24 in) (lb) | 8,378 lb | n/a |
| Lift Height (in) | 139.9 in | ▲ 143.9 in |
| Breakout Force (lbf) | 5,313 lbf | n/a |
| Hydraulic Flow (gpm) | 22.2 gpm | ▲ 26.6 gpm |
| Travel Speed (mph) | 23.1 mph | n/a |

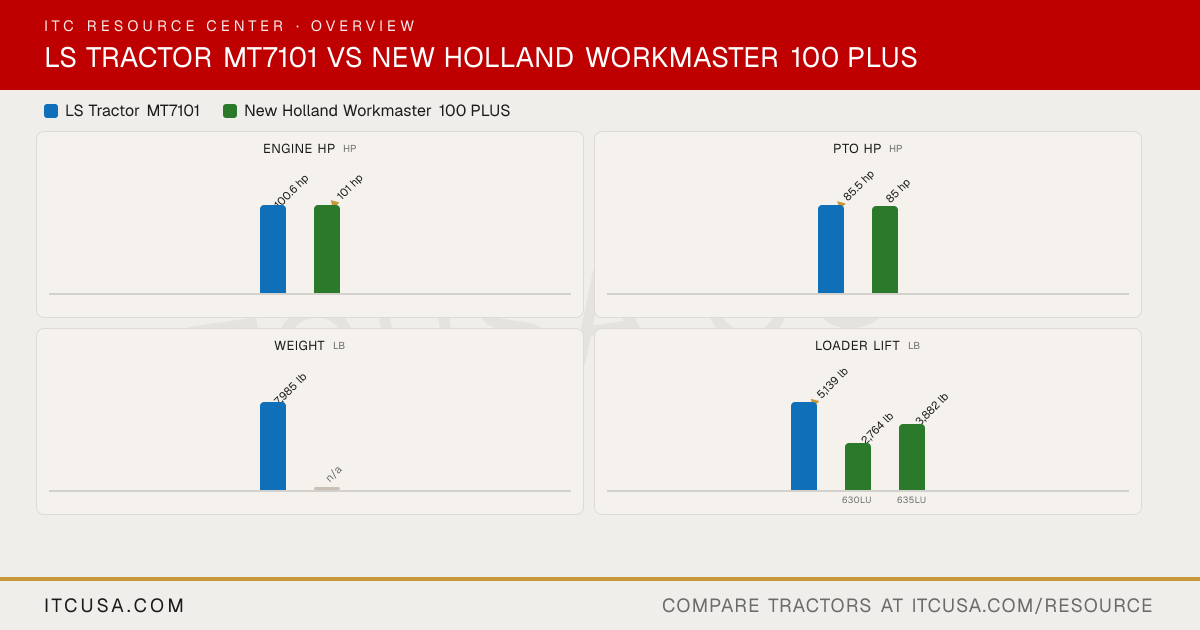

The headline numbers at a glance.
LS Tractor MT7101New Holland Workmaster 100 PLUS
ITCUSA.COMITCUSA.COMITCUSA.COM
Loader Liftlb
▲5,139 lb
2,764 lb
3,882 lb
630LU635LU
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT7101 | New HollandWorkmaster 100 PLUS |
|---|
|
|---|
| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | F5G | F36 |
|---|
| Engine Type | 4-cylinder, CRDI, water-cooled | 4-cylinder |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 206.7 in³ | Not Published |
|---|
| Rated Engine Speed | 2200 rpm | Not Published |
|---|
| Engine Power (Gross) | 100.6 hp | 101 hp |
|---|
| PTO Power | 85.5 hp | 85 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Gear pump type, engine drive | Not Published |
|---|
| Implement Flow | 15.7 gpm | Not Published |
|---|
| Steering Flow | 6.5 gpm | Not Published |
|---|
| Total Hydraulic Flow | 22.2 gpm | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | 22.2 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 3 Pairs (Front), 2 Pairs (Rear) | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 30.4 gal | 34.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 14.5 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Not Published |
|---|
| PTO Rear | 540 / 750 / 1,000 | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Not Published |
|---|
| Hitch Lift Capacity | 8,378 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Position & Draft | Not Published |
|---|
|
|---|
| Transmission Type | Power shuttle | 12x12 electronic power shuttle |
|---|
| No. of Speeds | 24 X 24 | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 23.1 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet disks | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-Hydraulic Differential lock (EHD) | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic | Not Published |
|---|
| Brakes | Wet, Multi-disc | Not Published |
|---|
| Seat Suspension & Adjustability | Air suspension seat | Air ride seat (standard); instructor seat available |
|---|
| Front Axle Type | Not Published | Class 1.0 HD heavy-duty front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 78.7 in | Not Published |
|---|
| Wheelbase | 90 in | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 107 in | Not Published |
|---|
| Overall Length | 152.2 in (frame to link) | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 7,985 lb | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | 9,645 lb (7,985 + 1,660, computed; LL8100 loader without bucket) | Not Published |
|---|
|
|---|
| Tire Size & Options | Ag 13.6-24 / 18.4-34; R14 340/70R28 / 460/75R38 | Not Published |
|---|
| R1 Agricultural - Front | 13.6-24 | Not Published |
|---|
| R1 Agricultural - Rear | 18.4-34 | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | LL8100 | 630LU; 635LU |
|---|
| Loader Lift Height | LL8100: 139.9 in | 143.9 in (630LU and 635LU) |
|---|
| Loader Lift Capacity (Full Height) | LL8100: 5,139 lb (at pivot pin) | 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) |
|---|
| Loader Breakout Force | LL8100: 5,313 lb (at pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Basic 2 years or 750 hours; powertrain 5 years or 1,500 hours | Not Published |
|---|
LS Tractor MT7101 vs New Holland Workmaster 100 PLUS: Quick Answers
- Which has more horsepower, the LS Tractor MT7101 or the New Holland Workmaster 100 PLUS?
- The New Holland Workmaster 100 PLUS leads on engine hp at 101 hp hp, compared to 100.6 hp hp for the LS Tractor MT7101.
- Which has more PTO horsepower, the LS Tractor MT7101 or the New Holland Workmaster 100 PLUS?
- The LS Tractor MT7101 leads on pto hp at 85.5 hp hp, compared to 85 hp hp for the New Holland Workmaster 100 PLUS.
- Which has more loader lift capacity, the LS Tractor MT7101 or the New Holland Workmaster 100 PLUS?
- The LS Tractor MT7101 leads on loader lift at 5,139 lb lb, compared to 3,882 lb lb for the New Holland Workmaster 100 PLUS.
