Across 7 measurable specs, this matchup is a dead heat: 3 categories to the LS Tractor XR4140, 3 to the TYM 4720, 1 tied. Machine pages: LS Tractor XR4140 and TYM 4720 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor XR4140 TYM 4720 Engine HP (hp) 40 hp 40 hp PTO HP (hp) 34.4 hp n/a Weight (lb) ▲ 4,210 lb3,883 lb Loader Lift (lb) ▲ 2,713 lb2,094 lb 3-Pt Lift (24 in) (lb) 2,469 lb ▲ 2,580 lbLift Height (in) 96.3 in ▲ 103 inBreakout Force (lbf) ▲ 3,802 lbf2,755 lbf Hydraulic Flow (gpm) 12.3 gpm ▲ 13.2 gpmTravel Speed (mph) 16.8 mph n/a
Overview Loader Work PTO Work

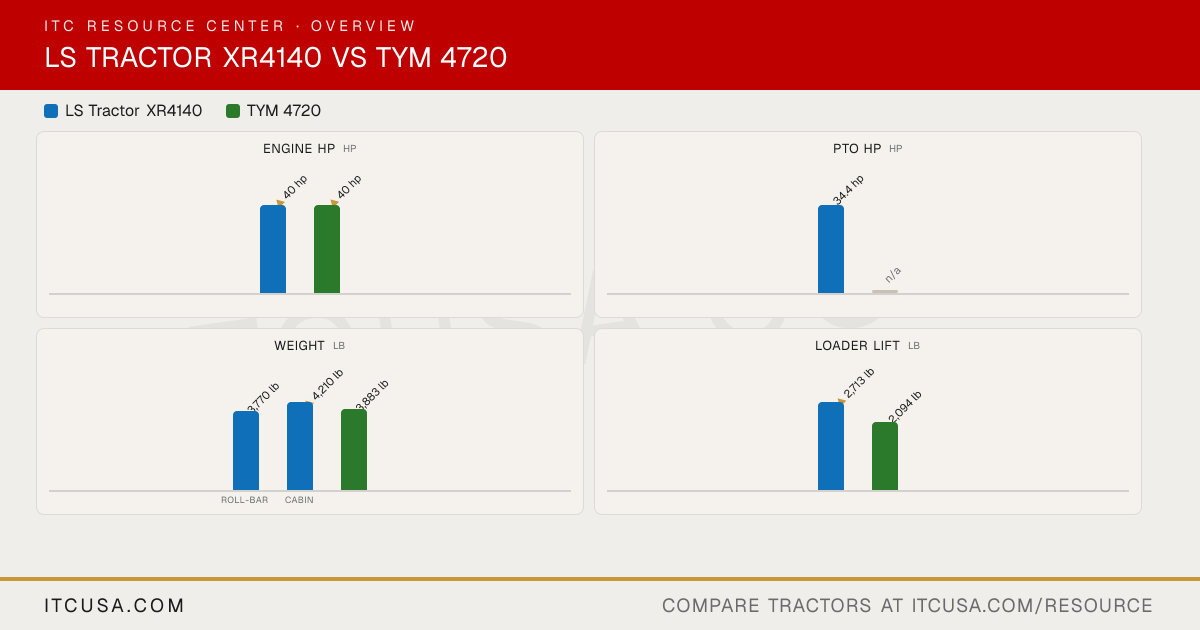

The headline numbers at a glance.
LS Tractor XR4140 TYM 4720
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
3,770 lb
▲ 4,210 lb
3,883 lb
Roll-bar Cabin
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor XR4140 TYM 4720
▶ EngineEngine Manufacturer LS Kukje Engine Model L3C19-T4 A2300N2 Engine Type 4-stroke, vertical, water cooling, CRDI Diesel, liquid-cooled No. of Cylinders 3 4 Displacement 114.7 in³ 139 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 40 hp 40 hp PTO Power 34.4 hp Not Published Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Delphi CRDI (Common Rail Direct Injection) Not Published Alternator 70 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Gear pump type, engine drive Not Published Implement Flow 8.2 gpm 8.9 gpm Steering Flow 4.1 gpm (mechanical); 5.5 gpm (HST) Not Published Total Hydraulic Flow 12.3 gpm 13.2 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 0 No. of Optional Remote Valves Not Published Up to 2 ▶ Fluid CapacityFuel Tank Capacity 10.6 gal (roll-bar); 12.4 gal (cabin) 11.1 gal Coolant Capacity 2.3 gal 9.8 qt Crankcase Capacity 1.6 gal 6 qt Transmission / Hydraulic System Capacity 11.4 gal 9.7 gal Front Axle Fluid Capacity 2.1 gal Not Published ▶ PTO & HitchPTO Type Independent PTO with wet disk clutch Live (2-stage clutch) PTO Rear 540 (standard); 540 / 750 / 1,000 (optional 3-speed) 540 / 1000 rpm Mid-PTO Availability Yes, 2000 rpm mid-PTO Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,756 lb 2,580 lb Hitch Lift Capacity (at 24”) 2,469 lb Not Published Lift Control Type Position and draft control Not Published ▶ Transmission & DrivetrainTransmission Type Synchro-shuttle (mechanical) Synchromesh No. of Speeds F16 x R16 (F32 x R16 with creeper, optional) 12F/12R Max Travel Speed (Forward) 16.8 mph Not Published Max Travel Speed (Reverse) 15.3 mph Not Published Clutch Dry single clutch (mechanical only) Not Published Differential Lock & Limited Slip Options Mechanical pedal type differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published 4WD (MFWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133 in 127 in Overall Width 62.5 in 61 in Wheelbase 73.2 in 71 in Ground Clearance Not Published 12.2 in Min. Turn Radius without Brakes 9.5 ft (with brake applied) Not Published Height to Top of ROPS 93 in 88 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92 in Not Published ▶ WeightTractor Weight (Base) Roll-bar: 3,770 lb; Cabin: 4,210 lb 3,883 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag 9.5-16 / 13.6-24; Turf 28x8.5-15 / 41x14-20; Industrial 12-16.5 / 17.5L-24 Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear R1 Agricultural - Front 9.5-16 (6PR) 8-18 R1 Agricultural - Rear 13.6-24 (8PR) 12.4-28 R3 Turf - Front 28x8.5-15 29x12.00-15 R3 Turf - Rear 41x14-20 44x18.00-20 R4 Industrial - Front 12-16.5 12-16.5 R4 Industrial - Rear 17.5L-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model LL4104 BL20 Loader Lift Height LL4104: 96.3 in BL20: 103 in Loader Lift Capacity (Full Height) LL4104: 2,713 lb BL20: 2,094 lb Loader Breakout Force LL4104: 3,802 lb BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty Not Published
LS Tractor XR4140 vs TYM 4720: Quick Answers
Which has more horsepower, the LS Tractor XR4140 or the TYM 4720? They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which is heavier, the LS Tractor XR4140 or the TYM 4720? The LS Tractor XR4140 leads on weight at 4,210 lb lb, compared to 3,883 lb lb for the TYM 4720.
Which has more loader lift capacity, the LS Tractor XR4140 or the TYM 4720? The LS Tractor XR4140 leads on loader lift at 2,713 lb lb, compared to 2,094 lb lb for the TYM 4720.
Which has more three-point hitch lift capacity, the LS Tractor XR4140 or the TYM 4720? The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 2,469 lb lb for the LS Tractor XR4140. More Head-to-Heads
