LS Tractor XJ2025H vs Mahindra Max 24

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the LS Tractor XJ2025H, 4 to the Mahindra Max 24, 1 tied. Machine pages: LS Tractor XJ2025H and Mahindra Max 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XJ2025H	Mahindra Max 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	18.5 hp	▲ 19.5 hp
Weight (lb)	1,609 lb	▲ 1,693 lb
Loader Lift (lb)	▲ 1,091 lb	900 lb
3-Pt Lift (24 in) (lb)	1,058 lb	▲ 1,400 lb
Lift Height (in)	▲ 85.7 in	75 in
Breakout Force (lbf)	1,426 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	▲ 8.5 gpm	4.6 gpm
Travel Speed (mph)	▲ 11.5 mph	9.6 mph

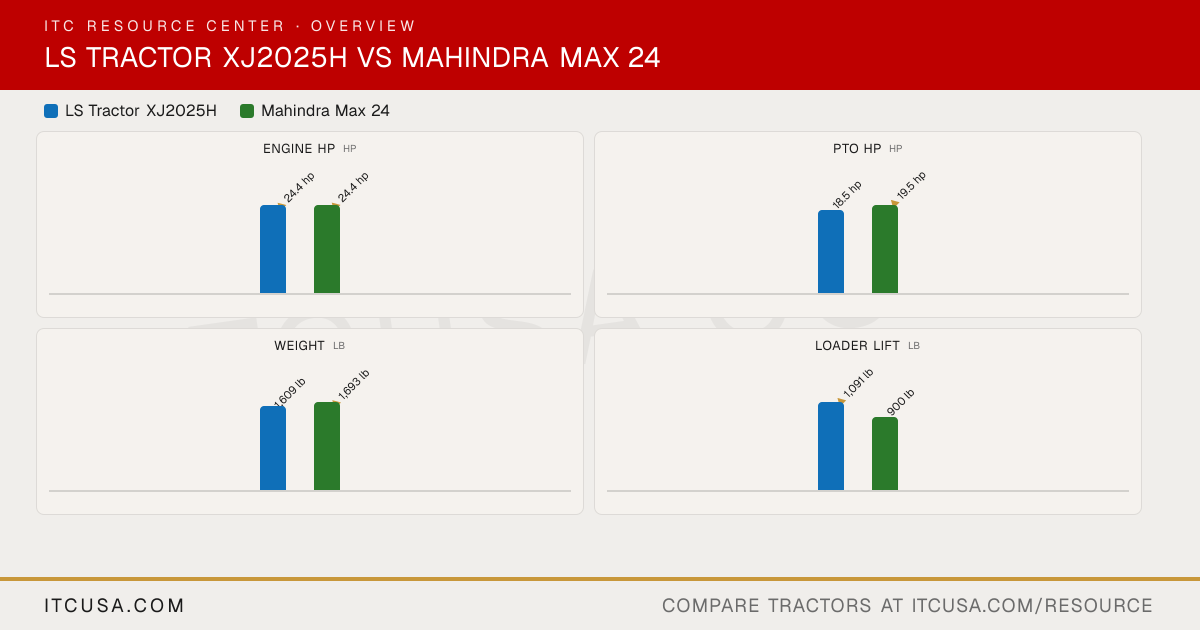

The headline numbers at a glance.

LS Tractor XJ2025HMahindra Max 24

Engine HPhp

▲24.4 hp

PTO HPhp

18.5 hp

▲19.5 hp

Weightlb

1,609 lb

▲1,693 lb

Loader Liftlb

▲1,091 lb

900 lb

3-Pt Lift (24 in)lb

1,058 lb

▲1,400 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	MahindraMax 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	Four stroke, indirect injection water-cooled diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	19.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Indirect Injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Transmission drive	Not Published
Implement Flow	5.9 gpm	4.6 gpm
Steering Flow	2.6 gpm	2.7 gpm
Total Hydraulic Flow	8.5 gpm	Not Published
Overall Hydraulic Pump Flow	8.5 gpm	Not Published
Hydraulic System Type	Position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	2 quick couplers (optional)	1

Fuel Tank Capacity	6.6 gal	6.1 gal
Coolant Capacity	1.0 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	5.3 gal	Not Published
Front Axle Fluid Capacity	0.8 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Live
PTO Rear	Standard (540 rpm)	540 @ 2376 rpm
Mid-PTO Availability	Standard (2,000 rpm)	2000 @ 2556 rpm
Category, 3-Point Hitch	Category I	Category I, with check chains
Hitch Lift Capacity	1,433 lb	1,400 lb
Hitch Lift Capacity (at 24”)	1,058 lb	Not Published
Lift Control Type	Manual position control	Position control

Transmission Type	Hydrostatic Drive	HST - 2 ranges
No. of Speeds	2 ranges	Infinite
Max Travel Speed (Forward)	11.5 mph	9.6 mph
Max Travel Speed (Reverse)	7.2 mph	4.9 mph
Clutch	Not Published	Single plate, dry
Differential Lock & Limited Slip Options	Mechanical pedal type	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Width	44.9 in	50.7 in
Wheelbase	59 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	7.2 ft
Height to Top of ROPS	84.5 in	81.5 in (with industrial tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	103 in (bumper to link)	104.1 in

Tractor Weight (Base)	1,609 lb	1,693 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Agricultural, Turf, Industrial	Not Published
R1 Agricultural - Front	23X10.50-12	6x12
R1 Agricultural - Rear	255/75-15.3	9.5x16
R3 Turf - Front	23x8.5-12	20x8-10
R3 Turf - Rear	33x12-16.5	29x12.5-15
R4 Industrial - Front	23x8.5-12	20x8-10
R4 Industrial - Rear	33x12-16.5	27x12.5-15

Quick Attach Loader System	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin	Not Published
Loader Model	LL2102	Max 24L
Loader Lift Height	LL2102: 85.7 in	75 in
Loader Lift Capacity (Full Height)	LL2102: 1,091 lb (at pivot pin, max height)	900 lb (at pivot pin)
Loader Breakout Force	LL2102: 1,426 lb (at pivot pin)	2,000 lb (at pivot pin)

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a Mahindra dealer near you

LS Tractor XJ2025H vs Mahindra Max 24: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the Mahindra Max 24?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XJ2025H or the Mahindra Max 24?: The Mahindra Max 24 leads on pto hp at 19.5 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.
Which is heavier, the LS Tractor XJ2025H or the Mahindra Max 24?: The Mahindra Max 24 leads on weight at 1,693 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.
Which has more loader lift capacity, the LS Tractor XJ2025H or the Mahindra Max 24?: The LS Tractor XJ2025H leads on loader lift at 1,091 lb lb, compared to 900 lb lb for the Mahindra Max 24.
Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the Mahindra Max 24?: The Mahindra Max 24 leads on 3-pt lift (24 in) at 1,400 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

More Head-to-Heads

Category Verdict

Spec	LS Tractor XJ2025H	Mahindra Max 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	18.5 hp	▲ 19.5 hp
Weight (lb)	1,609 lb	▲ 1,693 lb
Loader Lift (lb)	▲ 1,091 lb	900 lb
3-Pt Lift (24 in) (lb)	1,058 lb	▲ 1,400 lb
Lift Height (in)	▲ 85.7 in	75 in
Breakout Force (lbf)	1,426 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	▲ 8.5 gpm	4.6 gpm
Travel Speed (mph)	▲ 11.5 mph	9.6 mph

The headline numbers at a glance.

LS Tractor XJ2025HMahindra Max 24

Engine HPhp

▲24.4 hp

PTO HPhp

18.5 hp

▲19.5 hp

Weightlb

1,609 lb

▲1,693 lb

Loader Liftlb

▲1,091 lb

900 lb

3-Pt Lift (24 in)lb

1,058 lb

▲1,400 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	MahindraMax 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	Four stroke, indirect injection water-cooled diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	19.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Indirect Injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Transmission drive	Not Published
Implement Flow	5.9 gpm	4.6 gpm
Steering Flow	2.6 gpm	2.7 gpm
Total Hydraulic Flow	8.5 gpm	Not Published
Overall Hydraulic Pump Flow	8.5 gpm	Not Published
Hydraulic System Type	Position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	2 quick couplers (optional)	1

Fuel Tank Capacity	6.6 gal	6.1 gal
Coolant Capacity	1.0 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	5.3 gal	Not Published
Front Axle Fluid Capacity	0.8 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Live
PTO Rear	Standard (540 rpm)	540 @ 2376 rpm
Mid-PTO Availability	Standard (2,000 rpm)	2000 @ 2556 rpm
Category, 3-Point Hitch	Category I	Category I, with check chains
Hitch Lift Capacity	1,433 lb	1,400 lb
Hitch Lift Capacity (at 24”)	1,058 lb	Not Published
Lift Control Type	Manual position control	Position control

Transmission Type	Hydrostatic Drive	HST - 2 ranges
No. of Speeds	2 ranges	Infinite
Max Travel Speed (Forward)	11.5 mph	9.6 mph
Max Travel Speed (Reverse)	7.2 mph	4.9 mph
Clutch	Not Published	Single plate, dry
Differential Lock & Limited Slip Options	Mechanical pedal type	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Width	44.9 in	50.7 in
Wheelbase	59 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	7.2 ft
Height to Top of ROPS	84.5 in	81.5 in (with industrial tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	103 in (bumper to link)	104.1 in

Tractor Weight (Base)	1,609 lb	1,693 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Agricultural, Turf, Industrial	Not Published
R1 Agricultural - Front	23X10.50-12	6x12
R1 Agricultural - Rear	255/75-15.3	9.5x16
R3 Turf - Front	23x8.5-12	20x8-10
R3 Turf - Rear	33x12-16.5	29x12.5-15
R4 Industrial - Front	23x8.5-12	20x8-10
R4 Industrial - Rear	33x12-16.5	27x12.5-15

Quick Attach Loader System	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin	Not Published
Loader Model	LL2102	Max 24L
Loader Lift Height	LL2102: 85.7 in	75 in
Loader Lift Capacity (Full Height)	LL2102: 1,091 lb (at pivot pin, max height)	900 lb (at pivot pin)
Loader Breakout Force	LL2102: 1,426 lb (at pivot pin)	2,000 lb (at pivot pin)

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a Mahindra dealer near you

LS Tractor XJ2025H vs Mahindra Max 24: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the Mahindra Max 24?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XJ2025H or the Mahindra Max 24?

The Mahindra Max 24 leads on pto hp at 19.5 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which is heavier, the LS Tractor XJ2025H or the Mahindra Max 24?

The Mahindra Max 24 leads on weight at 1,693 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the LS Tractor XJ2025H or the Mahindra Max 24?

The LS Tractor XJ2025H leads on loader lift at 1,091 lb lb, compared to 900 lb lb for the Mahindra Max 24.

Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the Mahindra Max 24?

The Mahindra Max 24 leads on 3-pt lift (24 in) at 1,400 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
