Across 0 measurable specs, this matchup is a dead heat: 0 categories to the Mahindra 1120, 0 to the Mahindra Max 24. Machine pages: Mahindra 1120 and Mahindra Max 24 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Mahindra 1120 Mahindra Max 24 Engine HP (hp) 20.1 hp — PTO HP (hp) 13.9 hp — Weight (lb) 2,026 lb — Loader Lift (lb) 794 lb — 3-Pt Lift (24 in) (lb) 771 lb — Lift Height (in) 68 in — Breakout Force (lbf) 1,433 lbf — Hydraulic Flow (gpm) 11.4 gpm — Travel Speed (mph) 7.3 mph —
Overview Loader Work PTO Work

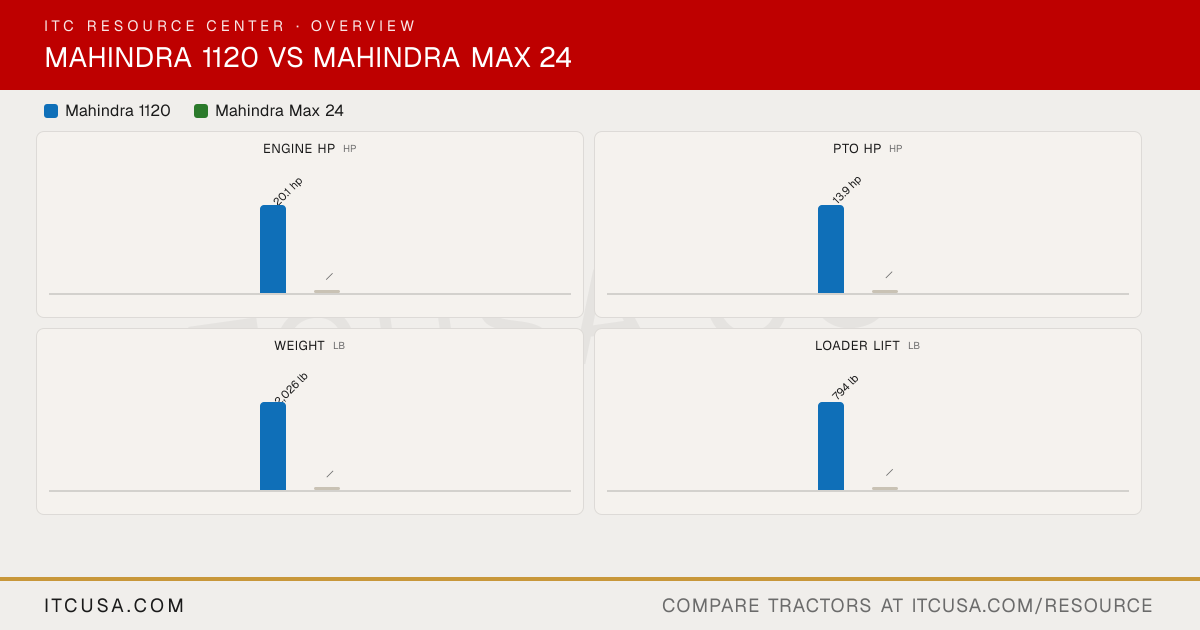

The headline numbers at a glance.
Mahindra 1120 Mahindra Max 24
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Mahindra 1120 Mahindra Max 24
▶ EnginePTO Power 13.9 hp — Alternator 55 A, 12 V — Air Cleaner Not Published — Engine Type Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine — Fuel System Indirect Injection — Displacement 67.2 in³ — No. of Cylinders 3 — Rated Engine Speed 2900 rpm — Cooling System Type Water-Cooled — Engine Manufacturer Mitsubishi — Engine Power (Gross) 20.1 hp @ 900 rpm — Engine Emissions Constraints No DPF — ▶ WeightWeight with ROPS and Loader 2026 lb — Weight with Cab and Loader Not Applicable — ▶ WarrantyWarranty Length & Coverage 7-Year Limited Powertrain Warranty — ▶ HydraulicsPump Type Not Published — Steering Flow 3.8 gpm — Implement Flow 7.6 gpm — Total Hydraulic Flow 11.4 gpm — Hydraulic System Type Open Center, full-live hydraulic with position control — Rear Remote Hydraulic Flow Not Published — Overall Hydraulic Pump Flow 11.4 gpm — No. of Optional Remote Valves Single or dual — No. of Standard Remote Valves Not Published — ▶ PTO & HitchPTO Rear 540 rpm @ 2837 rpm — PTO Type Independent Wet Clutch — Lift Control Type Position Control — Hitch Lift Capacity Not Published — Mid-PTO Availability Optional; 2500 rpm @ 2837 rpm — Category, 3-Point Hitch CAT I with check chains — Hitch Lift Capacity (at 24”) 771 lb — ▶ Tire OptionsR3 Turf - Rear 26X12-12 — R3 Turf - Front 18X8.5-10 — Tire Size & Options R3 Turf, R4 Industrial — R4 Industrial - Rear 26X12-12 — R4 Industrial - Front 18X8.5-10 — R1 Agricultural - Rear Not Published — R1 Agricultural - Front Not Published — ▶ Fluid CapacityCoolant Capacity Not Published — Crankcase Capacity Not Published — Fuel Tank Capacity 6.6 gal — Front Axle Fluid Capacity Not Published — Transmission / Hydraulic System Capacity Not Published — ▶ Loader & AttachmentsLoader Lift Height 68 in — Loader Breakout Force 1433 lb — Quick Attach Loader System L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups. — Loader Lift Capacity (Full Height) 794 lb — ▶ Transmission & DrivetrainClutch Not Applicable — No. of Speeds Infinite / 2 ranges — Transmission Type HST — Max Travel Speed (Forward) 7.3 mph — Max Travel Speed (Reverse) Not Published — Differential Lock & Limited Slip Options Not Published — ▶ Chassis, Steering & ControlsBrakes Single Pedal — Steering Hydrostatic Power Steering — Frame Type Not Published — Front Axle Type Not Published — Drawbar Capacity Not Published — Front Axle Rating Not Published — Seat Suspension & Adjustability Not Published — ▶ Dimensions & ManeuverabilityWheelbase 55.1 in — Overall Width 46.3 in — Ground Clearance 6.7 in — Height to Top of ROPS 86.6 in — Height to Top of Cab Model Not Applicable — Height to Top of ROPS (folded) Not Published — Min. Turn Radius without Brakes Not Published — Overall Length with 3-Point Hitch 100.4 in —
