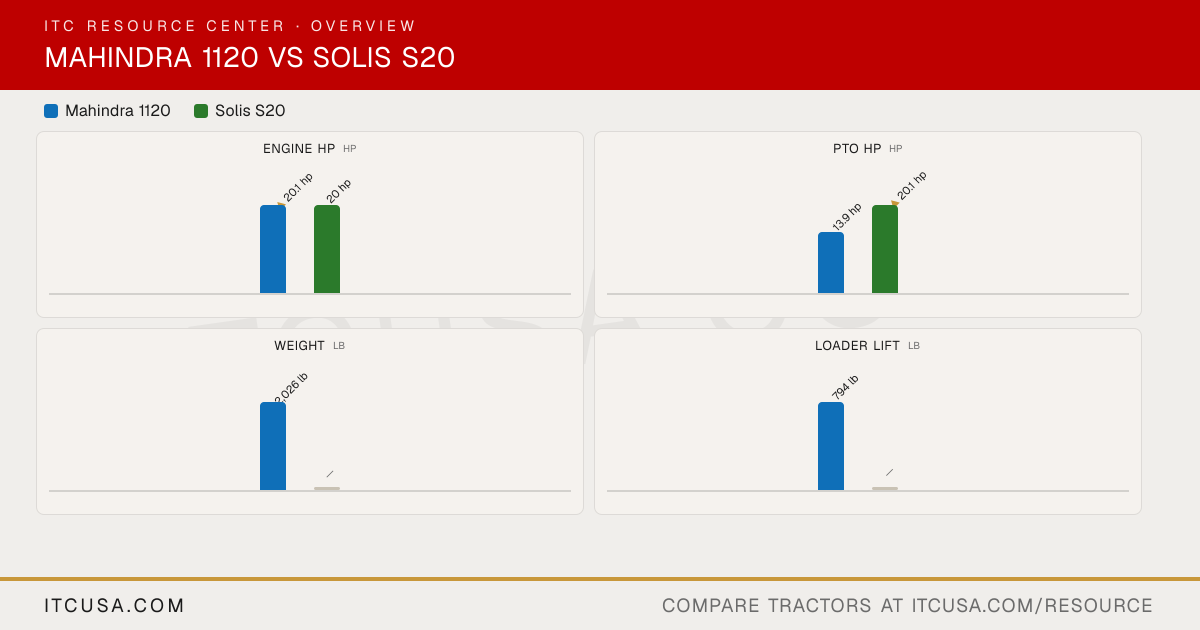

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra1120
SolisS20
PTO Power
13.9 hp
20.1 hp
Alternator
55 A, 12 V
42 A, 12 V
Air Cleaner
Not Published
—
Engine Type
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Mitsubishi 3 Cylinder
Fuel System
Indirect Injection
—
Displacement
67.2 in³
58.1 in³
No. of Cylinders
3
3
Rated Engine Speed
2900 rpm
2700
Cooling System Type
Water-Cooled
Water Cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Power (Gross)
20.1 hp @ 900 rpm
20 hp
Engine Emissions Constraints
No DPF
Stage V
Engine Model
—
Mitsubishi MVL - 3E
Weight with ROPS and Loader
2026 lb
—
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
7-Year Limited Powertrain Warranty
—
Pump Type
Not Published
—
Steering Flow
3.8 gpm
—
Implement Flow
7.6 gpm
—
Total Hydraulic Flow
11.4 gpm
13.3 LPM
Hydraulic System Type
Open Center, full-live hydraulic with position control
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
11.4 gpm
—
No. of Optional Remote Valves
Single or dual
—
No. of Standard Remote Valves
Not Published
—
PTO Rear
540 rpm @ 2837 rpm
—
PTO Type
Independent Wet Clutch
Mechanical
Lift Control Type
Position Control
—
Hitch Lift Capacity
Not Published
—
Mid-PTO Availability
Optional; 2500 rpm @ 2837 rpm
—
Category, 3-Point Hitch
CAT I with check chains
—
Hitch Lift Capacity (at 24”)
771 lb
—
R3 Turf - Rear
26X12-12
33x15.5-16.5
R3 Turf - Front
18X8.5-10
23x8.50-12
Tire Size & Options
R3 Turf, R4 Industrial
—
R4 Industrial - Rear
26X12-12
33x15.5-16.5
R4 Industrial - Front
18X8.5-10
23x8.50-12
R1 Agricultural - Rear
Not Published
8.00 - 18
R1 Agricultural - Front
Not Published
5.00 - 12
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
6.6 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
68 in
—
Loader Breakout Force
1433 lb
—
Quick Attach Loader System
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
—
Loader Lift Capacity (Full Height)
794 lb
—
Clutch
Not Applicable
Single Clutch
No. of Speeds
Infinite / 2 ranges
6F+2R
Transmission Type
HST
Sliding Mesh
Max Travel Speed (Forward)
7.3 mph
15.26 Km/Hr @ 2700
Max Travel Speed (Reverse)
Not Published
—
Differential Lock & Limited Slip Options
Not Published
Yes, Foot Operated
Brakes
Single Pedal
Dry Drum Brakes
Steering
Hydrostatic Power Steering
Power Steering
Frame Type
Not Published
—
Front Axle Type
Not Published
4WD
Drawbar Capacity
Not Published
—
Front Axle Rating
Not Published
—
Seat Suspension & Adjustability
Not Published
—
Wheelbase
55.1 in
55.9 in
Overall Width
46.3 in
—
Ground Clearance
6.7 in
7.9 in
Height to Top of ROPS
86.6 in
75.8 in
Height to Top of Cab Model
Not Applicable
NOT FOUND — No cab model exists for the Solis S20. Unit is equipped with a Two-post ROPS only. Height to top of ROPS is listed as 1945mm in the operator manual source.
Height to Top of ROPS (folded)
Not Published
77.6 in
Min. Turn Radius without Brakes
Not Published
2.3 m
Overall Length with 3-Point Hitch
100.4 in
106.7 in
Mahindra 1120 vs Solis S20: Quick Answers
Which has more horsepower, the Mahindra 1120 or the Solis S20?
The Mahindra 1120 leads on engine hp at 20.1 hp hp, compared to 20 hp hp for the Solis S20.
Which has more PTO horsepower, the Mahindra 1120 or the Solis S20?
The Solis S20 leads on pto hp at 20.1 hp hp, compared to 13.9 hp hp for the Mahindra 1120.
