Mahindra 1123 vs Mahindra 5100

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5100 leads 7 categories to 1. Machine pages: Mahindra 1123 and Mahindra 5100.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1123	Mahindra 5100
Engine HP (hp)	22.9 hp	▲ 45 hp
PTO HP (hp)	16.8 hp	▲ 38 hp
Weight (lb)	1,620 lb	▲ 5,390 lb
Loader Lift (lb)	794 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	771 lb	▲ 3,748 lb
Lift Height (in)	68 in	▲ 122 in
Breakout Force (lbf)	1,433 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	▲ 11.2 gpm	8.7 gpm
Travel Speed (mph)	7.3 mph	n/a

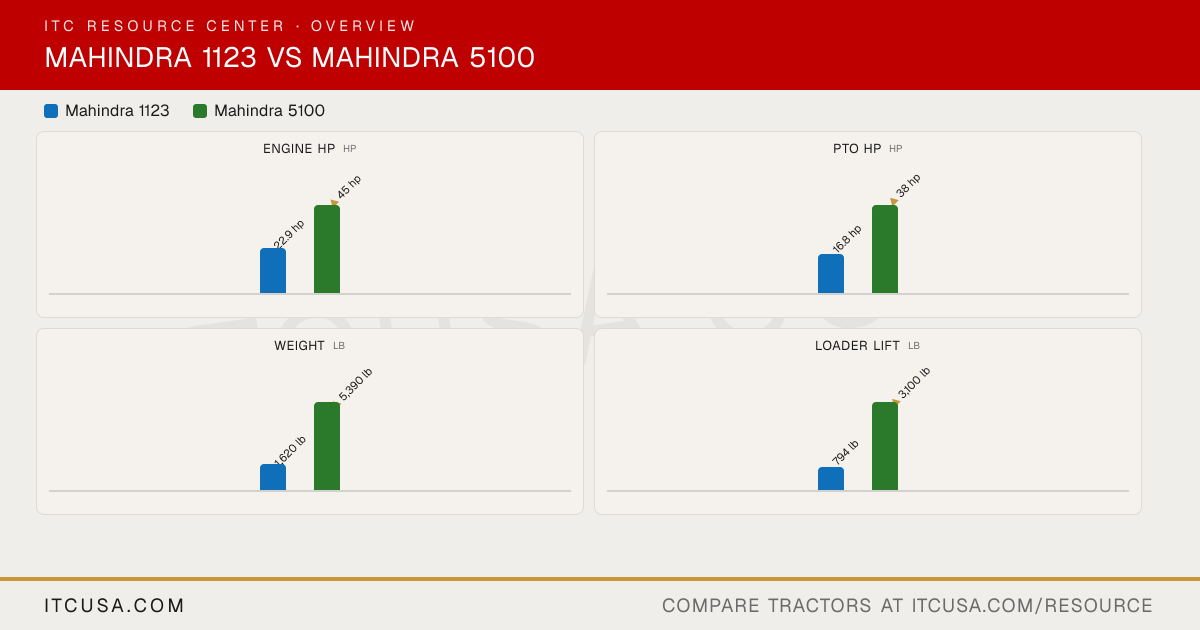

The headline numbers at a glance.

Mahindra 1123Mahindra 5100

Engine HPhp

22.9 hp

▲45 hp

PTO HPhp

16.8 hp

▲38 hp

Weightlb

1,620 lb

▲5,390 lb

Loader Liftlb

794 lb

▲3,100 lb

3-Pt Lift (24 in)lb

771 lb

▲3,748 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1123	Mahindra5100


Engine Manufacturer	Mitsubishi	Mahindra
Engine Model	MVL3E3	Not Published
Engine Type	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	5145: Four-stroke, naturally aspirated, direct injection, water-cooled diesel; 5155: Four-stroke, turbocharged, direct injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	67.2 in³	166.2 in³
Rated Engine Speed	3000 rpm	2300 rpm
Engine Power (Gross)	22.9 hp	45 hp
PTO Power	16.8 hp	38 hp
Engine Emissions Constraints	No DPF	Not Published
Cooling System Type	Water-Cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Not Published
Alternator	55 A, 12 V	55 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.6 gpm	8.71 gpm
Steering Flow	3.8 gpm	4.62 gpm
Total Hydraulic Flow	11.2 gpm	Not Published
Overall Hydraulic Pump Flow	11.2 gpm	Not Published
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	One
No. of Optional Remote Valves	Single or dual	One (optional second rear valve)

Fuel Tank Capacity	6.6 gal	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2300 rpm; 540E @ 1725 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Not Published
Category, 3-Point Hitch	CAT I with check chains	CAT I & II w/ Telescopic Stabilizers & Flex Links
Hitch Lift Capacity	Not Published	3,748 lb
Hitch Lift Capacity (at 24”)	771 lb	Not Published
Lift Control Type	Position Control	Not Published

Transmission Type	HST - 2 Range	Full synchromesh with forward/reverse synchro shuttle and constant-mesh range
No. of Speeds	Infinite	12F / 12R
Max Travel Speed (Forward)	7.3 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dual Dry with Cerametallic Lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Tilt, power-assisted steering
Brakes	Single Pedal	Fully-enclosed, 7-in Diameter, Dry Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	46.3 in	Not Published
Wheelbase	55.1 in	77.9 in
Ground Clearance	6.7 in	5145: 15.2 in; 5155: 16.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	12.8 ft (3.9 m)
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.4 in	Not Published

Tractor Weight (Base)	1,620 lb (operating weight)	5,390 lb
Weight with ROPS and Loader	2,026 lb (1,620 operating weight + 406 loader shipping weight, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Turf, Industrial	Not Published
R1 Agricultural - Front	Not Published	9.5 x 20
R1 Agricultural - Rear	Not Published	14.9 x 28
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	10.5/80x18
R4 Industrial - Rear	26x12-12	16.9 x 24

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Not Published
Loader Model	L11	5155-4L
Loader Lift Height	L11: 68 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	L11: 794 lb (at pivot pin)	5155-4L: 3,100 lb
Loader Breakout Force	L11: 1,433 lb	5155-4L: 5,200 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	5-year, 3000-hour limited powertrain warranty

Find a Mahindra dealer near you

Mahindra 1123 vs Mahindra 5100: Quick Answers

Which has more horsepower, the Mahindra 1123 or the Mahindra 5100?: The Mahindra 5100 leads on engine hp at 45 hp hp, compared to 22.9 hp hp for the Mahindra 1123.
Which has more PTO horsepower, the Mahindra 1123 or the Mahindra 5100?: The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 16.8 hp hp for the Mahindra 1123.
Which is heavier, the Mahindra 1123 or the Mahindra 5100?: The Mahindra 5100 leads on weight at 5,390 lb lb, compared to 1,620 lb lb for the Mahindra 1123.
Which has more loader lift capacity, the Mahindra 1123 or the Mahindra 5100?: The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 794 lb lb for the Mahindra 1123.
Which has more three-point hitch lift capacity, the Mahindra 1123 or the Mahindra 5100?: The Mahindra 5100 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 771 lb lb for the Mahindra 1123.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1123	Mahindra 5100
Engine HP (hp)	22.9 hp	▲ 45 hp
PTO HP (hp)	16.8 hp	▲ 38 hp
Weight (lb)	1,620 lb	▲ 5,390 lb
Loader Lift (lb)	794 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	771 lb	▲ 3,748 lb
Lift Height (in)	68 in	▲ 122 in
Breakout Force (lbf)	1,433 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	▲ 11.2 gpm	8.7 gpm
Travel Speed (mph)	7.3 mph	n/a

The headline numbers at a glance.

Mahindra 1123Mahindra 5100

Engine HPhp

22.9 hp

▲45 hp

PTO HPhp

16.8 hp

▲38 hp

Weightlb

1,620 lb

▲5,390 lb

Loader Liftlb

794 lb

▲3,100 lb

3-Pt Lift (24 in)lb

771 lb

▲3,748 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1123	Mahindra5100


Engine Manufacturer	Mitsubishi	Mahindra
Engine Model	MVL3E3	Not Published
Engine Type	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	5145: Four-stroke, naturally aspirated, direct injection, water-cooled diesel; 5155: Four-stroke, turbocharged, direct injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	67.2 in³	166.2 in³
Rated Engine Speed	3000 rpm	2300 rpm
Engine Power (Gross)	22.9 hp	45 hp
PTO Power	16.8 hp	38 hp
Engine Emissions Constraints	No DPF	Not Published
Cooling System Type	Water-Cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Not Published
Alternator	55 A, 12 V	55 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.6 gpm	8.71 gpm
Steering Flow	3.8 gpm	4.62 gpm
Total Hydraulic Flow	11.2 gpm	Not Published
Overall Hydraulic Pump Flow	11.2 gpm	Not Published
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	One
No. of Optional Remote Valves	Single or dual	One (optional second rear valve)

Fuel Tank Capacity	6.6 gal	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2300 rpm; 540E @ 1725 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Not Published
Category, 3-Point Hitch	CAT I with check chains	CAT I & II w/ Telescopic Stabilizers & Flex Links
Hitch Lift Capacity	Not Published	3,748 lb
Hitch Lift Capacity (at 24”)	771 lb	Not Published
Lift Control Type	Position Control	Not Published

Transmission Type	HST - 2 Range	Full synchromesh with forward/reverse synchro shuttle and constant-mesh range
No. of Speeds	Infinite	12F / 12R
Max Travel Speed (Forward)	7.3 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dual Dry with Cerametallic Lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Tilt, power-assisted steering
Brakes	Single Pedal	Fully-enclosed, 7-in Diameter, Dry Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	46.3 in	Not Published
Wheelbase	55.1 in	77.9 in
Ground Clearance	6.7 in	5145: 15.2 in; 5155: 16.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	12.8 ft (3.9 m)
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.4 in	Not Published

Tractor Weight (Base)	1,620 lb (operating weight)	5,390 lb
Weight with ROPS and Loader	2,026 lb (1,620 operating weight + 406 loader shipping weight, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Turf, Industrial	Not Published
R1 Agricultural - Front	Not Published	9.5 x 20
R1 Agricultural - Rear	Not Published	14.9 x 28
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	10.5/80x18
R4 Industrial - Rear	26x12-12	16.9 x 24

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Not Published
Loader Model	L11	5155-4L
Loader Lift Height	L11: 68 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	L11: 794 lb (at pivot pin)	5155-4L: 3,100 lb
Loader Breakout Force	L11: 1,433 lb	5155-4L: 5,200 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	5-year, 3000-hour limited powertrain warranty

Find a Mahindra dealer near you

Mahindra 1123 vs Mahindra 5100: Quick Answers

Which has more horsepower, the Mahindra 1123 or the Mahindra 5100?

The Mahindra 5100 leads on engine hp at 45 hp hp, compared to 22.9 hp hp for the Mahindra 1123.

Which has more PTO horsepower, the Mahindra 1123 or the Mahindra 5100?

The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 16.8 hp hp for the Mahindra 1123.

Which is heavier, the Mahindra 1123 or the Mahindra 5100?

The Mahindra 5100 leads on weight at 5,390 lb lb, compared to 1,620 lb lb for the Mahindra 1123.

Which has more loader lift capacity, the Mahindra 1123 or the Mahindra 5100?

The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 794 lb lb for the Mahindra 1123.

Which has more three-point hitch lift capacity, the Mahindra 1123 or the Mahindra 5100?

The Mahindra 5100 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 771 lb lb for the Mahindra 1123.
